Tenda TEM2010X 8-Port 2.5G Ethernet Switch with 2*10G SFP+ slots

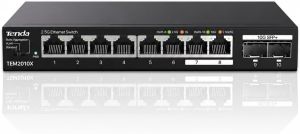

IMG 1 of 1
Our Price:
$169.50
or quickly purchase this product
Backorder
Part Number:
571665
(?) Brand:
Tenda
Manuf No:
TEM2010X
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
885397276333, TD89043, TEM2010X
Specification
MPN
TEM2010X
UPC
885397276333
ASIN
B0D48BLXQL
MTBF
100000 hours (reported)
Brand
Tenda
Color
Black
Model
TEM2010X
Notes
  • Plug-and-play (no configuration required for basic operation)
  • Provides wire-speed forwarding on all ports
  • Grounding provision present (per manufacturer documentation)
Ports
8 x 2.5G RJ45; 2 x 10G SFP+
Weight
1.56 lb
Cooling
Fanless
Category
Networking
Mounting
Desktop or wall-mountable
Warranty
Manufacturer-reported 3-year warranty (per product listings)
Base Type
Unmanaged switch
SFP+ Slots
2
Description
The Tenda TEM2010X is a compact, unmanaged 10-port switch providing high-speed multi-gigabit connectivity for SOHO and SMB environments. It features eight 2.5G RJ45 ports and two 10G SFP+ slots (backward compatible with 1G/2.5G), an 80 Gbps switching capacity, and three operating modes (Standard, VLAN isolation, and Static Link Aggregation/NAS-dedicated mode). A onebutton NAS-dedicated mode enables aggregation of ports 7 and 8 to deliver up to a 5 Gbps link for dual-port 2.5G NAS devices. The metal, fanless design supports quiet operation and better heat dissipation, and integrated port lightning protection (6 kV / VI-class) protects against surge damage. Compact and versatile, the TEM2010X supports desktop or wall mounting and is suited for upgrading WiFi 6/7 APs, 2.5G/10G NAS, gaming PCs, servers and high-resolution video workflows.
Form Factor
Compact desktop; wall-mountable; small footprint for information/weak-current boxes
Port Speeds
RJ45: 10/100/1000/2500 Mbps; SFP+: supports 1G, 2.5G and 10G (100/1000/2500/10000 Mbps)
Power Input
220 V AC, 50 Hz
Manufacturer
Tenda / Tenda Technology
Sub-Category
Switches and Hubs
Case Material
Metal
Product Title
Tenda TEM2010X 10-Port 2.5G Ethernet Switch (8x 2.5G RJ45 + 2x 10G SFP+), Unmanaged, Fanless Metal
LED Indicators
Port LEDs indicate link/activity and port speed (1/2.5/10 Gbit states); LEDs for operating mode
Layer Supported
Layer 2
Number of Ports
10
Operating Modes
  • Mode 1: Standard (default, all ports communicate)
  • Mode 2: VLAN (ports 1-6 isolated from each other but can communicate with ports 7-10)
  • Mode 3: Static Link Aggregation / NAS Dedicated Mode (aggregation group ports 7-8)
Supported Media
Twisted pair (Ethernet) and optical fiber via SFP+
Link Aggregation
Static link aggregation supported (ports 7+8 commonly used for NAS aggregation)
Power Consumption
Maximum reported 12 W
Recommended Cable
Category 5e or higher (for multi-gig links)
NAS Dedicated Mode
One-click NAS mode doubles aggregated throughput to enable up to 5 Gbps for dual-port 2.5G NAS (aggregation of ports 7 and 8)
Product Dimensions
Height: 1 in; Width: 4.1 in; Length: 7 in
Switching Capacity
80 Gbps
Included Components
  • TEM2010X switch
  • External power adapter (12 W)
  • Mounting screws
Lightning Protection
6 kV (VI-class) integrated lightning/surge protection on ports
Standards / Protocols
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3bz
  • IEEE 802.3x
  • IEEE 802.3ae
  • IEEE 802.3z
  • Flow control
Compatibility / Use Cases
Compatible with 2.5G NAS, WiFi 6/7 APs and routers/mesh, 2.5G/10G PCIe adapters, 2.5G/10G servers and gaming PCs; suitable for 4K/8K video, LAN parties, SOHO/SMB and home high-speed network upgrades
