All stock codes associated to this product
4752224004246, RBM33G

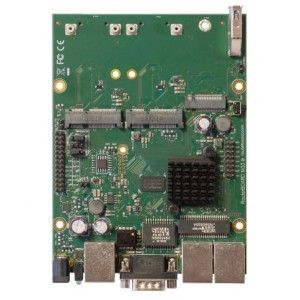

MikroTik RBM33G 800MHz 256MB miniPCIe RouterOS L4
The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as its predecessors (RB433 and RB953 series).
The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:
Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)
One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)
The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.
The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through its gigabit ethernet connector or through the DC power jack.
Specifications:
Product code: RBM33G
Architecture: MMIPS
CPU: MT7621A
CPU core count: 2
CPU nominal frequency: 880 MHz
CPU Threads count: 4
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40C to 70C
IPsec hardware acceleration: Yes
Powering:
Number of DC inputs: 2 (PoE-IN, DC jack)
DC jack input Voltage: 11-28 V
Max power consumption: 24 W
Max power consumption without attachments: 5 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 11-28 V
Ethernet:
10/100/1000 Ethernet ports: 3
Peripherals:
Number of SIM slots: 2 Modem (Mini SIM)
M.2 slots: 1
MiniPCI-e slots: 2
Serial console port: RS232
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB 3.0 type A
Max USB current (A): 1
Number of M.2 slots: 1
Certification & Approvals:
Certification: CE, EAC, ROHS
