Mikrotik wAPGR-5HacD2HnD&EC200A-EU wAP ac LTE kit with RouterOS L4 license

Our Price:

$271.05

Qty:

Add To Cart

or quickly purchase this product

Buy Now

In stock for shippingShips from our warehouse in 1-3 business days

Part Number:

573228

(?) Brand:

Mikrotik Web Site

Manuf No:

wAPGR-5HacD2HnD&EC200A-EU
wAPGR5HacD2HnD&EC200AEU

Shipping Weight:

3.1 KG (Includes product packaging)
Estimate Shipping

Details Files Images & Video

All stock codes associated to this product

4752224009241, wAPGR5HacD2HnD&EC200AEU, wAPGR-5HacD2HnD&EC200A-EU

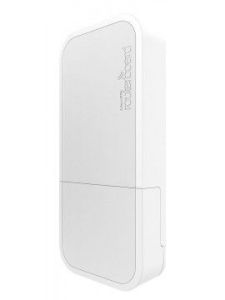

MikrotikwAP ac LTE kit (2024)

A refresh of the classic dual-band wAP LTE kit with Gigabit Ethernet this time with a brand new LTE modem that brings the PRICE DOWN and the performance UP!

wAP ac LTE kit is a tiny dual-band weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on a tight budget. Two Gigabit ports allow using the speedy built-in LTE modem as a mobile internet backup connection, in case you already have a wired ISP.

The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a serious price drop!

wAP ac LTE kit is weatherproof and can be fixed to any external wall from the inside of the case for extra security and less visible attachments. The bottom part can also be secured with a special anti- vandal screw, which can only be opened by the owner.

There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.

Specifications

Details
Product code	wAPGR-5HacD2HnD&EC200A-EU
Architecture	ARM 32bit
CPU	IPQ-4018
CPU core count	4
CPU nominal frequency	auto MHz
Switch chip model	IPQ-4018
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-30C to 60C
IPsec hardware acceleration	Yes
Suggested price	$269.00

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-57 V
Max power consumption	12 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	18-57 V

Mobile

Details
2G Category	Class12
2G bands	8 (900MHz) / 3 (1800MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands	5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands	40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
TAC	86314105

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	IPQ-4018
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	2.5
Wireless 5 GHz chip model	IPQ-4018
Wireless 5 GHz generation	Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports	2

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
MiniPCI-e slots	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Certification & Approvals

Details
Certification	CE, E-MARK, EAC, ROHS
IP	54

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	24	-95
54MBit/s	20	-78
MCS0	24	-95
MCS7	19	-73
MCS9	17	-68

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Mikrotik) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
