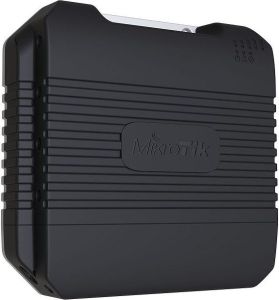

MikroTik RBLtAP-2HnDLtAP3 Sim Card Heavy-duty AP
Introducing LtAP
Its high power 2.4 GHz 802.11b/g/n wireless capability. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options DC jack, POE-in and automotive.
The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C to +70 C. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!
The unit comes with 2 miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE.
LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.
The new LtAP is more than an access point it is what you need it to be wherever you need it to be.
Specifications:
Product code: RBLtAP-2HnD
Architecture: MMIPS
CPU: MT7621A
CPU core count: 2
CPU nominal frequency: 880 MHz
CPU Threads count: 4
RouterOS licence: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40C to 70C
IPsec hardware acceleration: Yes
Powering:
Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage: 12-30 V
Automotive input Voltage: 12-27 V
Max power consumption: 24 W
Max power consumption without attachments: 12 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 12-30 V
Mobile:
***ADD EC-25AU card for LTE***
Wireless specifications:
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: AR9382
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet:
10/100/1000 Ethernet ports: 1
Peripherals:
Number of SIM slots: 3 Modem (Mini SIM)
MiniPCI-e slots: 2
Serial console port: RS232
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Other:
PCB temperature monitor: Yes
Voltage Monitor: Yes
GNSS standards: GPS
Certification & Approvals:
Certification: CE, FCC, IC, E-MARK, EAC, ROHS
IP: IP54
Wireless specifications:
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
