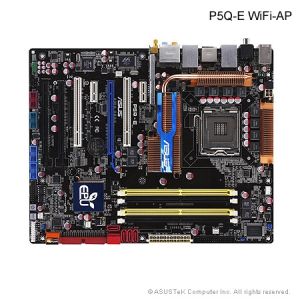

P5Q-E/WiFi-AP
The best computing & power saving combined platform!
  • Intel LGA775 Platform
  • Intel P45 chipset
  • ASUS 8-phase Power Design
  • Dual-channel DDR2 1200/1066/800/667 MHz
  • 100% High-quality Japan-made Conductive Polymer Capacitors! (5000hrs VRM)
  • ASUS EPU-6 Engine
  • ASUS Express Gate
  • ASUS Drive Xpert
  • WiFi-AP Solo
CPU, Chipset and Graphics features
LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. It also can support Intel 45nm Multi-Core CPU. With new Intel Core microarchitecture technology and 1600/1333/1066/800MHz FSB, Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.

PCIe 2.0
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.

ATI CrossFireX Technology
ATIs CrossFireX boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATIs Catalyst Control Center to rule your CrossFireX system.

Memory Features
Dual- Channel DDR2 1200
The motherboard supports DDR2 memory that features data transfer rates of 1200/1066/800/667 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR2 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 19.2GB/s.
ASUS Exclusive Features

ASUS 8-Phase Power Design
Longer Life, & Higher Efficiency!
With power efficiency so important to operating temperatures, ASUS 8-phase VRM design leads the industry with its 96% power efficiency. High quality power components such as low RDS (on) MOSFETs for minimum switching loss & lower temperatures, Ferrite core chokes with lower hysteresis loss, and high quality Japanese-made conductive polymer capacitors all add up to ensure longer component life and lower power loss - creating more energy efficiency.

ASUS Express Gate
5 Secs Bootup to online
Taking only 5 seconds to go online from bootup, Express Gate is the one-stop gateway to instant fun! Its a unique motherboard built-in OS. You can utilize the most popular Instant Messengers (IM) like MSN, Skype, Google talk, QQ, and Yahoo! Messenger to keep in touch with friends, or quickly check on the weather and e-mails just before leaving your house. Whats more, the user-friendly picture manager lets you view your pictures without entering Windows at anytime!

* The actual boot time is subject to hardware configurations and product models

100% High-quality Japan-made Conductive Polymer Capacitors! (5000hrs VRM)
This motherboard uses all high-quality Japan-made conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
ASUS Power Saving Solution

ASUS EPU-6 Engine
System Level Energy Saving
The new ASUS EPU - the worlds first power saving engine, has been upgraded to a new 6 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card, memory, chipset, hard drives and CPU cooler/system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money.

AI Nap
Minimize noise and power consumption when temporarily away!
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while youre sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
ASUS Quiet Thermal Solution
Up to 20C(36F) Cooler - Stack Cool 2
Effective Fanless Heat Dissipation at 0dB
Stack Cool 2 is a fanless cooling solution offered exclusively by ASUS. It effectively and noiselessly transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation - making temperatures cooler by up to 20C.

Aesthetic Heat- pipe
Lowers Temperatures by up to 10C
The aesthetic heat- pipe design effectively directs the heat generated by the chipsets to the heatsink near the back I/O ports - where it can be carried away by existing airflows from the CPU or a bundled optional fan. This innovative and groundbreaking fanless heat pipe design effectively lowers temperatures by up to 10C without having lifetime problems that a normal chipset fan has. Furthermore, it provides options for users to install side-flow fans or a passive cooler. This Heat Pipe design is the most reliable fanless thermal solution to date.

Fan Xpert
Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.

ASUS EZ DIY
Drive Xpert
Plug & Safe!
Without drivers or BIOS setups, the ASUS exclusive Drive Xpert is ideal for anyone who needs to secure data on their hard drives or enhance hard drive performances without the hassles of complicated configurations. With Drive Xperts user-friendly graphical user interface, users can easily arrange hard drive backups or enhance their hard drive transfer rates - making sure that data is looked after every moment, every day.

DieHard BIOS
BIOS Never Die
The ASUS Diehard BIOS consists of two BIOS chips, a main BIOS and a backup BIOS. The ASUS Diehard BIOS can restore corrupted main BIOS data from the backup BIOS automatically. The technology saves users the hassle of recovering the BIOS file or buying a replacement BIOS chip.

Q- Shield
Easy and Comfortable Installations
The specially designed ASUS Q-Shield does without the usual "fingers" - making it convenient and easy to install. With better electric conductivity, it ideally protects your motherboard against static electricity and shields it against Electronic Magnetic Interference (EMI).

Q-Connector
Make connection quick and accurate!
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.

EZ-Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.

ASUS Crystal Sound
AI Audio 2
Unique Home Theater Technology on Board
AI Audio 2 creates a virtual center channel that expands the overall sound field without introducing a picket fencing effect. Preserving the dialogue or solo performances with downmixing from multichannels will allow you to experience true- to-life high quality audio.
Noise Filtering
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
Other Innovative Features
MyLogo3
Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
Industry Standard

SATA on the Go
The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.


Dual Gigabit LAN
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.

ASUS WiFi-AP Solo
Easily Connect and Share Data Wirelessly
WiFi AP Solo allows a new level of versatility for your PC, enabling it to create a complete wireless home network in either AP or wireless client mode. Users will be able to play LAN games, connect to the Internet, access and share printers, and use Skype from anywhere within range. WiFi-AP Solo can provide these functions even when the PC is in sleep mode, so users can use Skype as a true replacement for tradition long distance telephone service. WiFi- AP Solo is an on-board feature, which means that user will save the extra WiFi AP cost.

TPM
Trusted Platform Module (TPM) system, which can securely store keys( for encryption/ decryption), digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.


High Definition Audio
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.


S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.


RoHS

GreenASUS
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.





Specifications
CPU
Intel Socket 775 Core2 Quad/Core2 Extreme/Core2 Duo/Pentium D/Celeron dual-core/Celeron processors Compatible with Intel 05B/05A/06 processors
Support Intel 45nm CPU
Chipset
Intel P45 /ICH10R with Intel Fast Memory Access (FMA) support
Front Side Bus
1600/1333/1066/800 MHz
Memory
4 x DIMM, Max. 16 GB, DDR2 1200/1066/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists)
**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended
Expansion Slots
2 x PCIe 2.0 x16 slots, support ATI CrossFireX technology at x8 link (PCIe x16_1 blue, PCIe x16_2 black*)
1 x PCIe x16 slot at max. x4 link (black)
2 x PCIe x1 slots
2 x PCI
*PCI Express x16_2 slot (black, at max. x8 link)
VGA
Support ATI CrossFireX technology; up to Quad CrossFireX
Storage
Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology with Support RAID 0,1,5,10
Marvell 88SE6121
1 x UltraDMA 133/100/66 for up to 2 PATA devices
1 x External SATA 3Gb/s port (SATA On-the-Go)
Silicon Image Sil5723 (Drive Xpert technology)
2 x SATA 3Gb/s
Supports EZ Backup and Super Speed functions
*Drive Xpert function is available only when the hard disk drives are set as data drives
LAN
Dual Gigabit LAN controllers
Marvell 88E8056/88E8001 Gigabit LAN controller featuring AI NET2, Teaming and Redundant
Wireless LAN
ASUS WiFi-AP Solo
54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b
Software Access Point mode
Station mode: Infrastruceure mode and Ad-Hoc mode
Audio
ADI AD2000B 8 -Channel High Definition Audio CODEC
- Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Coaxial/Optical S/PDIF Out ports at back I/O
- ASUS Noise-Filtering
IEEE 1394
LSIL-FW3227 controller supports 2 x 1394a ports ports (one at mid-board; one at back panel)
USB
10 USB 2.0 ports (4 ports at mid-board; 6 ports at back panel)
ASUS Unique Features
ASUS Exclusive Features:
- ASUS 8-Phase Power Design
- ASUS Express Gate
ASUS Power Saving Solutions:
- ASUS EPU-6 Engine
- AI Nap
ASUS Quiet Thermal Solutions:
- ASUS Fanless Design: heat pipe solution
- ASUS Fanless Design: Stack Cool 2
- ASUS Fan Xpert
ASUS Crystal Sound:
- AI Audio 2
- ASUS Noise Filtering
ASUS EZ DIY:
- ASUS Drive Xpert
- ASUS DieHard BIOS
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS EZ Flash 2
- AI Direct Link
- Onboard Switch
Overclocking Features
AI Booster
Precision Tweaker 2:
- vCore: Adjustable CPU voltage at 0.00625V increment
- vDIMM: 64-step DRAM voltage control
- vChipset (NB): 56-step Chipset voltage control
- vCPUPLL: 64-step reference voltage control
- vFSB Termination: 40-step voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R. (CPU Parameter Recall)
Special Features
ASUS MyLogo 3

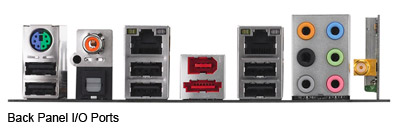

Back Panel I/O Ports
1 x PS/2 Mouse
1 x External SATA
1 x IEEE 1394a
2 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
1 x Optical + 1 x Coaxial S/PDIF Out port
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors (red)
2 x Drive Xpert SATA connectors (orange)
1 x CPU Fan connector
3 x Chassis Fan connectors
1 x Power Fan connector
1 x IEEE 1394a connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
8-pin ATX 12V Power connector
System Panel (Q-Connector)
1 x TPM connector
Power on Switch
Reset Switch
BIOS
16 Mb Flash ROM
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4
Manageability
WOL by PME, WOR by PME, WOR by Ring, Chasis Intrusion, PXE
Accessories
1 x UltraDMA 133/100/66 cable
4 x Serial ATA cables
1 x 2-port Serial ATA power cable
1 x Q-Shield
1 x User's manual
1 x WiFi-AP Solo user guide
1 x WiFi-AP antenna
1 x 3 in 1 Q-connector (Retail version only)
* Note: The floppy disk drive cable is purchased separately
Support Disc
Drivers
ASUS Express Gate
ASUS PC Probe II
ASUS Update
ASUS AI Suite
Anti-virus software (OEM version)
Image-Editing Suite
Form Factor
ATX Form Factor
12" x9.6" ( 30.5 cm x 24.4 cm )

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
