Please be aware that due to the large size of many products in this cateogry (Commercial Displays) additional freight may be required after completing your order. This covers various aspects of delivery - tailgates, if you do not have a forklift attract an additional charge. Or it can simply be that our freight system for extremely large products does not cope. Where possible we do absorb these additional fees but it varies order to order as well as upon yur delivery location.
All stock codes associated to this product
LH40MRPLBF/XY, SAM5407
The Samsung 40" 400UX-2 LCD video wall display features advanced cooling technologies that allow reliable operation 24 hours a day, 7 days a week. WIth thin 11mm bezels (.43"), you can build virtually seamless video walls up to 5 x 5. The 400UX-2 also has up to 700 cd/m max brightness, 1080p resolution, and is compatible with our MID40 interlocking assembly kits.
Advanced Cooling, 24/7 Operation
Samsung UX-2 display features advanced cooling technologies that allow reliable operation 24 hours a day, 7 days a week.

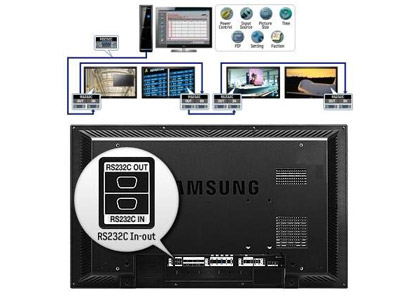

RS232C In-Out
RS232C, a standard of serial communication, is used for the communication between PC and displays. A Multiple Display Control (MDC) allows various displays to be easily and simultaneously operated by a PC, which is possible with the RS232C function.

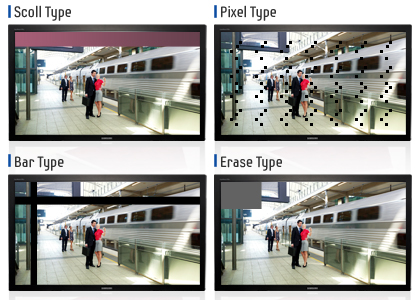

4 Anti-Image Retension Technologies
Four types of anti-image retension can be set to be activated automatically throughout the day, contributing to longer panel life and greater reliability.
Placement in Bright Areas
Up to 700 max cd/m for visibility in bright light.

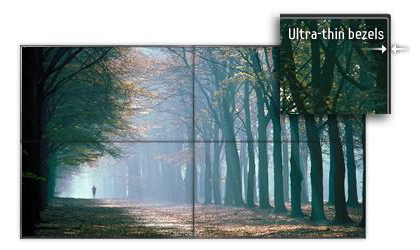

11mm Bezels for Seamless Video Walls
With an amazingly slim bezel, the Samsung 400UX-2 LFD keeps the focus on the image and not the frame around it. The thin, 11mm bezels (.43") mean virtually sealmess video walls.

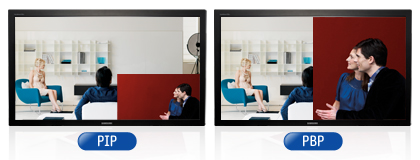

Work and Play at the Same Time
PIP (Picture In Picture) / PBP (Picture By Picture) Multi tasking function allows you to enjoy an image from two different sources at once.

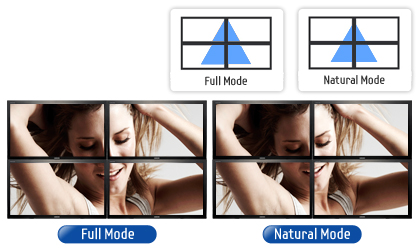

Impossible-to-Ignore Video Walls
Create impossible-to-ignore video walls up to 5 monitors wide by 5 monitors high. Natural mode correction compensates for the bezel, for distortion-free displays.
Pivot Technology
Flexible Pivot Function that freely rotates around 90degrees, allowing you to easily View a vertical image or text without mouse scrolling. This function gives you more flexibility, supporting presentations in portrait mode.
Display
Screen Size
Screen Size
LCD monitors are offered in a variety of sizes
40"
Brightness
Brightness
The amount of light emitting from a display or projection device. The brightness of projector is measured by ANSI lumens.
700 cd/m
Contrast Ratio
Contrast Ratio
The screen images will become sharper as the contrast level rises. .
3000:1 (DC 30000:1)
Resolution
Resolution
Screen resolution is measured in pixels, or picture elements.
1920 x 1080
Response time
Response time
The amount of time it takes for a pixel on an LCD panel to go from inactive (black) to active (white) and back to inactive (black) again.
8
Viewing Angle (Horizontal/Vertical)
178 / 178
Color Support
16.7 Mil.
Signal input
Video Signal
Video Signal
Input signal that Monitor can get from devices such as PC, Audio, AV devices
Analog RGB, DVI -D, Composite, component Video, HDMI, CVBS
Sync. Signal
Sync. Signal
Type of sync that a monitor can support. Sync is seperated in both Horizontal and Vertical.
Separate H/V,Composite, SOG
Connector
Connector
D-Sub is a connector whose male end has a "D" shaped raised shield that protects the connecting pins. A D-Sub connector is usually a 15-pin or 9-pin connector with each pin corresponding to a different wire or signal within the cable. DVI-D is a digital connector that accepts DVI signal input from a computer. DVI-I is a digital connector on the monitor that accepts both DVI and analog signal input from a computer. A DVI-I connector provides interoperability with widespread current analog systems and the increasing number of computers with DVI compliant digital output.
D-Sub,DVI-D, CVBS, BNC(Component, PC), HDMI
Power
Power Consumption
Power Consumption
The electrical energy over time that must be supplied to an electrical appliance to maintain its operation.
230 W
Stand By Power (DPMS)
Stand By Power (DPMS)
(Display Power Management Signaling) An association that promotes the standardization of signals transmitted by computers in order to achieve less power expenditure by monitors.
< 2 W
Type
Internal
Features
Plug & Play
Plug & Play
Trouble-free installation of components to a computer. Samsung monitors support DDC1/2B or DDC 2B for Plug & Play compatibility.
DDC 2B
Mac compatibility
Yes
Multimedia Speakers
Multimedia Speakers
Sometimes Samsung offers optional speaker.
10W*2 (Built-in)
Wall-Mount
Mounting Kit Available (WMN - 5770D)
Cabinet Color
Black
Accessory
Quick Setup Guide, Warranty Card, User's Guide, Power Cord, Remote Control, Batteries
Special Features
Special Features
Unique sales point of product. It can be design, technology or spec
Lamp Error Detection, Temperature Sensor, Built-in Fan, IR In/Out, Video Wall Processor, MID Interlocking Kit Compatible, RS-232C, PIP, Safety Lock
Dimension
Product Dimension(With stand, WxHxD)
Product Dimension(With stand, WxHxD)
Product dimension with stand (Width x Height x Depth). Measured in milimeter
36" x 23" x 12.2"
Product Dimension (Without Stand, WxHxD)
36" x 20.7" x 4.6"
Shipment Dimension (WxHxD)
40" x 25.7" x 12.2"
Weight
Product Weight
Product Weight
The weight of product without packing. Measured in kilogram
46.6 lbs.
Shipment Weight
Shipment Weight
The weight of product with packing. Measured in kilogram
55.4 lbs.
Stand
Type
Stand Available (STN - L3257D)
