All stock codes associated to this product
LH40LBPLBC/XY, 1319796, 8808987530471
400EX
Samsung EX-series professional LCD displays (400EX, 400EXn, 460EX, 460EXn, 550EX, 550EXn) are an incredible 1.6" thin. Theyre the thinnest, lightest 40", 46" and 55" professional LCD displays from Samsung, thanks to LED backlight technology. LED is also more energy-efficient, consuming 30 % - 50 % less energy than a similarly sized CCFL backlight display. A 120 Hz panel refresh rate enables sharp scrolling type, while 10,000:1 dynamic contrast ratio delivers deeper, more dramatic dark tones and brighter, more striking light tones.

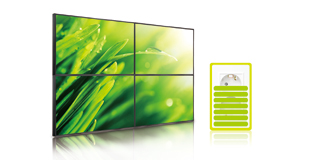

Eco-Friendly Display with LED Backlight
The Samsung EX Series LED LCD displays reduce energy consumption from 30 - 50% (depending on screen size) compared to conventional CCFL backlit LCD displays. Samsung's state-of-the-art LED BLU (Back Light Unit) technology has facilitated this breakthrough in Green Technology Solutions by eliminating mercury, reducing energy consumption and making it easier to recycle.

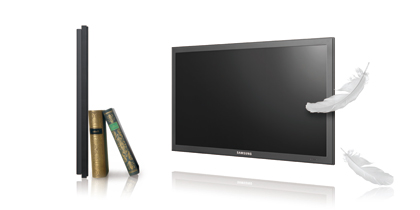

Ultra-Slim, Ultra-Light
The ultra-slim, ultra-light design of the Samsung LCD LED commercial displays provide a new era of elegance and efficiency. The 400EX has an ultra-slim style that effortlessly draws your eyes to the screen and its ultra-slim design also enables easier installation and maintenance. It's a high-impact display that saves space with style.

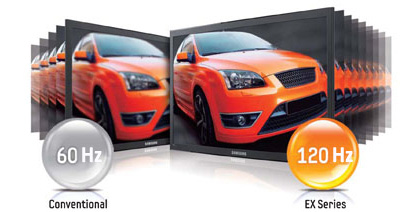

High Speed Video with 120 Hz
Operating at twice the speed of conventional 60 Hz displays, our 120 Hz displays are ideal for high-speed video and scrolling text, to deliver advertising and information with complete clarity and seamless speed.

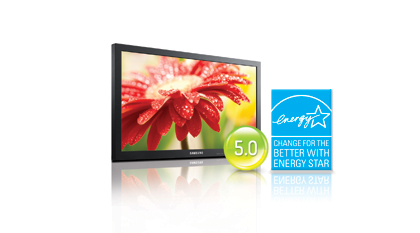

Efficient and Reliable
Samsung's revolutionary EX Series LED LCD Displays are easier for integrators and customers to install with its 1.6" ultra-slim design and reduced weight. The EX Series is Energy Star 5.0 compliant (excluding embedded PC models) and conforms to the ADA standards for wall mounting.

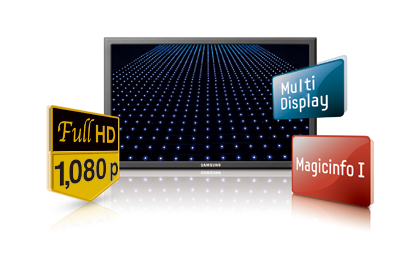

Full HD Images
The 400EX is designed to be adaptable to any public display usage. Featuring Full HD images, expanded digital connectivity and multi-display control, it allows you to create a digital display environment that is always clear and displaying the highest resolution images.
Total Cost of Ownership
The EX Series LED LCD Displays are ultra-slim and lightweight. Samsung's LED edge-lit backlight technology allows for an ultra-slim 1.6" chasis depth (including embedded PC), providing significant weight savings of 35 - 40% (depending on screen size) compared to conventional CCFL LCD displays.
Specifications
| Panel |
Diagonal Size |
40" |
| Type |
120 Hz LED BLU |
Resolution
Resolution
Screen resolution is measured in pixels, or picture elements.
|
1,920 x 1,080 (16:9) |
| Pixel Pitch(mm) |
0.46125 (H) x 0.15375 (V) |
| Active Display Area(mm) |
885.6 (H) x 498.157 (V) |
| Brightness(Typ.) |
450 cd / m2 |
Contrast Ratio
Contrast Ratio
The screen images will become sharper as the contrast level rises. .
|
6,000:1 |
| Viewing Angle(H/V) |
178 / 178 |
| Response Time(G-to-G) |
6 ms |
| Display Colors |
10 bit Dithering - 1.07 Billion |
| Color Gamut |
80 % |
| Display |
Dynamic C/R |
10,000:1 |
| H-Scanning Frequency |
30 kHz ~ 81 kHz |
| V-Scanning Frequency |
56 Hz ~ 85 Hz |
| Maximum Pixel Frequency |
148.5 MHz |
| Connectivity |
Input |
RGB |
Analog D - SUB |
| Video |
HDMI |
| Audio |
Stereo mini Jack |
| Output |
RGB |
DVI - D (Loop - out) |
| External Control |
RS232C (in / out), LAN RJ45 |
| Power |
Type |
Internal |
| Power Supply |
AC 100 - 240 V ~ (+ / - 10 %), 50 / 60 Hz |
| Power Consumption |
On Mode |
140 W (max) / 120 W (typ) |
| Sleep Mode |
less than 2 W |
| Off Mode |
less than 1 W |

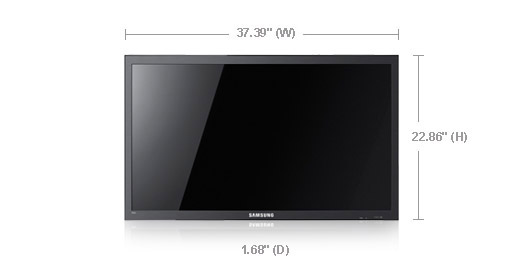

| Mechanical Spec |
Dimension (mm) |
Set |
37.39" x 22.86" x 1.68" |
| Package |
41.3" x 27.2" x 6.7" |
| Weight (kg) |
Set |
26.46 lbs |
| Package |
35.5 lbs |
| VESA Mount |
400 x 400 mm |
| Stand Type |
Foot Stand (optional) |
| Operation |
Operating Temperature |
0 C ~ 40 C |
| Humidity |
10 ~ 80 % |
| Features |
Special |
Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C / RJ45 MDC, Built in Speaker (10 W + 10 W), Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Button Lock, Digital Daisy ChainMagicInfo Pro, i Advanced, Windows XP embedded |
| Certification |
Safety |
UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) : IEC60950-1 SASO (Saudi Arabia) : IEC60950-1 |
| EMC |
FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea) : KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC (China) : GB 9254-2008, GB 17625.1 - 2003 |
| Environment |
ENERGY STAR 5.0 (USA) |
| Accessories |
Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional |
Stand |
STN-LE4055D (stand bar) + STN-L3257D |
| Mount |
WMN4270SD WMN1000BD |
| Specialty |
CML500D (ceiling mount) |
