Samsung EX-series professional LCD displays (400EX, 400EXn, 460EX, 460EXn, 550EX, 550EXn) are an incredible 1.6" thin. Theyre the thinnest, lightest 40", 46" and 55" professional LCD displays from Samsung, thanks to LED backlight technology. LED is also more energy-efficient, consuming 30% - 50% less energy than a similarly sized CCFL backlight display. A 120 Hz panel refresh rate enables sharp scrolling type, while 10,000:1 dynamic contrast ratio delivers deeper, more dramatic dark tones and brighter, more striking light tones. And the 400EXn features a built-in PC and exclusive MagicInfo Pro and MagicInfo i software to provide a web-based server, allowing you to access, control and upload content to your display from anywhere.

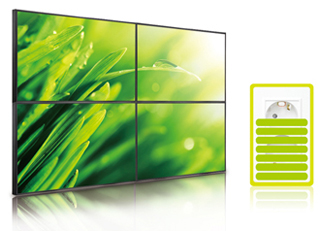

Eco-Friendly Display with LED Backlight
The Samsung EX Series LED LCD displays reduce energy consumption from 30 - 50% (depending on screen size) compared to conventional CCFL backlit LCD displays. Samsung's state-of-the-art LED BLU (Back Light Unit) technology has facilitated this breakthrough in Green Technology Solutions by eliminating mercury, reducing energy consumption and making it easier to recycle.

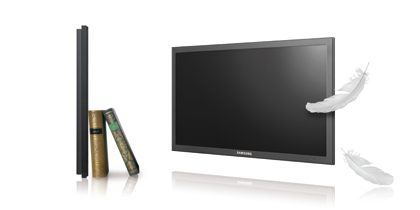

Ultra-Slim, Ultra-Light
The ultra-slim, ultra-light design of the Samsung LCD LED commercial displays provide a new era of elegance and efficiency. The 400EXn has an ultra-slim style that effortlessly draws your eyes to the screen and its ultra-light design enables easier installation and maintenance. Its a high-impact display that saves space with style.
High Speed Video with 120 Hz
Operating at twice the speed of conventional 60 Hz displays, our 120 Hz displays are ideal for high-speed video and scrolling text, delivering advertising and information with complete clarity and seamless speed.
Efficient and Reliable
Samsung's revolutionary EX Series LED LCD Displays are easier for integrators and customers to install with its 1.6" ultra-slim design and reduced weight. The EX Series is Energy Star 5.0 compliant (excluding embedded PC models) and conforms to the ADA standards for wall mounting.
Exclusive MagicInfo Pro and MagicInfo-i Software
The 400EXn features an integrated PC and Samsung's MagicInfo Pro and optional MagicInfo-i software for a web-based server. This gives you easy content management from anywhere, all contained in the ultra-slim 1.6" design of the 400EXn display.
Full HD Images
The 400EXn is designed to be adaptable to any public display usage. Featuring Full HD images, expanded digital connectivity and multi-display control, it allows you to create a digital display environment that is always clear and displaying the highest resolution images.
Total Cost of Ownership
The EX Series LED LCD Displays are ultra-slim and lightweight. Samsung's LED edge-lit backlight technology allows for an ultra-slim 1.6" chasis depth (including embedded PC), providing significant weight savings of 35 - 40% (depending on screen size) compared to conventional CCFL LCD displays.

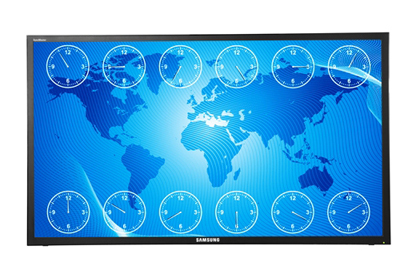

Clear Picture Quality
Samsungs LED backlight technology provides clear picture quality with high contrast levels and 80% color gamut, providing clear images and improved color saturation.
| Panel
| Diagonal Size
| 40" |
| Type
| 120 Hz LED BLU |
Resolution
Resolution
Screen resolution is measured in pixels, or picture elements.
| 1,920 x 1,080 (16:9) |
| Pixel Pitch(mm)
| 0.46125 (H) x 0.15375 (V) |
| Active Display Area(mm)
| 885.6 (H) x 498.157 (V) |
| Brightness(Typ.)
| 450 cd/m² |
Contrast Ratio
Contrast Ratio
The screen images will become sharper as the contrast level rises. .
| 6,000:1 |
| Viewing Angle(H/V)
| 178° / 178° |
| Response Time(G-to-G)
| 6 ms |
| Display Colors
| 10 bit Dithering ~ 1.07 Billion |
| Color Gamut
| 80% |
| Display
| Dynamic C/R
| 10,000:1 |
| H-Scanning Frequency
| 30 kHz ~ 81 kHz |
| V-Scanning Frequency
| 56 Hz ~ 85 Hz |
| Maximum Pixel Frequency
| 148.5 MHz |
| Connectivity
| Input
| RGB
| Analog D-SUB |
| Video
| HDMI |
| Audio
| Stereo mini Jack |
| Output
| RGB
| DVI-D (Loop-out) |
| External Control
| RS232C (in / out), RJ45 |
| Power
| Type
| Internal |
| Power Supply
| AC 100 ~ 240 V ~ (+ / - 10%), 50 / 60 Hz |
| Power Consumption
| On Mode
| 200 W (max) / 150 W (typ) |
| Sleep Mode
| Less than 5 W |
| Off Mode
| Less than 5 W |
| Mechanical Spec

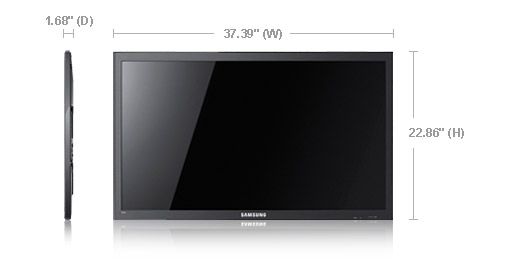

| Dimension (mm)
| Set
| 37.39" x 22.86" x 1.68" |
| Weight (kg)
| Set
| 28.0 lbs |
| VESA Mount
| 400 x 400 mm |
| Stand Type
| Foot Stand (optional) |
| Media Player Option Type
| Internal |
| Operation
| Operating Temperature
| 50° F ~ 104° F |
| Humidity
| 10 ~ 80% non-condensing |
| Features
| Special
| Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C / RJ45 MDC, Built in Speaker (10 W + 10 W), Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Button Lock, Digital Daisy Chain |
| Certification
| Safety
| UL (USA): UL 60950-1 CSA (Canada): CSA C22.2 No. 60950-1 TUV (Germany): EN60950-1 NEMKO (Norway): EN60950-1 KC (Korea): K60950-1 CCC (China): GB 4943-2001 PSB (Singapore): IEC60950-1 GOST (Russia): IEC60950-1, EN55022 SIQ (Slovenia): IEC60950-1, EN55022 PCBC (Poland): IEC60590-1, EN55022 NOM (Mexico): NOM-019-SCFI-1993 IRAM (Argentina): IEC60950-1 SASO (Saudi Arabia): IEC60950-1 |
| EMC
| FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24 BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC (China): GB 9254-2008, GB 17625.1-2003 |
| Accessories
| Included
| Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Remote Controller, Batteries |
| Optional
| Stand
| STN-LE4055D (stand bar) +STN-L3257D |
| Mount
| WMN4270SD WMN1000BD |
| Specialty
| CML500D (ceiling mount) |
| Media Player
| CPU
| Athlon II Dual-Core 530 (2.3 GHz) |
| N/B
| AMD RS780E |
| S/B
| AMD SB710 |
| GPU
| AMD RS780E (IGP) - ATI HD3300 |
| FDM/HDD
| HDD 80 GB |
| Memory
| SEC DDR2 1 GB |
| Ethernet
| Marvell 88E8055 Gigabit LAN |
| Connectivity
| USB
| 3 EA |
| Output
| D-SUB (RGB OUT) |
| Others
| LAN RJ 45 |
