All stock codes associated to this product
PH63KRFLBF/XY, 1319757
P63FP-2
63" Large Format Plasma Displays
- Matrix Video Wall
- VESA Wall Mount Standard
- RS232C In-Out
- Circuit Design with FAN
Get everything you want in a display. The Samsung P63FP 63" plasma display gives you full connectivity options, for full video wall content flexibility. Full HD 1080p resolution and integrated speakers give you crystal-clear motion videos with sound. For even greater reliability, the P63FP includes 6-way anti burn-in protection. And 1,500 nits brightness and 40,000:1 contrast ratio mean messages are clear and bright. Performance with flexibility. The Samsung P63FP 63" plasma display. Stand sold separately.
Matrix Video Wall
Matrix Display for Video Wall
Built-In Image Enlarging Processor supports various video wall formats. If user wants to install Video Wall as these formats, user doesn't need any other Video Controller Device. Also if viewer uses video & PC Interface, additional Input Signal Distributor is not necessary.

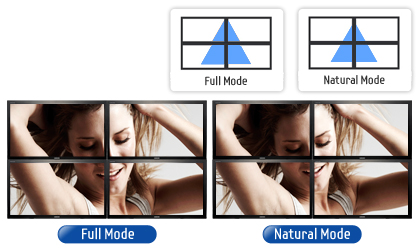

2 Way Multi Display format
In the case of Multi Display video wall, a major issue is how to display naturally without picture distortion. So Samsung's New Plasma Monitor supports two types of video wall formats. The first is Full mode which displays the picture regardless of cabinet bezel. The second, Natural Mode, considers bezel's depth when displaying picture.

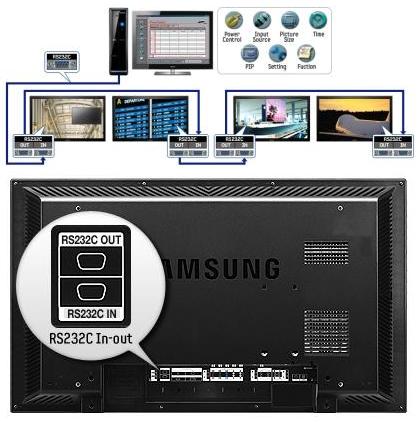

RS232C In-Out
RS232C, a standard of serial communication, is used for the communication between PC and displays. Therefore, A Multiple Display Control (MDC), helping various displays to be easily and simultaneously operated on PC, is possible with RS232C function.
Save money, save space with built-in speakers.
Maximize your impact with a great picture and crisp audio. Your message will be heard loud and clear with built-in speakers. Youll save money when you eliminate the cost of purchasing separate speakers, and youll save valuable space as well.
A smart sensor that automatically saves energy.
Stop worrying about the lighting conditions affecting your display. This Samsung LFD adjusts its brightness levels as ambient light changes so your images are always crystal-clear. And while it compensates for low-light and high-light environments, youll save energy and stay eco-friendly.

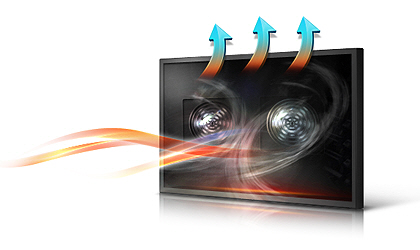

A cool way to ensure longevity.
Enjoy continuous, reliable operation thanks to a built-in fan control. Housed inside of the LFD, the fan guarantees you can count on it for years to come without worrying about it overheating. You can even control the fan with an easy-to-use on screen display.

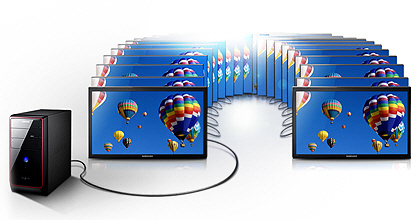

Stay in the loop with DVI-out.
Enjoy superior picture quality with a DVI-out interface that lets you share content between multiple LFDs thanks to an easier-to-connect video matrix. LFDs used to have to be connected to the PC individually, but digital loop out allows you to connect them without connecting to a PC. Better yet, the digital loop out produces a single image without any loss of quality, and theres no need for a separate video signal distributor. Its easy to install and the most cost-effective way to connect multiple displays.
Choose the right view, landscape or portrait.
This Samsung LFD gives you the flexibility to display your image vertically or horizontally-whatever the situation calls for. With a pivot function that rotates the screen 90degrees and the freedom to display presentations in portrait mode or advertisements in landscape mode, this makes for one versatile monitor.
Twice the information, double the impact.
Whether your presentation requires a picture-in-picture configuration or a picture-by-picture arrangement, this Samsung LFD makes it possible. When one image just isnt enough, two video signals can be viewed simultaneously for maximum impact.
A screen that wont shatter your digital dreams.
When a monitor is displayed in public areas, things can happen. Thats why our LFD offers a specially-designed, optional protection glass. Scratch resistant and shatter-proof, it shields the panels surface from any damage so you can use it for years to come.
Specifications
| |
| Panel |
Diagonal Size |
63" |
| Type |
PLASMA DISPLAY |
| Resolution |
WXGA 1,920 x 1,080 (16:9) |
| Pixel Pitch(mm) |
0.726 (H) x 0.726 (V) |
| Active Display Area(mm) |
1,393.92 (H) x 784.08 (H) |
| Brightness(Typ.) |
1,500cd/m |
| Contrast Ratio |
40,000:1 |
| Viewing Angle(H/V) |
Over 160/160 |
| Display Colors |
16.77 million colors (10Bits) |
| Display |
Dynamic C/R |
40,000:1 |
| H-Scanning Frequency |
30 - 81kHz |
| V-Scanning Frequency |
56 - 75Hz |
| Maximum Pixel Frequency |
165MHz |
| Connectivity |
Input |
RGB |
Analog D-SUB, DVI-D |
| Video |
CVBS, Component, BNC, HDMI |
| Audio |
RCA (L / R) , Stereo mini Jack |
| Output |
RGB |
DVI-D (Loop-out) |
| Video |
BNC |
| Audio |
Stereo mini Jack |
| External Control |
RS232C (in / out) |
| Power |
Type |
Internal |
| Power Supply |
AC 100 - 240V - (+ / - 10%), 50/60Hz |
| Power Consumption |
On Mode |
495W (max) / 450W (typ) |
| Sleep Mode |
less than 2W |
| Off Mode |
less than 1W |
| Mechanical Spec |
Dimension (mm) |
Set |
1,503.5 x 99.4 x 894.0 |
| Package |
1,640 x 420 x 1,030 |
| Weight (kg) |
Set |
52 |
| Package |
61 |
| VESA Mount |
676 x 407mm |
| Protection Glass |
Yes |
| Stand Type |
Foot Stand (optional) |
| Operation |
Operating Temperature |
0C - 40C |
| Humidity |
10 - 80% |
| Features |
Key |
Plasma Display |
| Special |
Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (10W + 10W), Plug and Play (DDC2B, DDC / CI), Video Wall (5 x 5), Pivot Display, Button Lock, Digital Daisy Chain |
| Certification |
Safety |
UL (USA): UL 650065 CSA (Canada): CSA E60065CB (EU): IEC60065 (EN60065) KC (Korea): K60065, K00013, K00020, K00022, K00024PSB (Singapore): IEC60O65 SISIR (Malaysia): IEC60065GOST (Russia): IEC60065, EN55013 NOM (Mexico): NOM-019-SCFI-1993 IRAM (Argentina): IEC60065SASO (Saudi Arabia): IEC60065 PAI (Kuwait): IEC60065 |
| EMC |
CCC (China): GB8898, GB13837, GB17625.1, GB13836 FCC (USA): FCC part 15 subpart B, Class B CE (Europe): EN55022, EN55024, EN55013, EN55020 VCCI (Japan): VCCI V-3KCC (Korea): KN22, KN24BSMI (Taiwan): CNS14408, CNS13439C-Tick (Australia): AS / NZS CISPR 13, AS / NZS CISPR 22 RFS (New Zealand): AS / NZS CISPR 13, AS / NZS CISPR 22 IC (Canada): ICES-003 |
| Accessories |
Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries, Ferrite Core |
| Optional |
Stand |
SMM6330D |
| Mount |
WMN5770D |
| Specialty |
CML630D (ceiling mount) |
