Features and specifications are subject to change without prior notification.
|
|
Usage note
(1) Internal memory capacity is subject to change without prior notice.
(2) Smart Auto: Portrait, Night Portrait, Backlight Portrait, Macro Portrait, Backlight, Landscape, White, Action, Tripod, Night, Macro, Macro Text, Blue Sky, Sunset Sky, Macro Colour, Natural GreenScene: Beauty Shot, Portrait, Night scene, Children, Landscape, Text, Close-up, Sunset, Dawn, Backlight, Fireworks, Beach & Snow, Frame Guide Continuous: Single, Continuous, Motion Capture, AEBSelf-timer: 10sec. 2sec., Double, Motion Timer
(3) Included battery may vary depending on sales region.
|
| Image Sensor |
Type |
1 / 2.33 (Approx. 7.79mm) CCD |
| Effective Pixel |
Approx. 10.2 Mega-pixel |
| Total Pixel |
Approx. 10.3 Mega-pixel |
| Lens |
Focal Length |
Samsung Lens f = f4.9 ~ 24.5mm (f27 ~ 135mm 35mm f |
| F No. |
F3.5(W) ~ F5.9(T) |
| Digital Zoom |
Still Image mode: 1.0X ~ 4.0X Play mode: 1.0X ~ 12.5X (depends on image size, Min. size is 320 x 240) |
| Focusing |
Type |
TTL auto focus (Multi AF, centre AF, Face Detection AF) |
| Range |
Normal: 80cm ~ infinity Macro: 5cm ~ 80cm (Wide) Auto Macro: 5cm ~ Infinity (Wide), 1m ~ Infinity (Tele) |
| Exposure |
Control |
Program AE |
| Metering |
Multi, Spot, Center Weighted, Face Detection AE |
| Compensation |
2EV (1 / 3EV steps) |
| ISO Equivalent |
Auto, 80, 100, 200, 400, 800, 1,600 |
| Flash |
Modes |
Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red Eye Fix |
| Range |
Wide: 0.2m ~ 3.75m, Tele: 0.5m ~ 2.0m (ISO AUTO) |
| Recharging Time |
Approx. 4sec. |
| Storage |
Media |
Internal memory: Approximately 7.5MB flash memory External memory: SD Card (up to 2GB guaranteed) MMC plus (up to 1GB guaranteed) SDHC (up to 8GB guaranteed) (1) |
| Image Size |
Normal Shooting Mode 10M: 3,648 x 2,736 pixles, 7M: 3,072 x 2,304 pixels, 5M: 2,592 x 1,944 pixels, 3M: 2,048 x 1,536 pixels, 1M: 1,024 x 768 pixels, - Wide Shooting Mode 7MW: 3,648 x 2,052 pixels - Print Shooting Mode 9MP: 3,648 x 2,432 pixels |
| File format |
Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0 Movie Clip: AVI (MJPEG) Audio: WAV |
| Interface |
Digital Output Connector |
USB 2.0 |
| Audio |
Microphone: MonoInternal Speaker: Mono |
| Video Out |
AV: NTSC, PAL (user selectable) |
| DC power input |
4.2V |
| Movie Clip |
Recording |
With Audio or without Audio (user selectable, recording time: Max 2 hours) Size: 640 x 480, 320 x 240 (3X Optical Zoom, Mute during Zoom Operation) Frame rate: 30 fps, 15 fps |
| Effect |
Photo Style Selector: Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB |
| Edit |
Pause during recording, Still Image Capture |
| Image Stabilization |
|
DIS (Digital Image Stabilization) |
| Sharpness |
|
Soft+, Soft, Normal, Vivid, Vivid+ |
| Still Image |
Shooting |
Mode: Smart Auto, Auto, Program, DIS, Photo help Guide, Scene (2) |
| Effect |
Photo Style Selector: Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGBImage Adjust: Sharpness, Contrast, Saturation (5 steps) |
| Edit |
Photo Style Selector: Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGBImage Adjust: Sharpness, Contrast, Saturation (5 steps) |
| Date Imprinting |
|
Date&Time, Date, Off (user selectable) |
| Power Source |
|
Rechargeable battery: BP-70A, 3.7VCharger: SAC-47DC power input connector: 20pin |

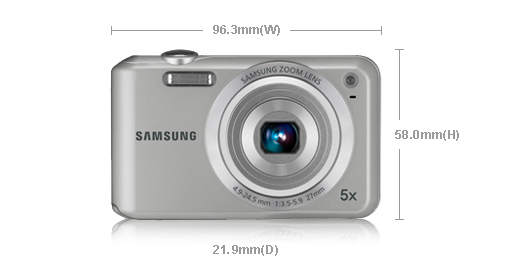

| Physical Specification |
Dimensions (WxHxD) |
96.3 x 58.0 x 21.9mm |
| Weight |
113.8g |
| Operating Temperature |
0 ~ 40C |
| Operationg Humidity |
5 ~ 85% |
| System Requirement in general |
For Windows |
PC with processor better than Pentium 500MHz (Pentiumlll 800MHz recommended) Windows XP / Vista / 7,250MB of available hard-disk space (Over 1GB recommend) Minimum 256MB RAM (Over 512MB recommended) USB portCD-ROM drive 1,024 x 768 pixels, 16-bit colour display compatible monitor (24-bit colour display recommended) Microsoft DirectX 9.0 or later |
| For Macintosh |
Power Mac G3 or laterMac OS 10.3 or higher Minimum 256MB RAM110MB of available hard-disk space USB portCD-ROM drive |
