Features and specifications are subject to change without prior notification.
|
|
Usage note
(1) Internal memory capacity is subject to change without prior notice.
(2) Smart Auto: Portrait, Night Portrait, Backlight Portrait, Macro Portrait, Backlight, Landscape, White, Action, Tripod, Night, Macro, Macro Text, Blue Sky, Sunset Sky, Macro Colour, Natural Green Scene: Beauty Shot, Portrait, Night scene, Children, Landscape, Text, Close-up, Sunset, Dawn, Backlight, Fireworks, Beach & Snow, Frame Guide Continuous: Single, Continuous, Motion Capture, AEB Self-timer: 10 seconds 2 seconds, Double, Motion Timer
(3) Included battery may vary depending on sales region.
|
| Image Sensor |
Type |
1/2.33" (Approx. 7.79mm) CCD |
| Effective Pixel |
Approx. 12.2 Mega-pixel |
| Total Pixel |
Approx. 12.3 Mega-pixel |
| Lens |
Focal Length |
Samsung Lens f = f4.9 ~ 24.5mm (f27 ~ 135mm 35mm f |
| F No. |
F3.5 (W) ~ F5.9 (T) |
| Digital Zoom |
Still Image mode: 1.0X ~ 4.0X Play mode: 1.0X ~ 12.5X (depends on image size, Min. size is 320 x 240) |
| Focusing |
Type |
TTL auto focus (Multi AF, Centre AF, Face Detection AF) |
| Range |
Normal: 80cm ~ infinity Macro: 5cm ~ 80cm (Wide) Auto Macro: 5cm ~ Infinity (Wide), 1m ~ Infinity (Tele) |
| Exposure |
Control |
Program AE |
| Metering |
Multi, Spot, Centre Weighted, Face Detection AE |
| Compensation |
2EV (1/3EV steps) |
| ISO Equivalent |
Auto, 80, 100, 200, 400, 800, 1600 |
| Flash |
Modes |
Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red Eye Fix |
| Range |
Wide: 0.2m ~ 3.75m, Tele: 0.5m ~ 2.0m (ISO AUTO) |
| Recharging Time |
Approx. 4 seconds |
| Storage |
Media |
Internal memory: Approximately 9.9MB flash memory External memory: SD Card (up to 2GB guaranteed) MMC plus (up to 1GB guaranteed) SDHC (up to 8GB guaranteed) (1) |
| Image Size |
12M: 4,000 x 3,000 pixels, 8M: 3,264 x 2,448 pixels 5M: 2,592 x 1,944 pixels, 3M: 2,048 x 1,536 pixels1M: 1,024 x 768 pixels, 9M W: 3,968 x 2,232 pixels, 2M W 1,920 x 1,080 pixels10M P: 3,984 x 2,656 pixels Resize4:3 5M: 2,592 x 1,944, 3M: 2,048 x 1,536, 1M: 1,024 x 7683: 24M P: 2,592 x 1,728, 2M P: 1,800 x 1,20016:9 4M W: 2,592 x 1,458, 2M W: 1,920 x 1,080 |
| File format |
Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0 Movie Clip: AVI (MJPEG) Audio: WAV |
| Interface |
Digital Output Connector |
USB 2.0 |
| Audio |
Microphone: Mono Internal Speaker: Mono |
| Video Out |
AV: NTSC, PAL (user selectable) |
| DC power input |
4.2V |
| Movie Clip |
Recording |
With Audio or without Audio (user selectable, recording time: Max 2 hours) Size : 640 x 480, 320 x 240 (3X Optical Zoom, Mute during Zoom Operation) Frame rate: 30fps, 15fps |
| Effect |
Photo Style Selector: Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB |
| Edit |
Pause during recording, Still Image Capture |
| Image Stabilization |
|
DIS (Digital Image Stabilisation) |
| Sharpness |
|
Soft+, Soft, Normal, Vivid, Vivid+ |
| Still Image |
Shooting |
Mode: Smart Auto, Auto, Program, DIS, Photo help Guide, Scene (2) |
| Effect |
Photo Style Selector: Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB Image Adjust: Sharpness, Contrast, Saturation (5 steps) |
| Edit |
Image Edit: Resize, Rotate, Trimming Photo Style Selector :Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB Image Adjust: Face Retouch, Red Eye Fix, Brightness, Contrast, Saturation |
| Date Imprinting |
|
Date & Time, Date, Off (user selectable) |
| Power Source |
|
Rechargeable battery: BP-70A, 3.7V Charger: SAC-47 DC power input connector: 20 pin |
| Physical Specification |

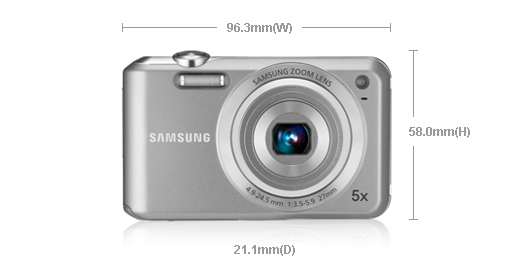

Dimensions (WxHxD) |
96.3 x 58.0 x 21.1mm |
| Weight |
119.1g |
| Operating Temperature |
0 ~ 40 C |
| Operationg Humidity |
5 ~ 85% |
| System Requirement in general |
For Windows |
PC with processor better than Pentium 500MHz (Pentiumlll 800MHz recommended) Windows XP / Vista / 7 250MB of available hard-disk space (Over 1GB recommend) Minimum 256MB RAM (Over 512MB recommended) USB port CD-ROM drive 1,024 x 768 pixels, 16-bit colour display compatible monitor (24-bit colour display recommended) Microsoft DirectX 9.0 or later |
| For Macintosh |
Power Mac G3 or later Mac OS 10.3 or higher Minimum 256MB RAM 110MB of available hard-disk space USB port CD-ROM drive |
