| Image Sensor |
Type |
1 / 2.33 (Approx. 7.79mm) CCD |
| Effective Pixel |
Approx. 12.2 Mega-pixel |
| Total Pixel |
Approx.12.4 Mega-pixel |
| Lens |
Focal Length |
Samsung 5X Lens f = 6.3 ~ 31.5mm (35mm film equivalent: 35 ~ 175mm) |
| F No. |
F3.6 (W) ~ 4.8 (T) |
| Digital Zoom |
Still Image mode: 1.0X ~ 5.0X Play mode: 1.0X ~ 12.5X (depends on image size) |
| Image Stabilization |
|
DIS |
| Display |
Type |
TFT LCD |
| Feature |
2.7" (6.9cm) (230,000 pixel) |
| Waterproof |
|
3M (IEC protection class "IPX8" equivalent). |
| Dustproof |
|
Yes (IEC protection class "IP6X" equivalent.) |
| Focusing |
Type |
TTL auto focus (Multi AF, Centre AF, Face Detection AF, Tracking AF) |
| Range |
Normal: 80cm ~ infinity Macro: 5cm ~ 80cm (Wide), 50cm ~ 80cm (Tele) Auto Macro: 5cm ~ Infinity (Wide), 50cm ~ Infinity (Tele) |
| Shutter Speed |
|
Smart Auto: 1 / 8 ~ 1 / 1,000 seconds Program: 1 ~ 1 / 1,000 seconds (Night Scene: 8 ~ 1 / 1,000 seconds) |
| Exposure |
Control |
Program AE |
| Metering |
Multi, Spot, Center Weighted, Face Detection AE |
| Compensation |
2EV (1 / 3EV steps) |
| ISO Equivalent |
Auto, 80, 100, 200, 400, 800, 1,600, 3,200 |
| Flash |
Modes |
Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off, Red eye fix |
| Range |
Wide: 0.2m ~ 3.0m, Tele: 0.5m ~ 2.0m (ISO AUTO) |
| Recharging Time |
Approx. 4 seconds |
| Sharpness |
|
Soft+, Soft, Normal, Vivid, Vivid+ |
| White Balance |
|
Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom |
| Still Image |
Shooting |
Mode: Smart Auto, P, Scene, Continuous: Single, Continuous, AEB, Motion Capture Self-timer: 2 seconds, 10 seconds, Double (2) |
| Effect |
Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom, Defog Smart Filter: Vignetting, Fish Eye Image Adjust: Sharpness, Contrast, Saturation (5 steps), Beauty shot, ACB |
| Edit |
Image Edit: Resize, Rotate, Trimming Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom, Sketch, Defog Smart Filter: Vignetting, Fish Eye, Miniature Image Adjust: Face Retouch, Brightness, Contrast, Saturation, Red Eye Fix, ACB |
| Image Play |
|
Single image, Thumbnails, Advanced Slide show, Movie Clip, Smart Album |
| Voice Recording |
|
Voice Recording (max. 10 hours) Voice Memo in Still Image (max. 10 seconds) |
| Date Imprinting |
|
Date&Time, Date, Off (user selectable) |
| Movie Clip |
Recording |
Smart Scene Detection SelectableScene Recognition: Landscape, Natural Green, Blue Sky, Sunset With Audio or without Audio (Max Recording time (HQ Recording) : 20 minutes) Size: High Quality-1,280 x 720 (30fps & 15fps) Standard Quality - 640 x 480 (30fps & 15fps), 320 x 240 (60fps & 30fps & 15fps) (5X Optical Zoom with sound recording) (4) |
| Effect |
Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom, Defog Smart Filter: Vignetting, Fish Eye Setting: Movie Stabilizer |
| Edit |
Pause during Playing, Still Image Capture, Time Trimming |
| Storage |
Media |
Internal Memory: About 20MB External Memory (Optional): SD (up to 2GB guaranteed) SDHC (up to 32GB guaranteed) (5) |
| File format |
Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0 Movie Clip: MP4 (H.264) Audio: WAV |
| Image Size |
12M: 4,000 x 3,000 pixels, 10M P: 3,984 x 2,656 pixels 9M W: 3,968 x 2,232 pixels, 8M: 3,264 x 2,448 pixels 5M: 2,592 x 1,944 pixels, 3M: 2,048 x 1,536 pixels 1M: 1,024 x 768 pixels |
| Interface |
Digital Output Connector |
USB 2.0 |
| Audio |
Microphone: Mono Internal Speaker: Mono |
| Video Out |
NTSC, PAL (user selectable) |
| DC power input |
4.2V |
| Power Source |
|
Rechargeable battery: BP-70A Adaptor: SAC-48, CB20U05A Connector Type: 20pin |

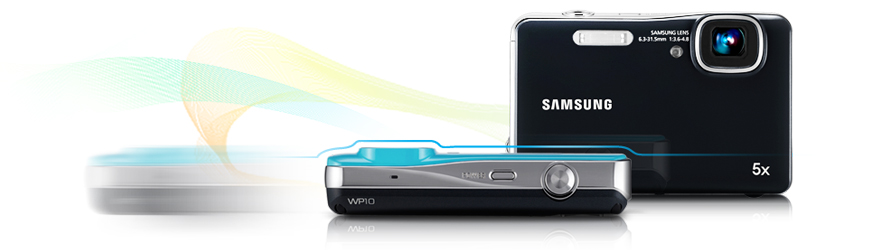

| Physical Specification |

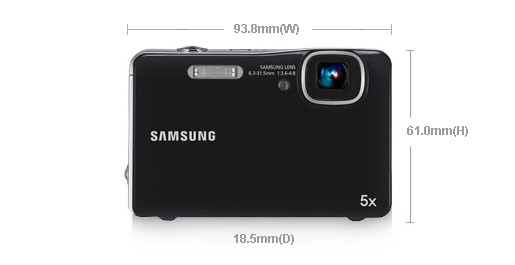

Dimensions (WxHxD) |
93.8 x 61.0 x 18.5mm (Excluding protrusions) |
| Weight |
121g (without battery and card) |
| Operating Temperature |
0 ~ 40C |
| Operationg Humidity |
5 ~ 85% |
| Software |
|
Intelli-studio, Adobe Reader |
| Special Feature |
|
Waterproof & Compact slim Design Waterproof (3M), Aqua Mode 12 Mege Pixels 5X Optical Zoom Lens & DIS 2.7" LCD (230K) H.264, 720p, 30fps ISO 3,200 Smart Auto (Still & Movie) & Face Recognition Face Detection & Self Portrait Smart Album Blink Detection & Smile Detection Beauty Shot Frame Guide Function Description Smart Filter: Miniature, Vignetting, Fish Eye |
| System Requirement in general |
For Windows |
PC with processor better than Pentium 500MHz (Pentiumlll 800MHz recommended) Windows XP / Vista, Windows 7,250 MB of available hard-disk space (Over 1GB recommend) Minimum 256MB RAM (Over 512MB recommended) USB port CD-ROM drive 1,024 768 pixels, 16-bit color display compatible monitor (24-bit color display recommended) Microsoft DirectX 9.0C or later |
| For Macintosh |
Power Mac G3 or later Mac OS 10.3 or higher Minimum 256MB RAM 110MB of available hard-disk space USB port CD-ROM drive |
