| Image Sensor
| Type
| 1 / 2.4" High Speed CMOS |
| Effective Pixel
| Approx. 10 Mega pixel |
| Total Pixel
| Approx. 10.6 Mega pixel |
| Lens
| Focal Length
| Schneider-KREUZNACH f = 4.3 ~ 21.5mm (35mm film equivalent: 24 ~ 120mm) |
| F No.
| F2.4 (W) ~ F5.8 (T) |
| Digital Zoom
| Still Image mode: 1.0X ~ 4.0X
Play mode: 1.0X ~ 11.4X (depends on image size) |
| Focusing
| Type
| TTL Auto Focus (Centre AF, Multi AF, Selection AF, Manual Focus, Face Detection AF, Object Tracking AF), Movie AF (CAF) |
| Range
| Normal: 50cm ~ Infinity (Wide), 80cm ~ Infinity (Tele)
Macro: 5cm ~ 50cm (Wide), 50cm ~ 80cm (Tele)
Auto Macro: 5cm ~ Infinity (Wide), 50cm ~ Infinity (Tele)
Manual: 5cm ~ Infinity (Wide), 50cm ~ Infinity (Tele) |
| Exposure
| Control
| Program AE, Manual Aperture Adjustment (21 steps) |
| Metering
| Multi, Spot, Centre-weighted |
| Compensation
| 2EV (1 / 3EV steps) |
| ISO Equivalent
| Auto, 80, 100, 200, 400, 800, 1,600, 3,200 (TBD) |
| Flash
| Modes
| Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix |
| Range
| Wide: 0.2m ~ 4.4m, Tele: 0.8m ~ 1.8m (ISO AUTO) (1) |
| Recharging Time
| Approx. 4 seconds |
| Storage
| Media
| External memory: SD Card (up to 4GB guaranteed) SDHC (up to 8GB guaranteed) |
| Image Size
| 10M: 3,648 x 2,736 pixels, 9MP: 3,648 x 2,432 pixels, 8M: 3,264 x 2,448 pixels, 7MW: 3,648 x 2,048 pixels,7M 1:1: 2,736 x 2,736 pixels 5M: 2,592 x 1,944 pixels, 3M: 2,048 x 1,536 pixels, 2MW: 1,920 x 1,080 pixels, 1M: 1,024 x 768 pixels |
| File format
| Still Image: JPEG, DCF, EXIF 2.21, DPOF 1.1, PictBridge 1.0SRW (Samsung Raw File format) Movie Clip: Container: MP4, Video: H.264, Audio: AAC |
| Interface
| Digital Output Connector
| USB 2.0 |
| Audio
| Microphone: Stereo Internal Speaker: Mono |
| Video Out
| AV: NTSC, PAL (user selectable) HDMI 1.2: NTSC, PAL (user selectable) HDMI Type D |
| DC power input
| 4.4V |
| Movie Clip
| Recording
| Movie Size: 1,920 x 1,080 High / Standard Quality, 1,280 x 720 Standard Quality, 640 x 480, 320 x 240, 432 x 320, 224 x 160, 192 x 64 (2) |
| Effect
| Smart Filter: miniature, vignetting, fish-eye
Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB, Sketch*, Defog (3) |
| Edit
| Pause during recording, Still Image Capture, Time Trimming |
| Image Stabilization
|
| Dual IS (OIS + DIS) |
| Sharpness
|
| 5 steps |
| Still Image
| Shooting
| 10fps, 5fps, 3fps, Precapture, Single, interval, 10 seconds, 2 seconds, BRK, Raw file support |
| Effect
| Smart Filter: miniature, vignetting, fish-eye
Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB, Sketch, Defog |
| Edit
| Resize, Rotate, Photo Style Selector, Image Adjust (4) |
| Date Imprinting
|
| DD / MM / YY |
| Power Source
|
| Rechargeable battery: SLB-11A (1,130mAh) Connector Type: 20pin Adaptor: SAC-48, USB / Charging Cable: CB34U05, AV Cable: SCC-AV34 |
| Physical Specification

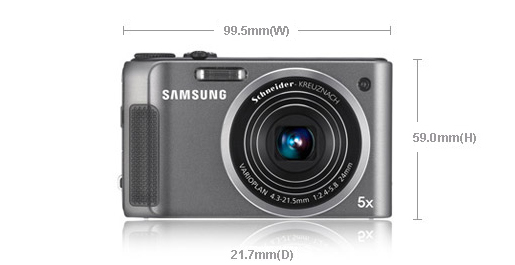

| Dimensions (WxHxD)
| 99.5 x 59.0 x 21.7mm |
| Weight
| 0.1533kg |
| Operating Temperature
| 0 ~ 40C |
| Operationg Humidity
| 5 ~ 85% |
| System Requirement in general
| For Windows
| PC with processor better than Pentium |
| For Macintosh
| Power Mac G3 or later, Mac OS 10.3 or higher, Minimum 256MB RAM, 110MB of available hard-disk space, USB port, CD-ROM drive |
| System Requirement for 720P H.264 Movie
| For Windows
| Intel Core2 Duo 1.66GHz or higher, AMD Athlon X2 Dual-Core 1.6GHz or higher, Windows XP service pack2, VistaMinimum 512MB RAM (1GB and above recommended), 64MB or greater video card, (nVIDIA Geforce 7600GT or higher, ATI X1600 series or higher recommended) |
| For Macintosh
| 1.8GHz Power Mac G5 or 1.83GHz Intel Core Duo or faster Macintosh computer, At least 256MB of RAM, 64MB or greater video card |
