Features and specifications are subject to change without prior notification.
|
|
Usage note
(1) OIS (Optical Image Stabilization), DIS (Digital Image Stabilization)
(2) Smart: Portrait, Night Portrait, Night, Backlight Portrait, Backlight, Landscape, White, Macro, Macro Text, Tripod, Action, Macro Colour, Macro Portrait, Natural Green, Blue Sky, Sunset Scene: Beauty Shot, Frame Guide, Night, Portrait, Children, Landscape, Close-up, Text, Sunset, Dawn, Backlight, Firework, Beach & Snow Continuous: Single, Continuous, AEB, Motion Capture Self-timer: Off, 2 seconds, 10 seconds, Double, Motion timer
(3) Included items may vary depending on sales region.
|
| Image Sensor
| Type
| 1 / 2.3 (Approx. 7.76mm) CCD |
| Effective Pixel
| Approx. 14.2 Mega pixel |
| Total Pixel
| Approx. 14.4 Mega pixel |
| Lens
| Focal Length
| Samsung 7X Zoom Lens f = 5.6 ~ 39.2mm (35mm film equivalent: 31 ~ 217mm) |
| F No.
| F3.3 (W) ~ F5.5 (T) |
| Digital Zoom
| Still Image mode: 1.0X ~ 5.0X Play mode: 1.0X ~ 13.5X (depends on image size) |
| Focusing
| Type
| TTL auto focus (Multi AF, Centre AF, Face Detection AF, Tracking AF) |
| Range
| Normal: 80cm ~ infinity, 150cm ~ Infinity (Tele) Macro: 5cm ~ 80cm (Wide), 70cm ~ 150cm (Tele) Auto Macro: 5cm ~ Infinity (Wide), 70cm ~ Infinity (Tele) |
| Exposure
| Control
| Program AE |
| Metering
| Multi, Spot, Centre Weighted, Face Detection AE |
| Compensation
| 2EV (1 / 3EV steps) |
| ISO Equivalent
| Auto, 80, 100, 200, 400, 800, 1600, 3,200 |
| Flash
| Modes
| Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix |
| Range
| Wide: 0.4m ~ 3.0m, Tele: 0.7m ~ 2.0m (ISO AUTO) |
| Recharging Time
| Approx. 4 seconds |
| Storage
| Media
| Internal memory: 90MB External memory: SD Card (up to 2GB guaranteed) SDHC (up to 8GB guaranteed) |
| Image Size
| 14M: 4,320 x 3,240, 12M: 4,000 x 3,000, 12MP: 4,272 x 2,848,10MW: 4,224 x 2,376, 8M: 3,264 x 2,448, 5M: 2,592 x 1,944, 3M: 2,048 x 1,536, 1M: 1,024 x 768 |
| File format
| DCF, EXIF 2.21, DPOF 1.1, PictBridge 1.0 Still Image: JPEG Movie Clip: MP4 (Video: MPEG4. AVC / H. 264, Audio: AAC) Audio file: WAV |
| Interface
| Digital Output Connector
| USB 2.0 |
| Audio
| Microphone: MonoInternal Speaker: Mono |
| Video Out
| AV: NTSC, PAL (user selectable) |
| DC power input
| 4.2V |
| Movie Clip
| Recording
| *7X Optical Zoom enable
Mode: Smart Movie, Movie
*Smart Movie: Landscape, Blue Sky, Natual Green, Sunset
Size: High Quality - 1,280 x 720 (30fps & 15fps) Standard Quality - 640 x 480 (30fps & 15fps), 320 x 240 (60fps & 30fps & 15fps)
*Due to the noise while optical zooming, user can select to record sound or not. ( Voice On / Zoom Mute / Off )
*With Audio or without Audio (Max Recording time: 20 minutes) |
| Effect
| Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom
Setting: OIS On / Off |
| Edit
| Pause during Recording and Playing, Still Image Capture, Time Trimming |
| Image Stabilization
|
| Dual IS (OIS + DIS) |
| Sharpness
|
| Soft+, Soft, Normal, Vivid, Vivid+ |
| Still Image
| Shooting
| Mode : Smart Auto, Program, Dual IS, Scene (2) |
| Effect
| Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom
Image Adjust: Sharpness, Contrast, Saturation (5 steps), Beauty shot, ACB |
| Edit
| Image Edit: Resize, Rotate, Trimming
Photo Style Selector: Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom
Image Adjust: Off, Face Retouch, Brightness, Contrast, Saturation, Red Eye Fix, ACB, Add Noise |
| Date Imprinting
|
| Date&Time, Date, Off (user selectable) |
| Power Source
|
| Rechargeable battery: BP70ACharger: SAC-48, CB20U05BConnector Type: 20pin |
| Physical Specification

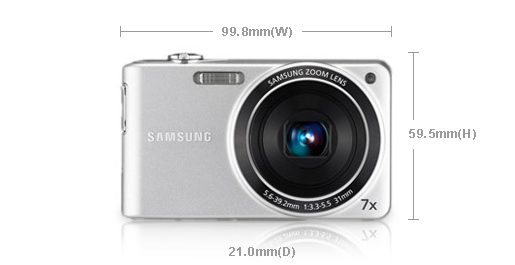

| Dimensions (WxHxD)
| 99.8 x 59.5 x 21.0mm |
| Weight
| 143g (without Battery and SD card) |
| Operating Temperature
| 0 ~ 40C |
| Operationg Humidity
| 5 ~ 85% |
| System Requirement in general
| For Windows
| PC with processor better than Pentium 3.2GHz / AMD Athlon FX 2.6GHz Minimum 512MB RAM (Over 1GB recommended) Windows XP / Vista / 7,250MB of available hard-disk space (Over 1GB recommend) USB port CD-ROM drive nVIDIA Geforce 7,600GT or later / Ati X 1,600 series or later 1,024 x 768 pixels, 16-bit colour display compatible monitor (1,280 x 1,024, 32-bit colour display recommended) Microsoft DirectX 9.0c or later |
| For Macintosh
| Power Mac G3 or later Mac OS 10.4 or higher Minimum 256MB RAM 110MB of available hard-disk space USB port CD-ROM drive |
