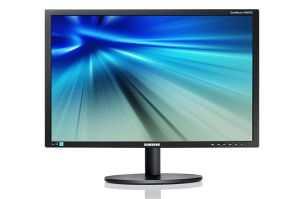

24 420 Series Business LED Monitor (S24B420)
S24B420BW
Overview
Designed to deliver performance, professional picture quality and a comfortable viewing experience.
Conveniently Adjust Monitor Height, Tilt and Perspective
A Monitor Design to Match Business Needs
Features:
Conveniently adjust monitor height, tilt and perspective
The Samsung LED* Business Monitor SB420 has been designed to help boost work efficiency, delivering a tailored experience with its choice of viewer settings. The height-adjustable stand allows users to adjust the screen and to set it at various levels, thereby enhancing the visual experience.
Other features include the tilt and pivot capabilities, which not only helps to enhance comfort levels but also introduces different ways of working. The SB420 Monitor can rotate 90 degrees, allowing the user to adjust the view as appropriate. So you can take convenience and efficiency to amazing heights with the Samsung LED Business Monitor SB420.
Samsung LED displays combine LCD screens with LED edge-lights.

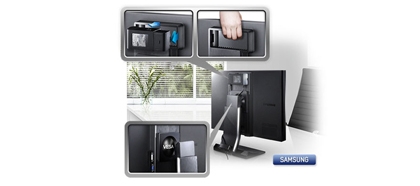

Help maximise workspace with an efficient detachable adaptor
If you need a work monitor that uses office space efficiently, then the Samsung LED Business Monitor SB420 is an outstanding choice. It features a detachable adaptor, which allows the monitor to be easily moved and installed. From physically moving the monitor with the carrying handle to quickly installing, the SB420 is ready to deliver an efficient and clean work space. The SB420 is also equipped and prepared for you as a VESA Wall mount, providing a multi-screen or wall mounted monitor. Optimising your office space is easily achieved with the Samsung LED Business Monitor SB420.
See it your way with wide viewing angles
The Samsung LED Business Monitor SB420 features the Magic Angle Vertical to help deliver a quality screen which can be viewed at various angles. With 20 different angle steps (10 up and 10 down) you have the choice of moving the screen to align with your viewing position.
Technical Specifications
Display
| Panel Type |
TN, LED Type |
|
| Screen Size |
24" (16:10) Screen Size |
|
| Type |
LED Type |
|
| Active Display Size (H x V) |
518.4 x 324.0mm Active Display Size |
|
| Brightness |
250cd/m Brightness |
|
| Contrast Ratio |
Mega DCR (Static 1,000:1) Contrast Ratio |
|
| Resolution |
1,920 x 1,200 Resolution |
|
| Response Time |
5ms(On / Off) |
|
| Pixel Pitch |
0.270mm(H) x 0.270mm(V) Pixel Pitch |
|
| Viewing Angle (Horizontal/Vertical) |
170 / 160 Viewing Angle
(Horizontal / Vertical) |
|
| Color Support |
16.7M Colour Support |
|
Interface
| D-Sub |
1 x D-Sub |
|
| DVI |
1 x DVI |
|
General Feature
| Embedded Function |
Samsung MagicAngle, Samsung MagicBright, Samsung MagicColour, Off Timer, Image Size, Key Repeat Time supported, MagicTune |
|
| Additional PC S/W |
MagicTune, MultiScreen, MagicRotation |
|
| OS Compatibility |
All OS |
|
| Windows Certification |
Yes |
|
Design
| Colour |
Matt Black |
|
| Stand Type |
HAS: range(100mm) |
|
| Stand Function |
Tilt range: -5 to +22
Pivot: -1 to +115
Swivel range: -45 to +45 |
|
| Wall Mount |
100 x 100 Wall Mount Supported |
|
Power
| Power Supply |
100-240V(50 / 60hz) Power Supply |
|
| Power Consumption |
30W(Typ.) Power Consumption |
|
| Power Consumption (DPMS) |
0.3W(Typ.) Power Consumption (DPMS) |
|
| Power Consumption (Stand-by) |
0.3W(Typ.) Power Consumption (Stand-by) |
|
| Type |
Built-in |
|
Dimension
| Set Dimension with Stand (WxHxD) |
556.2 x 492.9 x 220.0mm |
|
| Set Dimension without Stand (WxHxD) |
556.2 x 360.8 x 60.9mm |
|
| Package Dimension (WxHxD) |
633 x 441 x 192mm |
|
Weight
| Set Weight with Stand |
4,400 |
|
| Set Weight without Stand |
3,200 |
|
| Package Weight |
6,300 |
|
Accessory
| Cables |
D-sub + DVI Cable |
|
| Others |
E-manual, Install CD, Quick Setup Guide included |
|
| Power Cable Length |
1.5m Power Cable Length |
|
Operation Conditions
| Temperature |
10C~ 40C |
|
| Humidity |
10~80% |
|
Certification and Compliance
| Eco label certification |
UL (USA): UL 60950-1
CSA (Canada): CSA C22.2 No.60950-1
TUV (Germany): EN60950-1
(Korea): K60950-1
CCC (China): GB 4943-2001
PSB (Singapore): IEC60950-1
SIQ (Slovenia): IEC60950-1, EN55022
PCBC (Poland): IEC60590-1, EN55022
NOM (Mexico): NOM-019-SCFI-1993
IRAM (Argentina):IEC60950-1
SASO (Saudi Arabia): IEC60950-1 |
|
| EMC |
FCC (USA) FCC Part 15, Subpart B class A
CE (Europe) EN55022, EN55024
KCC (Korea): KN22, KN24
C-Tick (Australia): AS/NZS3548 (CISPR22)
CCC(China): GB 9254-2008, GB 17625.1-2003 |
|
| Environment / Energy |
Energy Star / TCO 5.0 |
|
Features and specifications are subject to change without prior notification.
