Display
| H-Scanning Frequency |
30 - 81 KHz |
|
| Maximum Pixel Frequency |
148.5 MHz |
|
| V-Scanning Frequency |
48 - 75 Hz |
|
Panel
| Diagonal Size |
46" |
|
| Type |
60 Hz LED BLU |
|
| Resolution |
1,920 x 1,080 |
|
| Pixel Pitch(mm) |
0.17675 (H) x 0.53025 (V) |
|
| Active Display Area |
1018.08 (H) x 572.67 (V) |
|
| Brightness |
350 nit |
|
| Contrast Ratio (Dynamic) |
100,000:1 (AV Mode) |
|
| Viewing Angle(Horizontal/Vertical) |
178 / 178 (CR > 10) |
|
| Response Time (G-to-G) |
8 ms |
|
| Display Color |
16.7 M |
|
| Color Gamut |
72 % |
|
| Contrast Ratio |
5,000:1 |
|
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D (Dual Link) |
| |
Video |
Component, CVBS, HDMI |
| |
Audio |
Stereo Mini Jack Connectivity |
| Output |
Audio |
Stereo Mini Jack |
| External Control |
RS232C (In/Out), RJ45 |
|
Specification

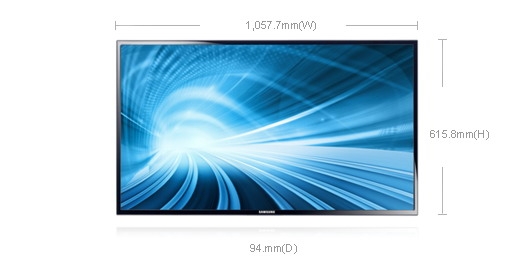

| Dimension |
Set Dimension (WxHxD) |
1,057.7 x 615.8 x 94.9 mm |
| |
Package Dimension (WxHxD) |
1,154 x 723 x 165 |
| Weight (kg) |
Set Weight |
12.2 kg |
| |
Shipment Weight |
14.8 kg |
| VESA Mount |
400 x 400 mm |
|
| Stand Type |
Foot Stand (Optional) |
|
| Media Player Option Type |
Emebedded |
|
Operation
| Operating Temperature |
0 - 40 |
|
| Humidity |
10 - 80 % |
|
Special Features
| Key |
ex) World 1st LED BLU LFD |
|
| USB powered hub option |
ex) Anti Burn-in S/W / RS-232C Control / Video Wall Function |
|
Power Consumption
| Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
|
| Power Consumption |
Off Mode |
Less than 1 W |
| |
On Mode |
136 W (Max) / 94 W (Typ) |
| |
Sleep Mode |
Less than 1 W |
| Type |
Internal Adaptor |
|
Accessory
| Included |
Quick Setup Guide, Warranty Card,Application CD, D-Sub cable, Power Cord,Remote Controller, Batteries |
|
| Optional |
Mount |
WMN4270SD, WMN250MD (TBD) |
| |
Specialty |
CML450D (Ceiling Mount) |
| |
Stand |
STN-L4055AD |
Certification
| EMC |
FCC (USA) FCC Part 15, Subpart B class ACE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea) :KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22)C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003 |
|
| Environment |
ENERGY STAR 5.0 (USA) |
|
| Safety |
cUL (USA+Canada) : UL60950 TUV (Germany) : EN60950CB (Europe) : IEC60950/EN60950EK (Korea) : K60950 CCC (China) : GB8898PSB (Singapore ) : IEC60950 GOST (Russia ) : IEC60950, EN55022 SIQ (Slovenia ) : IEC60950, EN55022 PCBC (Poland ) : IEC60950, EN55022 NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAMSASO (Saudi Arabia ) : IEC60950 |
|
Features and specifications are subject to change without prior notification.
