Display
| H-Scanning Frequency |
30 ~ 81 kHZ |
|
| Maximum Pixel Frequency |
48 ~ 75 HZ |
|
| V-Scanning Frequency |
148.5 MHz |
|
Panel
| Diagonal Size |
55" |
|
| Type |
120Hz LED BLU |
|
| Resolution |
1920 x 1080 (16:9) |
|
| Pixel Pitch(mm) |
0.21 (H) x 0.63 (V) |
|
| Active Display Area |
1209.6 (H) x 680.4 (V) |
|
| Brightness |
350 cd/ |
|
| Contrast Ratio (Dynamic) |
100,000:1 |
|
| Viewing Angle(Horizontal/Vertical) |
178 / 178 |
|
| Response Time (G-to-G) |
8 ms |
|
| Display Color |
16.7 M |
|
| Color Gamut |
72% |
|
| Contrast Ratio |
5,000:1 |
|
Connectivity
| Input |
RGB |
Analog D-SUB, DVI-D (Dual Link) |
| |
Video |
Component, CVBS, HDMI |
| |
Audio |
Stereo Mini Jack |
| Output |
Audio |
Stereo Mini Jack |
| External Control |
RS232C (In/Out), RJ45 |
|
Specification

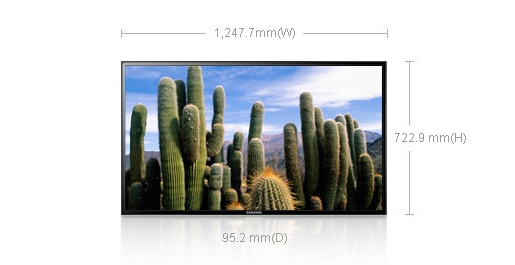

| Dimension |
Set Dimension (WxHxD) |
1,247.7 x 722.9 x 95.2mm |
| |
Package Dimension (WxHxD) |
1,381 x 838 x 170mm |
| Weight (kg) |
Set Weight |
17.9kg |
| |
Shipment Weight |
23.7kg |
| VESA Mount |
400 x 400mm |
|
| Stand Type |
Foot Stand (Optional) |
|
| Media Player Option Type |
Embedded |
|
Operation
| Operating Temperature |
0 - 40 |
|
| Humidity |
10 - 80 % |
|
Special Features
| Key |
Slim & Light LFD with Built-in MagicInfo Lite |
|
| USB powered hub option |
Built in MagicInfo Lite, Built in Speaker(10W + 10W), Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight |
|
Power Consumption
| Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
|
| Power Consumption |
Off Mode |
Less than 1 W |
| |
On Mode |
164 W (Max) / 124 W (Typ) |
| |
Sleep Mode |
Less than 1 W |
Accessory
| Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
|
| Optional |
Mount |
WMN4270SD (Mount) |
| |
Specialty |
CML450D (Ceiling Mount) |
| |
Stand |
STN-L4055AD (Stand) |
Features and specifications are subject to change without prior notification.
