All stock codes associated to this product
LH40DECPLBC/XY, 2345457
DE40C
Overview
Optimise The Appearance Of Your Business

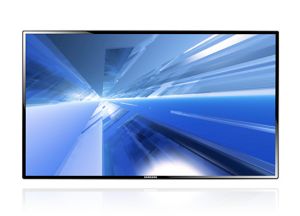

Project the right message to your customers with the Samsung LFD DE Series. Designed for heavy use, this monitor is flexible and reliable enough to handle all types of presentation requirements.
Features:
Our innovative Samsung DE Series LED large format displays (LFDs) are specifically designed for continuous, high-quality content presentation. Any type of business can communicate more than just information to customers, additionally projecting a unified brand image and identity. Suitable for use in a range of demanding environments, the Samsung DE Series offers bright, high-quality monitors that are flexible and reliable enough to handle diverse media and presentation requirements at low operating costs. They are also easy to install and enjoy an eco-friendly design that omits various undesirable chemicals associated with LED technology.

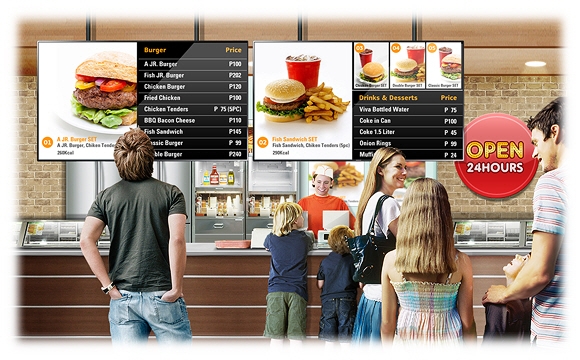

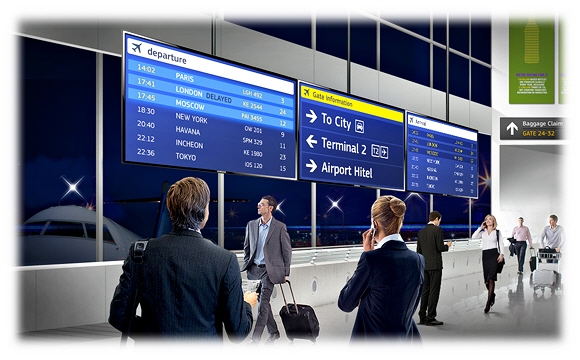

24/7 Performance with Enhanced Quality
A diverse range of businesses can optimise the appearance of their content and image with the DE Series, improving key messages and offering a unified brand identity. Its slim bezel and edge-LED technology offer high brightness, with an enhanced luminescence of 700nit. The viewing experience is further improved by an anti-glare, anti-glossy panel. The DE Series represent highly durable displays that are designed for operation 24/7 in a variety of challenging environments.
Adaptable and Economical Business Display
These durable displays offer lower total cost of ownership (TCO), and are designed for continuous, energy-efficient operation with reduced power consumption and heat emission. The DE Series LFDs incorporate an innovative backlight unit (BLU), saving more electricity than traditional devices and lowering operational expenditure. This LED technology also reduces environmental impact by cutting out potentially harmful substances such as mercury, halogen and lead, as does the spray-free injection molding used to produce flat panel displays.
Intuitive Operation with Multiple Media Inputs
The built-in professional signage player incorporates a high-performance processor, allowing users to deliver multiple sources of quality content simultaneously and continuously. Companies can creatively add, change and integrate information into optimal presentations. It is possible for professionals to schedule, update and control the display of business content remotely and at a local level. This capability provides greater flexibility for when and how content displays, and improves resource utilisation.
Slim and Lightweight for Flexible Installation

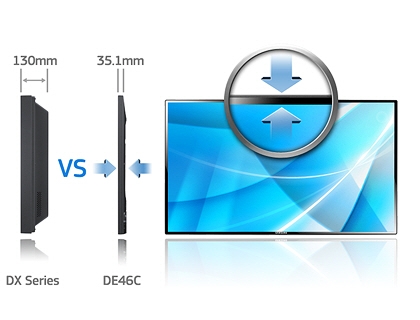

The DE Series has an extremely slim depth, which is 73 per cent reduced compared to traditional products, giving a sleeker overall appearance. The lightweight design frees up more space and leads to easier, more efficient installation. A narrow bezel increases viewer focus on content and allows more room for information display. It also enables virtually seamless video walls for a more immersive experience.
Easy Installation and Efficient Space Usage

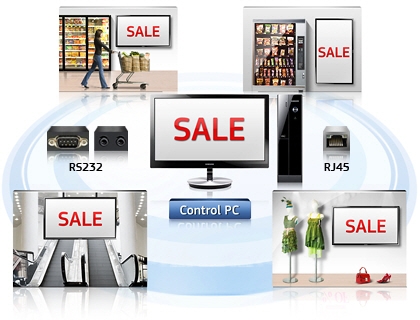

Improve business display management with the slim, lightweight design of the Samsung DE Series. This attractive LFD ensures easy installation and improved space management, leaving more room available for other purposes. Content can be delivered to heights of up to 15m thanks to the DisplayPort feature. Furthermore, remote control is ensured by RJ45 port utilisation, even when users are combining RJ45 and RS-232 connections.
Specifications:
Display
| H-Scanning Frequency |
30~81kHZ |
|
| Maximum Pixel Frequency |
148.5MHz |
|
| V-Scanning Frequency |
56~75HZ |
|
Panel
| Diagonal Size |
40" |
|
| Type |
60Hz LED BLU |
|
| Resolution |
1920x1080 (16:9) |
|
| Pixel Pitch(mm) |
0.15375(H) X 0.46125(V) |
|
| Active Display Area |
885.6(H) X 498.15(V) |
|
| Brightness |
700nit |
|
| Contrast Ratio (Dynamic) |
4000:1 |
|
| Viewing Angle(Horizontal/Vertical) |
178:178 |
|
| Response Time (G-to-G) |
8ms |
|
| Display Color |
16.7M |
|
| Color Gamut |
70% |
|
| Light Source Type |
LED
|
|
Connectivity
| Input |
RGB |
D-Sub, DVI-D, Display Port |
| |
Video |
Component(VCBS common), HDMI |
| |
Audio |
Stereo mini Jack |
| Output |
RGB |
DP(Loop-out) |
| |
Audio |
Stereo mini Jack |
| External Control |
RS-232C(In/Out) thru Stereo Jack, RJ-45 |
|
| External Sensor |
IR, Ambient Light |
|
Mechanical Specification
| Dimension |
Set Dimension (WxHxD) |
919.6 X 532.0 X 35.1 |
| |
Package Dimension (WxHxD) |
985.0 X 634.0 X135.0 |
| Weight |
Set Weight |
13.5 |
| |
Package Weight |
16.1 |
| VESA Mount |
200*200mm |
|
| Stand Type |
Foot Stand(optional) |
|
| Media Player Option Type |
Embedded |
|
Operation
| Operating Temperature |
0~ 40 |
|
| Humidity |
10~80% |
|
General Feature
| Key |
Professional Heavy Usage LED LFD |
|
| Special |
Anit Reflection, Non Glossy Design, Built in MagicInfo Lite, Built in Speaker (10W + 10W), Plug and Play (through USB), Narrow Bezel, Slim Depth (35.1mm) |
|
| Internal Player |
Processor |
Cortex-A9 1GHz Dual Core CPU |
| |
On-Chip Cache Memory |
L1 (I/D) : 32KB / 32KB L2 (Unified) : 512KB |
| |
Clock Speed |
1GHz Dual |
| |
Main Memory Interface |
8Gbyte DDR3 Dual 32bit DDR3-667 (1333MHz) |
| |
Graphics |
2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES |
| |
Storage (FDM) |
8GB (2.0GB Occupied by O/S, 6GB Available) |
| |
Multimedia |
Video Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc. |
| |
IO Ports |
USB 2.0 * 2EA |
| |
Operating System |
Linux
|
Power
| Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
|
| Power Consumption |
Off Mode |
less than 1W(with Ethernet) |
| |
On Mode |
165 (Max) / 114 (Typical) / 562.65 (BTU) |
| |
Sleep Mode |
less than 1W (with Ethernet) |
Accessory
| Optional |
Mount |
WMN4070SD, WMN250MD |
| |
Specialty |
CML400D (Ceiling Mount) |
| |
Stand |
STN-L4055AD |
Embedded PC
| CPU |
SBB or PIM Type |
|
| N/B |
SBB or PIM Type |
|
| S/B |
SBB or PIM Type |
|
| GPU |
SBB or PIM Type |
|
| FDM/HDD |
SBB or PIM Type |
|
| Memory |
SBB or PIM Type |
|
| Ethernet |
SBB or PIM Type |
|
| Connectivity |
USB |
SBB or PIM Type |
| |
Output |
SBB or PIM Type |
| |
Others |
SBB or PIM Type |
