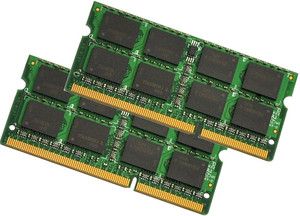

KVR16S11K2/16

  • 16GB (8GB 2Rx8 1G x 64-Bit x 2 pcs.)
  • PC3-12800 CL11 204-Pin SODIMM Kit
DESCRIPTION

ValueRAM's KVR16S11K2/16 is a kit of two 1G x 64-bit (8GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory modules, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. The SPDs are programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. Each 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD) 11 Cycles
Row Cycle Time (tRCmin) 48.125ns (min.)
Refresh to Active/Refresh
Command Time (tRFCmin)
260ns (min.)
Row Active Time (tRASmin) 35ns (min.)
Maximum Operating Power 2.580 W* (per module)
UL Rating 94 V - 0
Operating Temperature 0 to 85 Degrees Celcius
Storage Temperature -55 to 100 Degrees Celcius
*Power will vary depending on the SDRAM used.

FEATURES


  • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
  • VDDQ = 1.5V (1.425V ~ 1.575V)
  • 800MHz fCK for 1600Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 11, 10, 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset

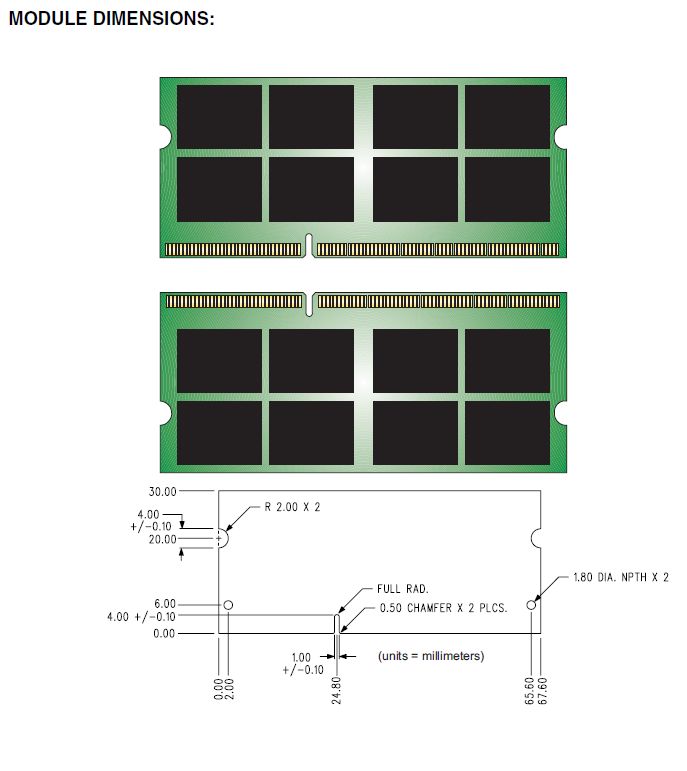

  • PCB : Height 1.180” (30.00mm), double sided component
