Please be aware that due to the large size of many products in this cateogry (Commercial Displays) additional freight may be required after completing your order. This covers various aspects of delivery - tailgates, if you do not have a forklift attract an additional charge. Or it can simply be that our freight system for extremely large products does not cope. Where possible we do absorb these additional fees but it varies order to order as well as upon your delivery location.
All stock codes associated to this product
LH65EDDPLGC/XY, 2671024

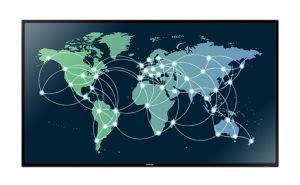

ED65D - ED-D Series 65" Direct-Lit LED Display
The Samsung ED65D commercial grade display features enhanced connectivity options compared to its predecessor model, including DVI, Component and Composite inputs, while maintaining simplicity and ease of use. The large 65" direct-lit LED screen showcases excellent full HD image quality in an affordable fashion, and delivers the commercial reliability you expect from Samsung.
- Direct-Lit LED Display
- Enhanced Connectivity Options
- Our Most Affordable Commercial Grade Series
- 3-Year Onsite Warranty
Product Features
Direct-Lit LED Display
Direct-lit LED technology delivers sharp, high-resolution images, along with the uniform brightness typical of traditional CCFL-backlit displays. It also uses less energy, with savings of up to 50% over CCFL. Step up to the performance and efficiency benefits of LED.
Enhanced Connectivity Options
Discover improved connectivity options compared to predecessor models. DVI, Component and Composite inputs, in addition to VGA, HDMI and audio out, maintain simplicity while enhancing versatility to meet your business's digital signage needs.
Commercial Reliability
Samsung stands as the market share leader in digital signage. So while the ED-D Series displays are affordable, theyre also every bit as reliable as our most expensive display panels. We demonstrate our confidence in the quality of our product with a 3-year onsite warranty.
Optional Touch Overlay
The optional touch overlay accessory transforms your display into an interactive whiteboard. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.
Specifications
Display
Screen Size: 65"
Display
Brightness: 400 nits
Display
Resolution: 1920 1080
Series Name
|
| Series Name |
ED65D |
Display
|
| Panel Technology |
60Hz LED BLU |
| Aspect Ratio |
16:9 |
| Contrast Ratio (Typical) |
4,000:1 |
| Viewing Angle (H/V) |
178/178 |
| Response Time |
6.5ms |
Connectivity
|
| Input |
VGA (D-sub 15 pin), DVI-D, Component/Composite, HDMI, Stereo mini Jack |
| Output |
Stereo mini Jack |
| External Control |
RS232C(In/Out) thru stereo jack |
| Sensor |
Yes |
Power
|
| Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) |
180W/290W |
| Power Consumption (Standby) |
< 0.5W |
Environmental Conditions
|
| Operating Temperature |
0~ 40 |
| Operating Humidity |
10~80% |
Features
|
| Special |
PIP/PBP, Narrow Bezel, Light Weight, RS232 In/Out 1 D-Sub & 1 HDMI |
| VESA Standard Wall-Mount Interface |
400 x 400mm |
| Built-in Speakers |
Yes |

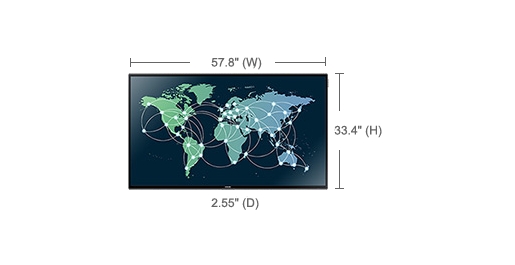

Dimensions
|
| Without Stand (W x H x D) |
57.8" x 33.4" x 2.55" |
| Packaging (W x H x D) |
64.0" x 37.6" x 9.3" |
| Bezel Width |
18.0mm(Bottom 23.5mm) |
Weight
|
| Set |
59.1 lb. |
| Package |
74.1 lb. |
Service
|
| Standard Warranty |
3 Years On-Site (Parts / Labor / Backlight ) |
Accessories
|
| Included in Box |
Quick Setup Guide, Warranty Card, D-Sub cable, Power Cord, Remote Controller, Batteries |
| Optional Wall Mount |
WMN4675MD |
| Optional Stand |
STN-L4055AD, STN-L6500E |
Green Management
|
| RoHS Compliant |
Yes |
| Emission Standard |
EMC |
| Packaging Recyclability |
Packing Materials Recyclable |
Features and specifications are subject to change without prior notification
