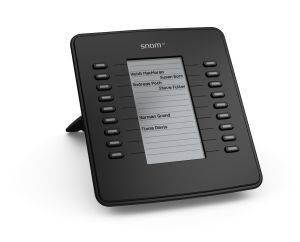

Snom D7 Expansion Module - 18 button snom Black keypad with USB connection for 715/720/725/760/765 series

The D7 expansion module features 18 multi-color LED keys which can be programmed with all functions available known from snom phones.

The high-resolution display provides a perfect visual interface which can be easily configured and labelled via the phones web interface or directly on the phone itself. Using the D7 could not be easier: simply connect the USB cable and its ready to use. Three D7 expansion modules can be daisy-chained to add up to 54 function keys to your phone. The D7 is the perfect addition to any snom 7-series desk phone.


18 highly configurable self-labeling LED keys
High-resolution black &white display with backlight
Daisy chain up to 3 modules
Plug and play
Power supplied by phone via USB port

High-resolution graphical display with backlight
18 freely programmable multicolor LED function keys
Dual-angle footstand: 46° and 28°
Daisy chainable
Fully configurable via host phone
Powered by host phone
158mm x 140mm x 40mm (LxWxD) w/o foot stand
158mm x 140mm x 200/220mm (LxWxD) with foot stand
device 400g, footstand 120g
Ambient temperature: 0°C to 35°C (32°F to 95°F)
Non-operation: -10°C to 45°C (14°F to 113°F)
Humidity: 5% to 95% (non-condensing)


No additional files, specification sheets, guides or documentation found for product.

Warranty: 3Y

Full manufacturers warranty details are available at the manufacturers web site.
