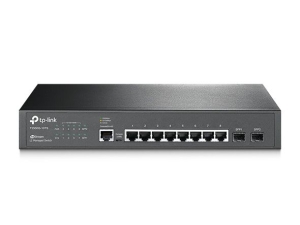

TP-LINK T2500G-10TS(TL-SG3210) JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots



Overview

  • Gigabit Ethernet connections on all ports provide full speed of data transferring
  • Selective RJ45 console port and Micro-USB console port
  • Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • Web/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

What This Product Does

Designed for workgroups and departments, T2500G-10TS from TP-Link provides full set of layer 2 management features. It delivers maximum throughput where you need it to high-performance workgroups at the edge of the network, or as a backbone for Gigabit switches and high-speed servers in demanding small networks. Moreover, T2500G-10TS switch also comes equipped with 2 SFP slots, giving you greater network flexibility.

T2500G-10TS is designed exclusively for the networking needs of growing businesses, with an extensive suite of management features and security functions available. These TP-Link products are cost-effective for small and medium-sized businesses, making them ideal networking solutions.

Abundant L2 Features

T2500G-10TS supports a complete lineup of L2 features, including 802.1Q VLAN, QinQ, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. In addition, the switch provides advanced features for network maintenance, including LoopBack Detection and Cable Diagnostics. IGMP Snooping ensures intelligent forwarding of the multicast stream to only the appropriate subscribers, while IGMP throttling & filtering restricts each subscriber on a port level to prevent unauthorized multicast access.

Secure Networking

The T2500G-10TS provides IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.

Advanced QoS Features

To integrate voice, data and video service on one network, T2500G-10TS supports rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1p Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Enterprise Level Management Features

T2500G-10TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded.

Layer 2 Features

  • Link Aggregation Control Protocol (LACP)
  • Up to 4K VLANs simultaneously(out of 4K VLAN IDs)
  • VLAN VPN (QinQ)
  • GVRP (GARP VLAN Registration Protocol)
  • Port Isolation
  • STP/RSTP/MSTP
  • IGMP Snooping
  • MLD Snooping
  • LLDP/LLDP-MED
  • DHCP VLAN Relay
  • L2PT

Quality of Service

  •  4 priority queues
  • IEEE 802.1P
  • DSCP QoS
  • Rate limit feature

Security Strategies

  • IP-MAC-Port-VID Binding
  • AAA
  • Access Control List (L2~L4 ACL)
  • 802.1x and RADIUS Authentication
  • Support DoS defend
  • Port Security
  • PPPoE
  • SSL and SSH encryptions

IPv6 Support

  • Dual IPv4/IPv6 Stack
  • MLD Snooping
  • PMTU Discovery
  • IPv6 Neighbor Discovery

Management

  • Web-based GUI
  • Command Line Interface
  • IPv6 Management
  • SNMP v1/v2c/v3
  • RMON (1,2,3,9 group)

Specifications

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface

8 10/100/1000Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX)

2 Gigabit SFP Slots

1 RJ45 Console Port

1 Micro-USB Console Port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

1000BASE-X: MMF, SMF

Fan Quantity

Fanless

Power Supply

100240VAC, 50/60Hz

Power Consumption

Maximum: 8.38W (220V/50Hz)

Dimensions ( W x D x H )

11.6 7.1 1.7 in. (294 180 44 mm)

PERFORMANCE

Bandwidth/Backplane

20Gbp

Packet Forwarding Rate

14.9Mpps

MAC Address Table

8k

Packet Buffer Memory

4Mb

Jumbo Frame

9KB

SOFTWARE FEATURES

Quality of Service

Support 802.1p CoS/DSCP priority

Support 4 priority queues

Queue scheduling: SP, WRR, SP+WRR

Port/Flow- based Rate Limiting

Voice VLAN

L2 Features

IGMP Snooping v1/v2/v3

MLD v1/v2 Snooping

802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)

Spanning Tree STP/RSTP/MSTP

Port isolation

BPDU filtering/guard

TC/Root protect

Loop back detection

802.3x Flow Control

LLDP/LLDP-MED

DHCP VLAN Relay

L2PT

VLAN

Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

MAC/Protocol-based VLAN

GARP/GVRP

VLAN VPN (QinQ)

Management VLAN configuration

Access Control List

L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;

Time Range Based

Security

IP-MAC-Port-VID Binding

AAA

DHCP Snooping

IEEE 802.1X Port/MAC Based authentication, Radius, Guest VLAN

DoS Defend

Dynamic ARP inspection (DAI)

SSH v1/v2

SSL v2/v3/TLSv1

Port Security

Broadcast/Multicast/Unknown-unicast Storm Control

PPPoE

IPv6

Dual IPv4/IPv6 stack

Multicast Listener Discovery (MLD) Snooping

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 Applications

DHCPv6 Client

Ping6

Tracert6

Telnet(v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL

Http/Https

IPv6 TFTP

Management

Web-based GUI and CLI management

SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs

RMON (1, 2, 3, 9 groups)

DHCP/BOOTP Client,DHCP Snooping,DHCP Option82

CPU Monitoring

Port Mirroring

Dual Image

Time Setting: SNTP

Integrated NDP/NTDP feature

Firmware Upgrade: TFTP & Web

System Diagnose: VCT

SYSLOG & Public MIBS

OTHERS

Certification

CE, FCC, RoHS

Package Contents

Switch; Power Cord; Quick Installation Guide;Resource CD; Rackmount Kit; Rubber Feet

System Requirements

Microsoft Windows 10, 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux.

Environment

Operating Temperature:0°C~40°C (32°F~104°F)

Storage Temperature:-40°C~70 °C(-40°F~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Warranty

Limited 3-Year Warranty

For further information on our warranty policy please visit: https://www.tp-link.com.au/support/rma
