Logitech 939-001647 Rally Mic Pod
Hub

Overview
RALLY MIC POD HUB
Customize microphone placement for most any conference table configuration
  - Provides flexible placement options for multiple mic pods

- Reduces cross-table cabling

- Connects both mic pods and additional hubs
YOUR CONFERENCE ROOM. YOUR WAY.

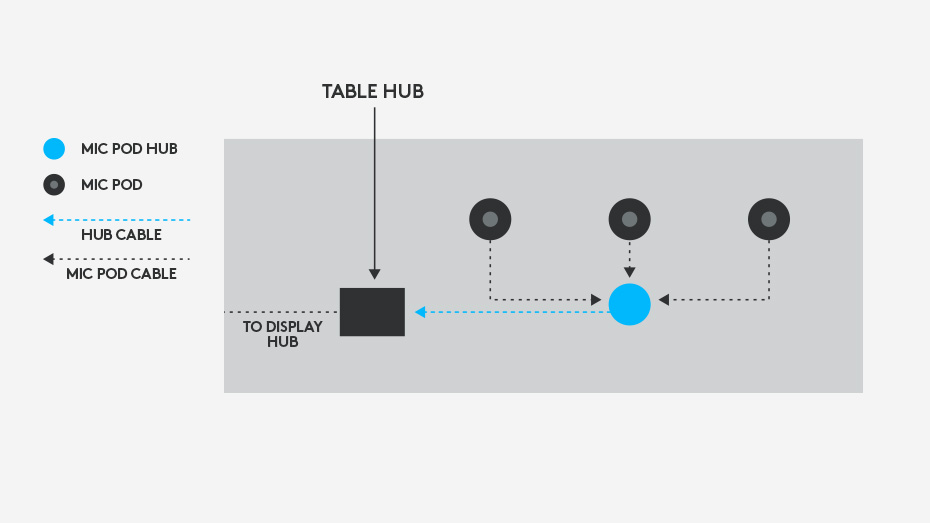

Rally Mic Pod Hubs provide installers with the flexibility to customise
microphone placement on virtually any conference table. An alternative to
daisy-chaining mic pods to one another, Rally Mic Pod Hub provides three
connections that support any combination of mic pods or additional hubs.
Under-table mounting hardware helps conceal cables for a clean look.
Features

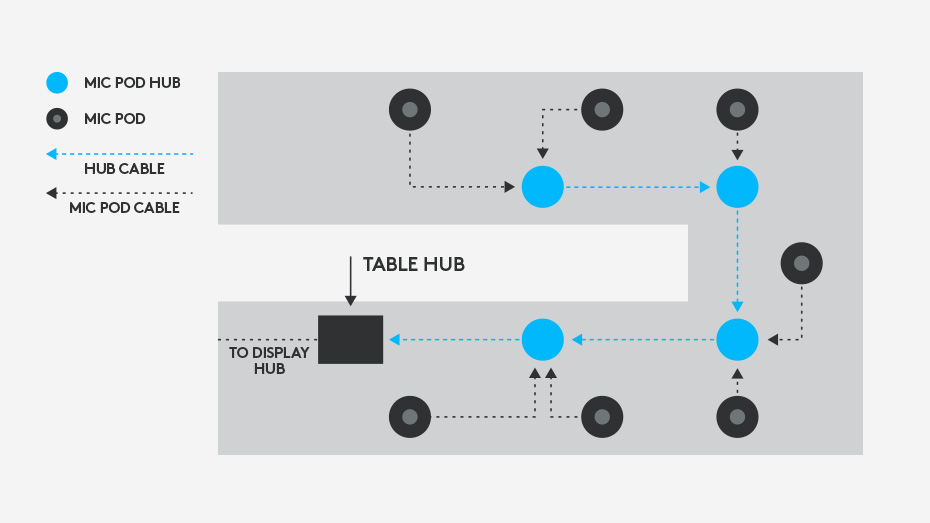

ANY TABLE SHAPE


Eliminate the back-and-forth cabling on U-shaped or asymmetrical conference
tables and add placement flexibility. With three connections for an array of mic
pods, Rally Mic Pod Hub cleans up cabling so you can place mic pods within easy
reach of meeting room participants.
HIDDEN CABLING


Eliminate cross-table cabling between mic pods by connecting them through
grommets to hubs beneath the table. This keeps audio cabling out of sight for a
professional appearance.
MIC POD MOBILITY


Rally Mic Pod Hub lets you connect each mic pod via a single cable. When
meeting participants want to move a mic pod to clear table space or to put the
mute control within easy reach, they can do so without tugging on neighboring
mic pods. Unlike systems that require fixed mic positions, Rally automatically
recalibrates the RightSound™ Mic Matrix 125 times per second for consistent echo
cancellation, noise suppression, and beamforming performance.
Specifications


    | DIMENSIONS |
 |

    | Height
      x Width x Depth | 16
      mm x 102 mm x 102 mm |

    |
 |
 |

    | SYSTEM
      REQUIREMENTS | Logitech
      Rally |

    |
 | Note:
      Rally Mic Pod Hubs work with Logitech Rally systems, and are not
      compatible with the standalone USB Rally
    Camera. |

    |
 |
 |

    | TECHNICAL
      SPECIFICATIONS | Three
      12-pin connections for any combination of Rally Mic Pods or additional
      Rally Mic Pod Hubs |

    |
 | Under-table
      mounting hardware |

    |
 |
 |

    | PACKAGE
      CONTENTS | Mic
      Pod Hub |

    |
 | Mounting
      Hardware |

    |
 | Documentation |

    |
 |
 |

    | WARRANTY
      INFORMATION | 2-Year
      Limited Hardware Warranty |

    |
 |
 |

    | PART
      NUMBER | PN:
      939-001647 |
