Logitech 960-001230 Rally Speaker

Overview
RALLY SPEAKER
Second speaker connects to Logitech Rally for clear, rich sound
  - Front-of-room audio for natural conversations

- Anti-vibration enclosure prevents camera shake

- Comfortable volume levels throughout larger rooms
LOUD AND CLEAR
Add a second speaker to Logitech Rally to fill large rooms with clear audio.
With RightSound™ technologies that virtually eliminate distortion, clipping, and
vibration, Rally Speaker makes speech easy to understand while maintaining
comfortable volume levels throughout the room.
Features

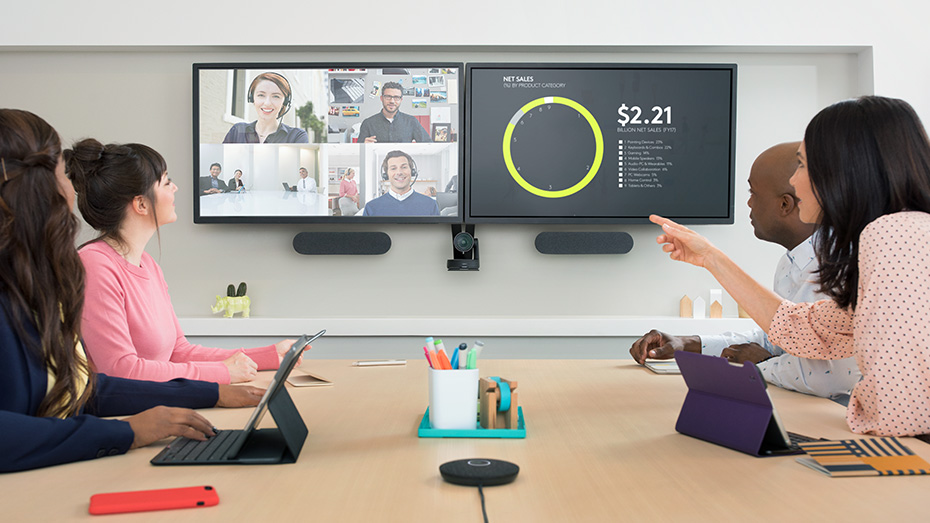

FRONT OF ROOM AUDIO


With Rally Speakers at the front of the room, voices and video always come
from the same direction — and never from behind you, a problem with tabletop
speakerphones. With Rally Mic Pods on the table and Rally Speakers at the
display, conversations feel natural and lifelike.

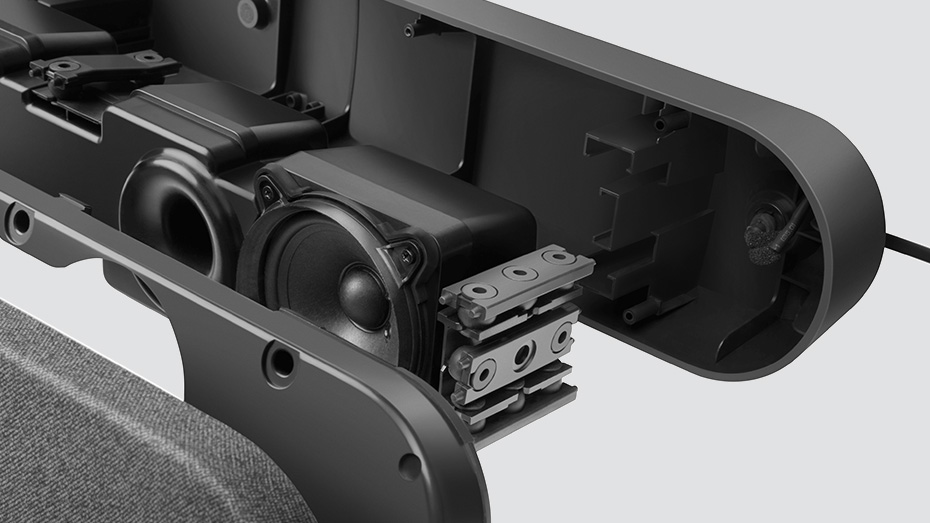

ANTI-VIBRATION ENCLOSURE


An ingenious suspension system decouples the speaker module within the
external enclosure, virtually eliminating the vibrations that can travel through
walls, stands, and tables. This patent-pending design enables the superior echo
cancelling performance of Rally Mic Pods, while ensuring that video images
remain clear and steady, even at high volume levels and when zoomed in.

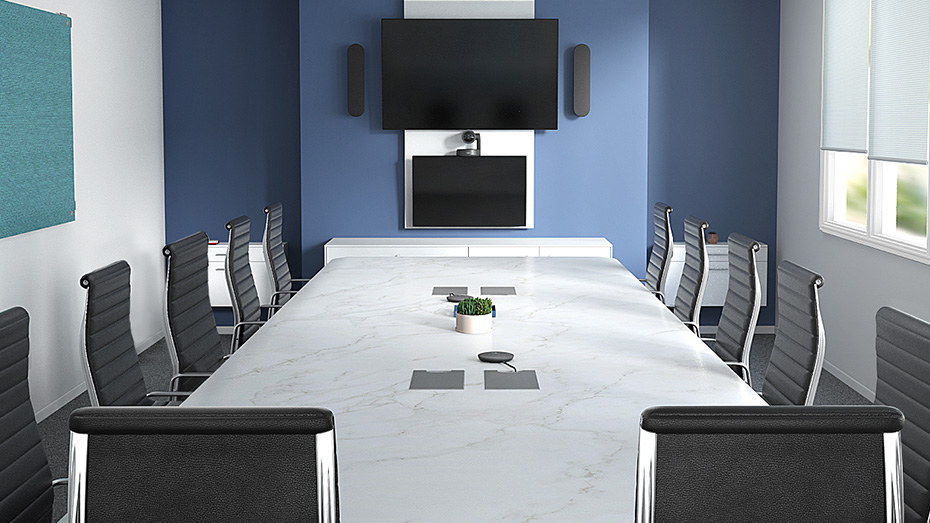

COMFORTABLE VOLUME IN LARGER ROOMS


Turn up the clarity while keeping volume at a comfortable level for everyone
in the room. With sound coming from two speakers rather than one, voices carry
throughout the room at a moderate volume level. Place speakers on a shelf or
credenza, or attach to the wall with brackets in the Rally Mounting Kit.
Specifications


    | DIMENSIONS |
 |

    | Height
      x Width x Depth | 4.05
      in (103 mm) x 17.67 in (449 mm) x 3.15 in (80mm) |

    |
 |
 |

    | YSTEM
      REQUIREMENTS | Logitech
      Rally system with one speaker |

    |
 | Maximum
      speakers per system: 2 |

    |
 |
 |

    | TECHNICAL
      SPECIFICATIONS | High-performance
      3” (76mm) driver with rare-earth magnet |

    |
 | Patent-pending
      suspension system eliminates vibration-induced camera shake and audio
      interference |

    |
 | Mini
      XLR cable connects to Rally Display Hub for both signal and
      power |

    |
 | Speaker
      volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½
    meter |

    |
 | Distortion:
      200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W |

    |
 | Speaker
      sampling rate: 48 kHz |

    |
 |
 |

    | Available
      Accessories | Rally
      Mounting Kit includes two wall-mount brackets for Rally Speaker, plus
      cable retainers (x2) and mounting brackets for camera and hubs
      (x2) |

    |
 |
 |

    | PACKAGE
      CONTENTS | Rally
      Speaker with 9.6 ft (2.95m) Mini XLR cable (supports customer-supplied
      extension cables up to 9.8 ft (3m) |

    |
 | Documentation |

    |
 |
 |

    | WARRANTY
      INFORMATION | 2-Year
      Limited Hardware Warranty |

    |
 |
 |

    | PART
      NUMBER | PN:
      960-001230 |
