Logitech 989-000430 Rally Mic Pod

Overview

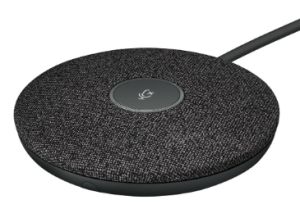

RALLY MIC POD
Modular microphones with RightSoundâ„¢ for Logitech Rally
  - Auto-levels voices and suppresses noise for clear audio

- Convenient mute control and indicator light

- Premium materials look great in any room
GOOD LOOKS MEET GREAT SOUND
Boasting a sleek, low-profile design and premium materials, Rally Mic Pods
render remarkably clear, natural, conversational sound. Individual mic pods
contain multiple beamforming elements that focus on active speakers while
automatically eliminating acoustic distractions. Up to seven mic pods work
together to form a beamforming mic matrix with consistent audio coverage for
every seating position throughout larger meeting spaces.
Features
HEAR EVERY VOICE CLEARLY
With RightSoundâ„¢ technology and multiple beamforming elements in every
individual mic pod, the audio focus is always automatically on the active
speaker. A single mic pod provides coverage for up to ten people. Larger meeting
spaces can be provisioned with up to seven mic pods working in concert to
receive and transmit remarkably clear audio for every individual at the table.
SIMPLIFIED CABLING


Up to 7 Rally Mic Pods can be daisy-chained together with a single cable
connection to the Rally table hub. For U-shaped tables or single-wire cabling
through grommets, the Rally Mic Pod Hub accessory provides three connections for
optimal positioning and to bring mute control within easy reach.
PREMIUM, LOW-PROFILE DESIGN


Rally Mic Pods are elegant and deceptively small for their remarkable range
and sensitivity. As RightSound suppresses ambient background noise by applying
acoustic echo and noise reduction, non-slip pads beneath the mic pods help to
isolate the microphones from table vibrations (like keyboard taps). Advanced
materials resist fingerprints and stains. Plus, a red LED on top of each mic pod
provides visual confirmation when muted.
AN EQUAL VOICE


RightSound voice equalization and beamforming technologies mean you don’t
need to raise your voice to be heard. Rally Mic Pod listens for every voice, not
just the loudest ones, so you can hear and understand those with softer voices
or who are seated further away. Behind the scenes, the Rally table hub can
switch between acoustic beams up to 125 times/second to smoothly capture the
most lively conversations.
ENHANCED SENSITIVITY


Rally is designed from the ground-up for maximum sensitivity with minimal
interference. By putting speakers by the screen and microphones near the
participants, Rally offers an intuitive audio experience with naturally reduced
echo and interference. But that’s not all: Rally Speaker features a
patent-pending suspension system to prevent interference from vibration and
resonance. This means that Rally Mic Pod can offer enhanced sensitivity that
tabletop speakerphone designs can’t match.
Specification


    | DIMENSIONS |
 |

    | Height
      x Width x Depth | 0.83in
      (21 mm) x 4.01 in (102 mm) x 4.01 in (102 mm) |

    |
 |
 |

    | SYSTEM
      REQUIREMENTS | Logitech
      Rally or Logitech Rally Plus |

    |
 | Note:
      Rally Mic Pods connect to the table hub included with Logitech Rally
      systems, and are not compatible with the standalone USB Rally
      Camera. |

    | RightSound
      Technologies | Machine
      learning AI trained to distinguish human speech from other
      sounds |

    |
 | AEC
      (Acoustic Echo Cancellation) |

    |
 | VAD
      (Voice Activity Detector) |

    |
 | Background
      noise suppression |

    |
 | Auto-level
      loud and soft voices |

    |
 | RightSound
      Mic Matrix |

    |
 | Factory-paired,
      very low distortion broadside beamforming algorithm steers the microphones
      directly at the talker for the best voice pickup and noise
      reduction |

    |
 | Supports
      up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active
      talker |

    |
 | Beam
      focus refresh rate: 8ms (125 times/second) |

    |
 |
 |

    | TECHNICAL
      SPECIFICATIONS |
 |

    | Pickup
      range | 15
      ft / 4.5m diameter |

    |
 | Four
      omnidirectional microphones forming eight acoustic
  beams |

    |
 | AEC
      (Acoustic Echo Cancellation) |

    |
 | VAD
      (Voice Activity Detector) |

    |
 | Background
      noise suppression |

    |
 | Mute
      button with LED status indicator |

    |
 | Captive
      9.6 ft (2.95m) 12-pin cable |

    |
 | Daisy
      chain up to 7 Rally Mic Pods |

    |
 | Frequency
      response: 90Hz – 16kHz |

    |
 | Sensitivity:
      >-27dB +/-1dB @ 1Pa |

    |
 | Microphone
      data rate: 48 kHz |

    |
 | Recommended
      # of participants: |

    |
 | Rally
      (one Mic Pod): 10 |

    |
 | Rally
      Plus (two Mic Pods): 16 |

    |
 | Additional
      participants per Mic Pod: 6 |

    |
 | Recommended
      participants for Rally with 7 Mic Pods: 46 |

    |
 |
 |

    | COMPATIBILITY
      AND CERTIFICATIONS | Certified
      for Skype for Business and ready for Teams |

    |
 | Zoom
      Certified |

    |
 | Certified
      for Google® Hangouts Meet Hardware |

    |
 | Microsoft
      Cortana® certified |

    |
 | Cisco
      Jabber® and WebEx compatible |

    |
 | Compatible
      with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video
      conferencing, recording, and broadcasting applications that support USB
      devices |

    |
 |
 |

    | PACKAGE
      CONTENTS | Rally
      Mic Pod |

    |
 | Documentation |

    |
 |
 |

    | WARRANTY
      INFORMATION | 2-Year
      Limited Hardware Warranty |

    |
 |
 |

    | PART
      NUMBER | PN:
      989-000430 |
