All stock codes associated to this product
1420812, 14208-12, 4330351, 5706991020892, JB10467, JB29180

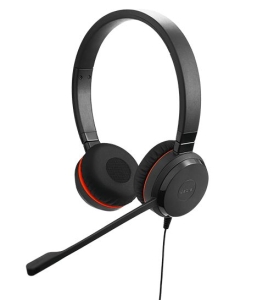

Jabra Evolve 30 MS Link Headset
Features
Professional headset with flexible connectivity and great sound for calls and
music
- Flexible connectivity
- Manage calls easily
- Plug and Play connectivity
Stay connected
Stay connected, using either USB or jack
Connect to your PC via USB or use the 3.5 mm jack for connectivity to your
personal device - such as a smartphone or tablet - to work or listen to music
wherever you may be.
Easy call management
In-line call controller with large buttons and LED indicators, making
handling of calls and music easy. Pick up or end calls, control volume, or
simply mute the line.
Get more productive
Noise-cancelling mic
State-of-the-art, noise-cancelling microphone eliminates background noise.
Your conversation partner won’t struggle to hear what you’re saying.
Plug and Play setup
Works out of the box with all leading systems. Installation is as easy as
simply plugging it in.
Compatible with your platform
All Jabra USB headsets and speakerphones work with all the most popular
online voice call services.
Our products work out of the box* and let you combine perfect sound quality
with great comfort.
Specifications
|
Packaging
dimensions |
L
23 x W 18 x H 3.5 cm |
|
Weight
mono / duo |
Mono
headset 171.1 g, Stereo headset 142.5 g |
|
What
is in the box |
Jabra
Evolve 30 headset, pouch, warning leaflet, warranty leaflet, quick start
guide, foam inlay (only available for duo), |
|
|
layer
card, poly bag |
|
Battery
included |
N/A |
|
AC
power supply |
USB
power supply by PC |
|
Certifications |
Regulatory
Approvals: CE, FCC, KCC, RCM, ULIndustrial Certifications: Skype for
Business, Lync, Avaya, Cisco |
|
Warranty |
2
years |
|
Bluetooth
device |
No |
|
DECT
device |
No |
|
NFC |
No |
|
Headset
bandwidth |
Wideband |
|
Connection
(mini jack, USB, etc.) |
USB,
3.5mm jack* |
|
Speaker
size |
D28x3.9mm |
|
Speaker
sensitivity |
93.6dB
SPL @ 1kHz |
|
Speaker
impedance |
32+/-4.8Ω,
@ 1.0kHz |
|
Speaker
max input power |
Rated
Input 5mW @ 0.4V, max input 10mW @ 0.56V |
|
Speaker
frequency range |
150Hz~7kHz,
@ Output S.P.L -10dB |
|
Microphone
type |
Electret
condenser (ECM) |
|
Microphone
sensitivity |
F=1kHz,
pin=1Pa, 0dB=1V/Pa, Min=-48dB, Max=-44dB |
|
Microphone
frequency range |
100Hz
~ 10kHz @ 6dB |
|
Speaker
bandwidth music mode |
Wideband |
|
Speaker
bandwidth speak mode |
Wideband |
|
Microphone
bandwidth |
Wideband |
|
Cord
length |
Control
cable: 95cm, HS cable: 120cm |
|
Operating
temperature |
-10˚C
to + 50˚C |
|
Storage
temperature |
-30˚C
to + 80˚C Storage temperature range: (-20˚C to +35˚C 6 months), (+35˚C to
+45˚C 3 months), (+45˚C to +45˚C 1 month), (+60˚C |
|
|
to
+70˚C 1 hour with no degradation), (+70˚C to +85˚C max. 1 hour < 20%
degradation) |
|
Power
consumption speaker |
Rated
Input 5mW @ 0.4V, max input 10mW @ 0.56V |
|
Features** |
HD
voice, PeakStopTM technology, UC Plug-and-play, noise canceling
microphone, HiFi sound, easy call management, Jabra
soft- |
|
|
ware
applications, crystal clear sound, around the ear wearing style, passive
noise cancellation, connects to multiple |
|
|
devices
(smartphone or tablet) with a 3.5mm jack. The control unit is made with
secure fit so it will stay on the table and not |
|
|
turn
over. The control unit’s large buttons and LED indicators provide quick
access. |
