Panel |
|
|
Diagonal
Size |
43" |
|
Type |
60Hz
D-LED BLU |
|
Resolution |
1920*1080
(Full HD) |
|
Pixel
Pitch(mm) |
0.16333(H)
x 0.49005(V) |
|
Active
Display Area(mm) |
940.89(H)
x 529.25(V) |
|
Brightness(Typ.) |
300
nit |
|
Contrast
Ratio |
3000:01:00 |
|
Viewing
Angle(H/V) |
178:178 |
|
Response
Time(G-to-G) |
8ms |
|
Display
Colors |
16.7
M |
|
Color
Gamut |
72% |
|
Haze |
2% |
|
|
|
|
Display |
|
|
Dynamic
C/R |
MEGA |
|
H-Scanning
Frequency |
30
~ 81kHZ |
|
V-Scanning
Frequency |
48
~ 75HZ |
|
Maximum
Pixel Frequency |
148.5MHz |
|
|
|
|
Sound |
|
|
Speaker
Type |
Built
in Speaker(10W + 10W) |
|
|
|
|

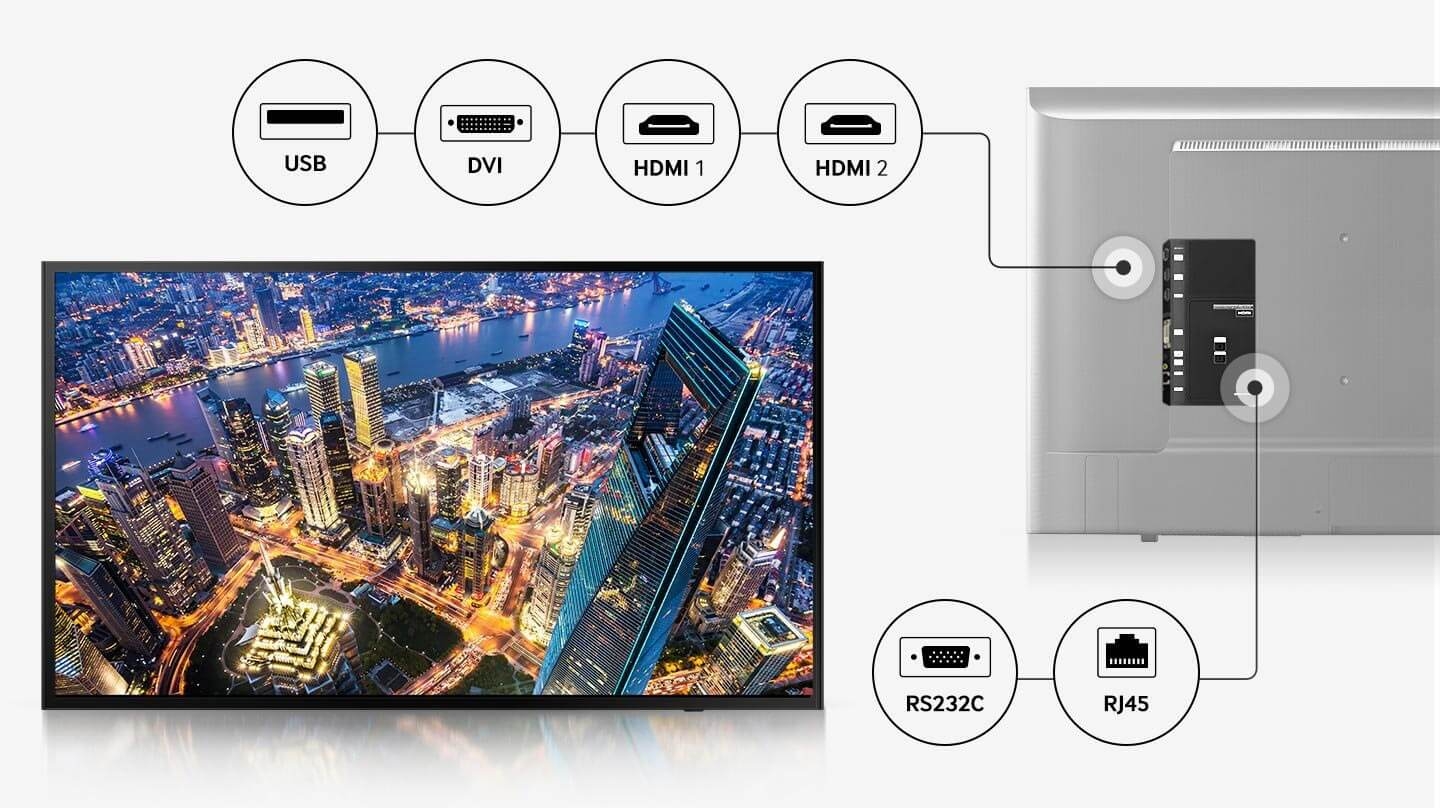

Connectivity |
|
|
Input |
|
|
RGB |
DVI-I |
|
Video |
HDMI
1.4 (2), Component(CVBS Common) |
|
HDCP |
HDCP
1.4 |
|
Audio |
Stereo
Mini Jack, RGB/DVI/HDMI/CVBS/Component Audio(Common) |
|
Usb |
USB
2.0 x 1 |
|
Output |
|
|
RGB |
N/A |
|
Video |
N/A |
|
Audio |
Stereo
Mini Jack |
|
Power
Out |
N/A |
|
External
Control |
RS232C(in)
thru stereo jack, RJ45 |
|
External
Sensor |
IR |
|
Tuner |
Yes(only
for NA/KR) |
|
Power |
|
|
Type |
Internal |
|
Power
Supply |
AC
100 - 240 V~ (+/- 10 %), 50/60 Hz |
|
|
|
|
Power
Consumption |
99 |
|
Max[W/h] |
(W/W)53,
(US)38, (KR)62 |
|
Typical[W/h] |
337 |
|
BTU(Max) |
less
than 0.5W |
|
Sleep
mode |
0 |
|
Off
mode |
|
|
|
|
|
Mechanical
Specification |
|
|
Dimension
(mm) |
|
|
Set |
985.5
X 574.8 X 73.4 |
|
Package |
1099
X 672 X 156 |
|
Weight
(kg) |
|
|
Set |
7.8 |
|
Package |
11.5 |
|
VESA
Mount (mm) |
200*200mm |
|
Mounting
Hole |
N/A |
|
Protection
Glass |
N/A |
|
Stand
Type |
N/A |
|
Media
Player Option Type |
N/A |
|
Bezel
Width (mm) |
17.3(Top),
18.3(Bottom), 21.3(Side) |
|
|
|
|
Operation |
|
|
Recommended
Usage Hours |
16/7 |
|
Operating
Temperature |
0.0
~ 40.0 |
|
Humidity |
10.0
% ~ 80.0 % |
|
|
|
|
Feature |
|
|
Key
Features |
Light
LFD with Built-in MagicInfo Lite |
|
Special
Features |
H/W
: Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock,
Clock Battery(168hrs Clock Keeping), Built in Speaker |
|
|
(10W
x 2) S/W : Auto Source Switching &Recovery, RS232C/RJ45 MDC,Plug and
Play (DDC2B), Built In MagicInfo Lite, Firmware Update by
Network |
|
|
|
|
Internal
Player |
|
|
Processor |
MIPS
24K |
|
On-Chip
Cache Memory |
L1
: 16KB/16KB L2 : 128KB |
|
Clock
Speed |
650MHz |
|
Main
Memory Interface |
512MB |
|
Graphics |
N/A |
|
Storage
(FDM) |
179MB |
|
Multimedia |
N/A |
|
IO
Ports |
N/A |
|
Operating
System |
Samsung
Proprietary OS(VDLinux) |
|
|
|
|
Certification |
|
|
Safety |
CB
(Europe) : IEC60950-1/EN60950-1 - CCC (China) : GB4943.1-2011 - PSB
(Singapore ) : PSB+IEC60950-1 - NOM (Mexico ) : NOM-001-SCFI-1993 - IRAM
(Argentina ) : |
|
|
IRAM+IEC60950-1
- SASO C96(Saudi Arabia ) : SASO+IEC60950-1 - BIS(India) : IEC60950-1 /
IS13252 - NOM(Mexico) : Tunerless : NOM-019-SCFI-1998 - KC(C97Korea) :
|
|
|
K
60950-1 - EAC(Russia) : EAC+IEC60950-1 - INMETRO(Brazil) :
INMETRO+IEC60950-1 - BSMI(Taiwan) |
|
|
:
BSMI+IEC60950-1 - RCM(Australia) : IEC60950-1/AS/NZS 60950-1 - CSA
(Canada) : cUL - UL(USA) : cUL60950-1 - TUV (Germany) : CE - NEMKO
(Norway) : CE |
|
|
|
|
EMC |
"-
FCC (USA) Part 15, Subpart B Class A - CE (Europe) : EN55022:2006+A1:2007,
EN55024:1998+A1:2001+A2:2003 - VCCI (Japan) : VCCI V-3 /2010.04 Class A -
KCC/EK (Korea) : |
|
|
Tunerless
: KN22 / KN24 - BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV
EMI) / CNS14409 (AV EMS) CNS14972 (Digital) |
|
|
-
C-Tick (Australia) : AS/NZS CISPR22:2009 - CCC(China) :GB9254-2008,
GB17625.1-2012 - |
|
|
GOST(Russia/CIS)
: GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007,
EN55024:1998+A1:2001+A2:2003" |
|
|
|
|
Accessory |
|
|
Included |
Quick
Setup Guide, Regulatory Guide, Warranty Card,Power Cord, Remote
Controller, Batteries, RS232C(IN) adapter,ANT Shield Box(Only for
KR) |
|
|
|
|
Optional |
|
|
Stand |
N/A |
|
Mount |
WMN4070SE |
|
Specialty |
N/A |
|
|
|
|
Media
Player |
SBB
(Not attatchable) |
