All stock codes associated to this product
CBN-9RU-66SFS, CBN9RU66SFS, 9352399005489

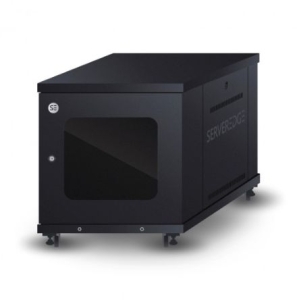

Serveredge CBN-9RU-66SFS 9RU Fully Assembled Free
Standing Server Cabinet
Descriptions
9RU Fully Assembled Free Standing Cabinet - 600W x 600D x 577H, Toughened
Glass Door, Quick Release Lockable Side Panel, L-Shaped Rails, 1 X Shelf, Cut
Out Slots for Fans, 20 X Cage Nuts, 4 X Castors with Brakes
Serveredge CBN-9RU-66SFS fully assembled rack enclosure is a perfect solution
for securely storing your standard rack mount equipment. This free standing rack
has been especially designed for applications for use with AV equipment, Small
Servers, Patch Panels, Switches, Security Systems and Telephone Systems. This
premium Serveredge Cabinet is packed with features designed to simplify rack
equipment installations and rack equipment maintenance: Cable routing glands
from both top and bottom, removable back panel efficient airflow, adjustable
mounting rails, Removable back panel, Fan cutouts for fans, front tempered glass
door and much more. The server rack ships fully assembled for quick installation
and comes with a 25-year manufacturer’s warranty.
Features
- Designed for limited space environments where equipment needs to be secure
and out of the way
- Adjustable front vertical rack mount rails
- Locking, reversible front door and locking, removable side panels
- Hinged cabinet swings away from wall bracket for easy equipment
- Dual fan cutouts
- Gland Plates at top and bottom for cable routing
- Fully assembled for quick installation
- Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194;
PAT7, GB/T3047M 2-92
- Warranty : 25-year
Specifications
|
Installed
whole system maximum rack depth (mm) |
500 |
|
Rack
Height |
9RU |
|
Shipping
Dimensions (WDH/mm) |
650
X 650 X 627 |
|
Shipping
weight (kg) |
32 |
|
Unit
Dimensions (WDH/mm) |
600
X 600 X 577 |
|
Unit
weight (kg) |
26 |
|
Colour |
Black |
|
Weight
Capacity - Stationary (kg) |
80 |
|
Grounding
lug |
Front
and Back Door Frames |
|
Fixed
Shelves depth (mm) |
350 |
|
|
|
|
PRODUCT
INCLUDES |
|
|
Free
Standing Rack |
1 |
|
M6
screws |
20 |
|
M6
cage nuts |
20 |
|
M6
washers |
20 |
|
Fixed
Shelf |
1 |
|
Keys |
2 |
|
Castors |
4 |
