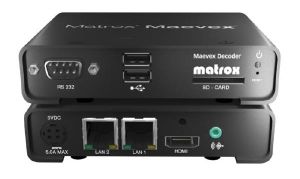

MVX-ED5150F | Matrox Maevex AV-over-IP Encoder/Decoder Bundle

The Matrox Maevex video distribution over IP solution consists of the Maevex 5100 Series encoders and decoders that can extend or record up to 1080p60 video and audio over a standard IP network at user-defined low bit rates for excellent quality and minimal network bandwidth consumption. The Maevex encoder streams or records high-quality video and audio and uses the H.264 video compression standard. It can stream to Maevex decoders or any device or PC that supports the required network protocols. It can also record to a shared network or NAS drive. The robust Matrox PowerStream software is included with the hardware and is used to remotely discover, manage, and adjust the Maevex network

Extend/record up to Full HD 1080p60 and 1920x1200 video and audio
H.264 compression for high-quality, low-bandwidth AV-over-IP
Support for wide-screen &standard aspect ratios and many resolutions
Scale streams before distribution for lower bandwidth consumption
HDMI or analog audio support
Open encoding allows for third-party software decode (e.g. VLC)
Record up to 1080p60/1920x1200 to NAS or shared network drive
Control frequency and duration of recording
Schedule the start time and date of recording sessions
Recorded user-defined file name includes timestamp for easy file management
Network Management: Operates on standard 100/1000Mb Ethernet networks
Auto-detect and discover Maevex units on subnet (DHCP server required)
Full/half-duplex mode and static IP address support
CBR, VBR support
Network bit-rate control (100 Kbps - 25 Mbps)
Failsafe: Play back pre-recorded content at the decoder in case of a network disruption or if encoder stops streaming (e.g. loss of power)
Programmable time delay before failsafe activates
Maevex API:
Integrate Maevex features in existing or new control software
Based on easy-to-use .NET programming language
Provided to select developers (no cost/license-free)
PowerStream Control Software:
Remotely manage Maevex network from different locations
Conveniently access IP address, bit rate, and other vitals
Fine-tune encode/decode parameters and adjust bit rates
Scale &crop content to fit different outputs
Other Benefits:
Daisy-chain decoders &extend network via integrated network switch
Failure resilience-power, network, and device auto-recovery features
Full duplex RS-232 control (pt. to pt.)
Reliable, solid-state, energy-efficient design
Local real-time pass-through and confidence preview on encoder
PowerStream-controlled user access from secured PC
Detailed LED indicators for easy and effective troubleshooting

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 year return to base

Full manufacturers warranty details are available at the manufacturers (Matrox) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
