HARDWARE
FEATURES |
|
Standards
and Protocols |
IEEE
802.3i, IEEE 802.3u, IEEE 802.3ab, |
|
IEEE
802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE
802.1s, |
|
IEEE
802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|
Interface |
8
10/100/1000Mbps RJ45 Ports |
|
(Auto-Negotiation/Auto
MDI/MDIX) |
|
Network
Media |
10BASE-T:
UTP category 3, 4, 5 cable (maximum 100m) |
|
100BASE-TX/1000Base-T:
UTP category 5, 5e or above cable |
|
(maximum
100m) |
|
Fan
Quantity |
Fanless |
|
Power
Supply |
12
VDC/1 A |
|
External
Adapter or |
|
Obtain
Power from |
|
PoE
Source |
|
Power
Consumption |
6.4
W |
|
Dimensions
( W x D x H ) |
8.2
4.9 1.0 in. |
|
(209
126 26 mm) |
|
PERFORMANCE |
|
Bandwidth/Backplane |
16
Gbps |
|
Packet
Forwarding Rate |
11.9
Mpps |
|
MAC
Address Table |
8K |
|
Jumbo
Frame |
9
KB |
|
SOFTWARE
FEATURES |
|
Quality
of Service |
802.1p
CoS/DSCP priority |
|
8
priority queues |
|
Priority
Schedule Mode |
|
-
SP (Strict Priority) |
|
-
WRR (Weighted Round Robin) |
|
Queue
Weight Config |
|
Bandwidth
Control |
|
-
Port/Flow based Rating Limit |
|
Smoother
Performance |
|
Storm
Control |
|
-
Multiple Control Modes(kbps/ratio) |
|
-
Broadcast/Multicast/Unknown-Unicast Control |
|
L2
and L2+ Features |
16
IP Interfaces |
|
-
Support IPv4/IPv6 Interface |
|
Static
Routing |
|
-
32 IPv4/IPv6 Static Routes |
|
DHCP
Server |
|
DHCP
Relay |
|
-
DHCP Interface Relay |
|
-
DHCP VLAN Relay |
|
DHCP
L2 Relay |
|
Static
ARP |
|
Proxy
ARP |
|
Gratuitous
ARP |
|
Link
Aggregation |
|
-
Static link aggregation |
|
-
802.3ad LACP |
|
-
Up to 8 aggregation groups and up to 8 ports |
|
per
group |
|
Spanning
Tree Protocol |
|
-
802.1D STP |
|
-
802.1w RSTP |
|
-
802.1s MSTP |
|
-
STP Security: TC Protect, BPDU Filter/Protect, |
|
Root
Protect |
|
Loopback
Detection |
|
Flow
Control |
|
-
802.3x Flow Control |
|
Mirroring |
|
-
Port Mirroring |
|
-
CPU Mirroring |
|
-
One-to-One |
|
-
Many-to-One |
|
-
Flow-Based |
|
-
Ingress/Egress/Both |
|
Device
Link Detect Protocol (DLDP) |
|
802.1ab
LLDP/ LLDP-MED |
|
VLAN |
VLAN
Group |
|
-
Max. 4K VLAN Groups |
|
802.1Q
tag VLAN |
|
MAC
VLAN |
|
Protocol
VLAN |
|
GVRP |
|
Voice
VLAN |
|
Access
Control List |
Support
up to 230 entries |
|
Time-Range |
|
-
Time Slice |
|
-
Week Time-Range |
|
-
Absolute Time-Range |
|
-
Holiday |
|
Time-based
ACL |
|
MAC
ACL |
|
-
Source MAC |
|
-
Destination MAC |
|
-
VLAN ID |
|
-
User Priority |
|
-
Ether Type |
|
IP
ACL |
|
-
Source IP |
|
-
Destination IP |
|
-
IP Protocol |
|
-
TCP Flag |
|
-
TCP/UDP Source Port |
|
-
TCP/UDP Destination Port |
|
-
DSCP/IP TOS |
|
IPv6
ACL |
|
Combined
ACL |
|
Rule
Operation |
|
-
Permit/Deny |
|
Policy
Action |
|
-
Mirror |
|
-
Rate Limit |
|
-
Redirect |
|
-
QoS Remark |
|
ACL
Rules Binding |
|
-
Port Binding |
|
-
VLAN Binding |
|
Actions
for flows |
|
-
Mirror (to supported interface) |
|
-
Redirect (to supported interface) |
|
-
Rate Limit |
|
-
QoS Remark |
|
Security |
AAA |
|
802.1X |
|
-
Port based authentication |
|
-
MAC (Host) based authentication |
|
-
Authentication Method includes PAP/EAP-MD5 |
|
-
MAB |
|
-
Guest VLAN |
|
-
Support Radius authentication and |
|
accountability |
|
IP/IPv6-MAC
Binding |
|
-
512 Binding Entries |
|
-
DHCP Snooping |
|
-
DHCPv6 Snooping |
|
-
ARP Inspection |
|
-
ND Detection |
|
IP
Source Guard |
|
-
253 Entries |
|
-
Source IP+Source MAC |
|
IPv6
Source Guard |
|
-
183 Entries |
|
-
Source IPv6 Address+Source MAC |
|
DoS
Defend |
|
Static/Dynamic/Permanent
Port Security |
|
-
Up to 64 MAC addresses per port |
|
Broadcast/Multicast/Unicast
Storm Control |
|
-
kbps/ratio control mode |
|
Port
Isolation |
|
Secure
web management through HTTPS with |
|
SSLv3/TLS
1.2 |
|
Secure
Command Line Interface (CLI) |
|
management
with SSHv1/SSHv2 |
|
IP/Port/MAC
based access control |
|
Management |
Web-based
GUI |
|
Command
Line Interface (CLI) through telnet |
|
SNMPv1/v2c/v3 |
|
SNMP
Trap/Inform |
|
RMON
(1,2,3,9 groups) |
|
SDM
Template |
|
DHCP/BOOTP
Client |
|
Dual
Image, Dual Configuration |
|
CPU
Monitoring |
|
Cable
Diagnostics |
|
EEE |
|
SNTP |
|
System
Log |
|
OTHERS |
|
Certification |
CE,
FCC, RoHS |
|
Package
Contents |

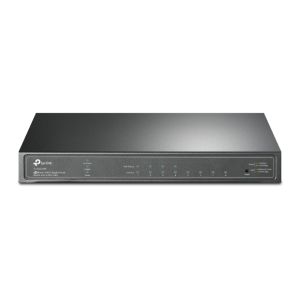

TL-SG2008 |
|
Power
Adapter |
|
Installation
Guide |
|
Rubber
Feet |
|
Environment |
Operating
Temperature: 0~40 (32~104); |
|
Storage
Temperature: -40~70 (-40~158) |
|
Operating
Humidity: 10%~90% non-condensing |
|
Storage
Humidity: 5%~90%
non-condensing |
