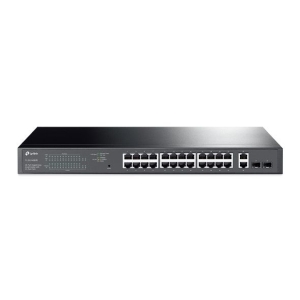

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart PoE Switch with
24-Port PoE+
Overview
- 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
- PoE power budget is up to 250 W*, making it ideal for small to medium
business surveillance systems
- Priority Mode helps to guarantee the quality of sensitive application like
video monitoring
- PoE Auto Recovery enables system self-healing to guarantee the stable
operation of PoE-connected devices
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable
of optimizing traffic for IPTV
- Intelligent power management can protect the switch from overload
Specifications
|
HARDWARE
FEATURES |
|
Standards
and Protocols |
IEEE
802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
|
IEEE
802.3af, IEEE 802.3at, IEEE 802.1q, IEEE
802.1p |
|
Interface |
26
10/100/1000 Mbps RJ45 Ports |
|
2
Gigabit SFP Ports |
|
Network
Media |
10BASE-T:
UTP category 3, 4, 5 cable (maximum 100m) |
|
EIA/TIA-568
100 STP (maximum 100m) |
|
100BASE-TX:
UTP category 5, 5e cable (maximum 100m) |
|
EIA/TIA-568
100 STP (maximum 100m) |
|
1000BASE-T:
UTP category 5, 5e, 6 or above cable (maximum
100m) |
|
EIA/TIA-568
100 STP (maximum 100m) |
|
1000BASE-X
MMF, SMF |
|
Fan
Quantity |
2
Fans |
|
Physical
Security Lock |
Yes |
|
Power
Supply |
100-240V
AC, 50/60 Hz |
|
PoE+
Ports(RJ45) |
Standard:
802.3at/802.3af compliant |
|
PoE+
Ports: 24 Ports |
|
Power
Supply: 250 W |
|
Dimensions
( W x D x H ) |
17.3
8.7 1.73 in (440 220 44 mm) |
|
Mounting |
Rack
Mountable |
|
Max
Power Consumption |
27
W (220/50Hz. no PD connected) |
|
304.7
W (220/50Hz. with 250 W PD connected) |
|
Max
Heat Dissipation |
92.07
BTU/h (no PD connected) |
|
1039.03
BTU/h (with 250 W PD connected) |
|
PERFORMANCE |
|
Switching
Capacity |
56
Gbps |
|
Packet
Forwarding Rate |
41.7
Mbps |
|
MAC
Address Table |
8K |
|
Packet
Buffer Memory |
4.1
Mbit |
|
Jumbo
Frame |
9
KB |
|
SOFTWARE
FEATURES |
|
Quality
of Service |
Support
Port-based 802.1p/DSCP priority |
|
Support
4 priority queues |
|
Rate
Limit |
|
Storm
Control |
|
L2
Features |
IGMP
Snooping V1/V2/V3 |
|
Static
Link Aggregation |
|
Port
Mirroring |
|
Cable
Diagnostics |
|
Loop
Prevention |
|
PoE
Auto Recovery |
|
VLAN |
Support
up to 32 VLANs simultaneously (out of 4K VLAN
IDs) |
|
MTU/Port/Tag
VLAN |
|
Management |
Web-Based
GUI |
|
Easy
Smart Configuration Utility |
|
Transmission
Method |
Store-And-Forward |
|
OTHERS |
|
Certification |
CE,
FCC, RoHS |
|
Package
Contents |
TL-SG1428PE |
|
Power
Cord |
|
Installation
Guide |
|
Rackmount
Kit |
|
Rubber
Feet |
|
Environment |
Operating
Temperature: 0C~50C (32F~122F) |
|
Storage
Temperature: -40C~70C (-40F~158F) |
|
Operating
Humidity: 10% ~ 90% non-condensing |
|
Storage
Humidity: 5%~90%
non-condensing |
