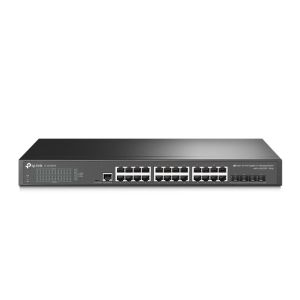

TP-Link TL-SG3428X JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots



Overview

  • 10G Lightning-Fast Uplink: 4 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Gigabit Speeds: 24 gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Specifications

HARDWARE FEATURES

Interface

24x 10/100/1000 Mbps RJ45 Ports

4x 10G SFP+ Slots

1x RJ45 Console Port

1x Micro-USB Console Port

Fan Quantity

Fanless

Power Supply

100-240 V AC~50/60 Hz

Dimensions ( W x D x H )

17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm)

Mounting

Rack Mountable

Max Power Consumption

23.6 W (110V/60Hz)

Max Heat Dissipation

80.353 BTU/h (110 V/60 Hz)

PERFORMANCE

Switching Capacity

128 Gbps

Packet Forwarding Rate

95.23 Mpps

MAC Address Table

16 K

Jumbo Frame

9 KB

SOFTWARE FEATURES

Quality of Service

8 priority queues

802.1p CoS/DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

Bandwidth Control

- Port/Flow based Rating Limiting

Smoother Performance

Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

L2 and L2+ Features

Link Aggregation

- static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups, containing 8 ports per group

Spanning Tree Protocol

- 802.1d STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter, Root Protect

Loopback Detection

- Port based

- VLAN based

Flow Control

- 802.3x Flow Control

- HOL Blocking Prevention

Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Tx/Rx/Both

L2 Multicast

IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- IGMP Authentication

IGMP Authentication

MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

- Limited IP Multicast

MVR

Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

VLAN Group

- Max 4K VLAN Groups

802.1Q Tagged VLAN

MAC VLAN: 7 Entries

Protocol VLAN: Protocol Template 16, Protocol VLAN 16

Private VLAN

GVRP

VLAN VPN (QinQ)

- Port-Based QinQ

- Selective QinQ

Voice VLAN

Access Control List

Time-based ACL

MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

IP ACL

-Source IP

- Destination IP

- Fragment

- IP Protocol

- TCP Flag

- TCP/UDP Port

- DSCP/IP TOS

- User Priority

Combined ACL

Packet Content ACL

IPv6 ACL

Policy

- Mirroring

- Redirect

- Rate Limit

- QoS Remark

ACL apply to Port/VLAN

Security

IP-MAC-Port Binding

- 512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard: 100 Entries

IPv6-MAC-Port Binding

- 512 Entries

- DHCPv6 Snooping

- ND Detection

- IPv6 Source Guard: 100 Entries

DoS Defend

Static/Dynamic Port Security

- Up to 64 MAC addresses per port

Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

802.1X

- Port base authentication

- Mac base authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Support Radius authentication andaccountability

AAA (including TACACS+)

Port Isolation

Secure web management through HTTPS with SSLv3/TLS 1.2

Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IP/Port/MAC based access control

IPv6

IPv6 Dual IPv4/IPv6

Multicast Listener Discovery (MLD) Snooping

IPv6 ACL

IPv6 Interface

Static IPv6 Routing

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

L3 Features

16 IPv4/IPv6 Interfaces

Static Routing

- 48 static routes

Static ARP

- 128 Static Entries

Proxy ARP

Gratuitous ARP

DHCP Server

DHCP Relay

- DHCP Interface Relay

- DHCP VLAN Relay

DHCP L2 Relay

Management

Web-based GUI

Command Line Interface (CLI) through the console port, telnet

SNMP v1/v2c/v3

- Trap/Inform

- RMON (1,2,3,9 groups)

SDM Template

DHCP/BOOTP Client

802.1ab LLDP/LLDP-MED

DHCP AutoInstall

Dual Image, Dual Configuration

CPU Monitoring

Cable Diagnostics

EEE

Password Recovery

SNTP

System Log

Advanced Features

Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller

Automatic Device Discovery

Batch Configuration

Batch Firmware Upgrading

Intelligent Network Monitoring

Abnormal Event Warnings

Unified Configuration

Reboot Schedule

ZTP (Zero-Touch Provisioning)*

MIBs

MIB II (RFC1213)

Interface MIB (RFC2233)

Ethernet Interface MIB (RFC1643)

Bridge MIB (RFC1493)

P/Q-Bridge MIB (RFC2674)

RMON MIB (RFC2819)

RMON2 MIB (RFC2021)

Radius Accounting Client MIB (RFC2620)

Radius Authentication Client MIB (RFC2618)

Remote Ping, Traceroute MIB (RFC2925)

Support TP-Link private MIB

OTHERS

Certification

CE, FCC, RoHS

Package Contents

TL-SG3428X Switch

Power Cord

Quick Installation Guide

Rackmount Kit

Rubber Feet

Environment

Operating Temperature: 045 (32113 );

Storage Temperature: -4070 (-40158 )

Operating Humidity: 1090% RH non-condensing

Storage Humidity: 590% RH non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 60 Month Manufacturers Return To Base
