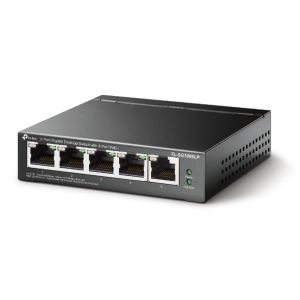

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+, Up To 40W For All POE Ports, Up To 30W Each Port

IMG 1 of 3
Our Price:
$83.65
RRP:
$89.00
You Save:
$5.35
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
489522
(?) Brand:
TP-Link
Manuf No:
TL-SG1005LP
TLSG1005LP
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
26/1/2021
Details Files Images & Video
All stock codes associated to this product
TLSG1005LP, TL-SG1005LP, NWTLSG1005LP, NWTL-SG1005LP, TL-SG1005LP, 5042513, 6935364052720, II40698
TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

5 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 40 W for all PoE ports*
Plug and play, no configuration and installation required

HARDWARE FEATURES
Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate 7.44 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 14
Power Supply: 40 W
Mac Address Table 2K
Jumbo Frame 16 KB
Switching Capacity 10 Gbps
Dimensions ( W x D x H ) 3.93.91.0 in (99.89825 mm)
Max Power Consumption 4.12 W (220/50 Hz. no PD connected)
47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation 14.05 BTU/h (no PD connected)
161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store-And-Forward

OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1005LP
Power Adapter
Installation Guide
Environment Operating Temperature: 040 (32104 );
Storage Temperature: -4070 (-40158 )
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 60 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
