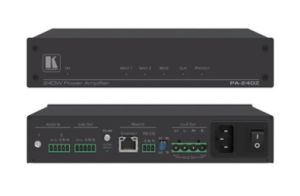

PA-240Z | Kramer Power Amplifier - 240W

Kramer 240W Power Amplifier

Overview

• 1 x 240W @ 70V/100V
• 2 x 120W @ 4/8
• Line-level output
• 2 Inputs with individual gain
• Selectable high-pass filter
• Controllable via RS-232 and IP
• Auto standby
• Built-in DSP

PA240Z is a highperformance, selectable HiZ (70V/100V) or LoZ (4/8) power amplifier featuring balanced and unbalanced inputs and additional linelevel output. This versatile amplifier features builtin DSP, autostandby and maximum durability. PA240Z is suitable for a vast range of AV installations.

• High-performance Amplifier With built-in DSP and additional balanced stereo line-level output. PA-240Z features flat frequency response, unmatched sonic performance, excellent signal to noise ratio, and extraordinarily low distortion levels.
• Adaptable to Any AV Installation Switch between Lo-Z and Hi-Z to accommodate any type of loudspeaker installation. Select 1 Channel of 240W into a 70V/100V line or 2 channels of 120W into 4/8.
• Individual Mix Per Output Each output supports an independent input mix with master volume, 3-band parametric EQ, and selectable high-pass filter. Create one output mix and EQ settings suitable for the venue and another for recording or cascading more amplifiers, powered speakers or subwoofers according to any AV installation requirements.
• Professional, Studio Grade Signal Conversion Technology Includes the latest generation 32-bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
• Durable and Reliable PA-240Z is immune to failure. It includes layers of protection against over-current, DC voltage at the outputs, high frequency, and over-heating with intelligent, heat-sensitive fans for added protection.
• Flexible Control Options Control locally via RS-232 serial commands or remotely, via embedded web pages over Ethernet.
• Power Efficient This super-efficient amplifier includes auto-standby for power saving and cost reducing operation. No need to rely on default auto-standby settings. Adjust your noise floor threshold based on exactly when your amplifier needs to go into sleep mode and when it needs to wake up.
• Easy Installation 1/2 19" size enables mounting in a 1U rack space with the recommended rack adapter.

APPLICATIONS

• Medium to large meeting rooms
• Auditoriums and lecture halls
• Court rooms
• Retail stores and shopping centers
• Hotel lobbies
• Transportation hubs
