HYPERD/AVIDA03/5 | BlackMagic Video Assist 5" 3G

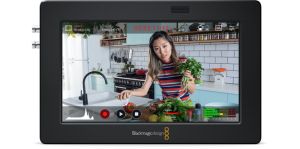

Blackmagic Video Assist 5" 3G

Overview

Blackmagic Video Assist 53G is a portable monitor, aprofessional recorder, aportable scope and afantastic camera viewfinder solution! Youcan also add better quality record codecs and alarger monitor to any SDI or HDMI camera! Thenew design has innovations such as 4 built in scopes, enhanced focus assist features, atally indicator and built in 3D LUTs. The Video Assist 53G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 53G really is 4 products inone!

Connections

SDI Video Inputs

• 1 x Micro BNC

SDI Video Outputs

• 1 x Micro BNC

SDI Rates

• 270Mb, 1.5G, 3G

HDMI Video Inputs

• 1

HDMI Video Outputs

• 1

Analog Audio Inputs

• None, embedded audio only.
• Analog Audio Outputs
• 1 x 3.5mm headphone jack.

Built in Speaker

• Mono

Screen Dimensions

• 5 inch 1920 x 1080.

Screen Brightness

• 300nits

SDI Audio Inputs

• 16 channels embedded via SDI

SDI Audio Outputs

• 16 channels embedded via SDI

HDMI Audio Inputs

• 8 channels embedded via HDMI

HDMI Audio Outputs

• 8 channels embedded via HDMI

Remote Control

• None

SD Interface

• 1 x UHS-I SD slot.

Storage Type

• SDXC UHS-I and SDHC UHS-I SD cards.
• Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.

Computer Interface

• 1 x USB TypeC for webcam out, initial setup, software updates and Video Assist Utility software control.
