All stock codes associated to this product
JCD612, 15AJCD612, 15A-JCD612, 4712795085648, 6818921
j5create USB-C to 4K 60 Hz HDMI Travel Dock for iPad Pro
Overview
The JCD612 was designed specifically for iPad Pro with USB-C connection,
allowing you to connect to an additional 4K60 display via HDMI. Even with a
smaller size, it gives you plenty of ports with a USB 3.0 port, SD and microSD
car reader, and easy connection to the 3.5 mm audio jack for microphone and
speaker. This travel dock also supports Power Delivery 3.0, providing up to 100W
pass-through charging for your host device while powering up the dock along with
the attached peripherals.

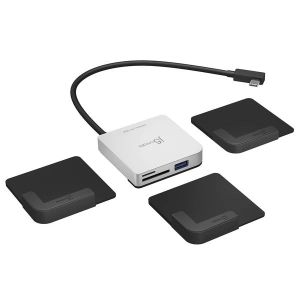

The JCD612 fits flush on the corner of the iPad Pro with or without a case
thanks to the included removable pads with soft rubber. It also features a 90
angled host connector for easy connection. Without the pads, you got yourself a
mini USB-C dock that fits into any workspace.
Features
- Designed to fit flush on the corner of the iPad Pro 11" or 12.9" with or
without a case
- Easily add a HDMI video output, supporting resolution up to 4K at 60
Hz
- Power and charge your laptop with up to 100W Power Delivery (3.0)
pass-through charging and power your connected peripherals when its used with
a USB-C power adapter
- Right-angled host connector for your comfort
- Includes 3 removable pads with soft rubber for secure and flexible
mounting options
- SuperSpeed USB ports: 1 x USB-C and 1 x USB Type-A with up to 5 Gbps data
transfer speed
- Connect your headphone/speaker through the 3.5mm audio
jack
- Direct access to SD & microSD memory cards for data storage and
transfer
- Thunderbolt 3 compatible
Specifications
|
Hardware |
|
|
Audio
Supported |
Yes |
|
Host
Connector |
1
- USB-C Male |
|
Network
Interface |
N/A |
|
Ports |
1
- 4K HDMI |
|
1
- USB-C 3.1 with Power Delivery 3.0 & data
transfer |
|
1
- USB 3.1 Type-A |
|
1
- SD & microSD memory card reader/writer |
|
1
- 3.5 mm combo audio jack |
|
Power
Source |
Bus-powered |
|
Video
Output |
1
- HDMI Female |
|
Warranty |
2-Year
Limited |
|
Performance |
|
|
Audio
Channel |
2.1
via HDMI / 3.5 mm Aux |
|
Compatible
Networks |
N/A |
|
Displays
Supported |
1 |
|
Max
Data Transfer Rate |
5
Gbps |
|
Max
Display Refresh Rate |
60
Hz |
|
Max
Display Resolution |
3840
x 2160 |
|
Power |
|
|
Input
Current |
5A |
|
Input
Voltage |
20V |
|
Output
Current |
5A |
|
Output
Voltage |
20V |
|
Power
Consumption |
450mA |
|
Power
Delivery |
Up
to 100W via USB-C |
|
Physical
Specifications |
|
|
Cable
Length |
8.3
in (211 mm) |
|
Color |
Silver,
Black |
|
Enclosure
Type |
Aluminum |
|
Operating
Humidity |
<
85% non-condensing |
|
Operating
Temperature |
32
to 118F (0 to 48C) |
|
Product
Depth |
0.56
in (14.2 mm) |
|
Product
Height |
5.33
in (135 mm) |
|
Product
Weight |
3.17
oz (90g) |
|
Product
Width |
2
in (50.8 mm) |
|
Storage
Humidity |
<
85% non-condensing |
|
Storage
Temperature |
14
to 149F (-10 to
65C) |
