All stock codes associated to this product
13NEC-M321, M321, 5028695117310

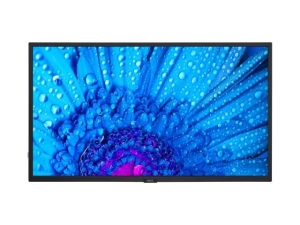

NEC MultiSync M321 LCD 32" Message Large Format
Display
Overview
Intuitive professional content delivery
For economical signage in 24/7 commercial environments, the 32 MultiSync M321
delivers all the professional performance and features you need, whilst
minimising the cost of ownership. With a 450 cd/m2 brightness output and
anti-glare panel, the viewer enjoys excellent visual quality unhindered by
reflections, with a slim, aesthetic design for unobtrusive
integration.
Featuring multiple industry standard digital and analogue signal inputs, the
M321 is future-proof for flexible integration. It also features full external
control support through both RS-232 or LAN connectivity enabling operators to
achieve time and cost savings when managing an estate of
displays.
The full metal chassis, high end componentry and integrated schedule function
affords peace of mind for extended runtimes, ideal for retail and transportation
applications.
Benefits
- Modern and slim design robust yet elegant allowing for an unobtrusive
integration into any application and environment.
- Secure remote management control your devices remotely and securely using
NEC NaviSet Administrator 2; proactively manage maintenance requirements
saving time and resources
- Unhindered readability no reflections from windows or other light sources
means no disruption to the visibility of signage content or meeting room
presentation
- Mission-critical 24/7 ready operation the meticulous selection of
industrial-grade components and careful design focused on demanding usage
scenarios accompany an impressive and continuous viewer experience.
- Future Ready Connectivity featuring multiple industry standard digital and
analogue signal inputs for flexible integration into AV
infrastructures.
Specifications
|
DISPLAY |
|
|
Panel
Technology |
IPS
with Edge LED backlights |
|
Screen
Size [inch/cm] |
32
/ 80 |
|
Aspect
Ratio |
16:09 |
|
Brightness
[cd/m] |
450 |
|
Contrast
Ratio (typ.) |
1100:01:00 |
|
Viewing
Angle [] |
178
horizontal / 178 vertical (typ. at contrast ratio
10:1) |
|
Colour
Depth [bn] |
16.7
(8bit) |
|
Response
Time (typ.) [ms] |
8 |
|
Panel
Refresh Rate [Hz] |
60 |
|
Haze
Level [%] |
Pro
(28) |
|
Supported
Orientation |
Face
Up 1; Landscape; Portrait |
|
SYNCHRONISATION
RATE |
|
|
Horizontal
Frequency [kHz] |
26
- 91.1 |
|
Vertical
Frequency [Hz] |
23
- 86 |
|
RESOLUTION |
|
|
Native
Resolution |
1920
x 1080 |
|
Supported
Resolutions |
1024
x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x
900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x
1440;2560 x 1600;3840 x 2160;4096 x 2160 |
|
CONNECTIVITY |
|
|
Input
Video Digital |
1
x DisplayPort (with HDCP); 2 x HDMI (with
HDCP) |
|
Input
Audio Digital |
1
x DisplayPort; 2 x HDMI |
|
Input
Control |
LAN
100Mbit; remote control wire (3,5mm jack);
RS232 |
|
Input
Data |
1
x USB 2.0 (MediaPlayer) |
|
Output
Audio Analogue |
1
x 3,5 mm jack |
|
Input
Detect |
Custom;
First; Last |
|
SENSORS |
|
|
Ambient
Light Sensor |
Integrated,
triggered actions programmable |
|
Temperature
Sensor |
Integrated,
3 sensors, triggered actions programmable |
|
ELECTRICAL |
|
|
Power
Consumption Eco/max. [W] |
40
shipping |
|
Power
Savings Mode [W] |
<
0.5; < 2 (Networked Standby) |
|
Power
Management |
VESA
DPMS |
|
Power
Supply |
100-240
V AC; 50/60 Hz; internal |
|
ENVIRONMENTAL
CONDITIONS |
|
|
Operating
Temperature [C] |
+0
to +40 |
|
Operating
Humidity [%] |
20
to 80 |
|
Storage
Humidity [%] |
10
to 90 |
|
Storage
Temperature [C] |
-20
to 60 |
|
MECHANICAL |
|
|
Dimensions
(W x H x D) [mm] |
726.5
x 425.4 x 66.5 |
|
Weight
[kg] |
6.3 |
|
Bezel
Width [mm] |
11.8
(top); 11.9 (left and right); 17.2 (bottom) |
|
VESA
Mounting [mm] |
100
x 100 (FDMI); 4 holes; M4 |
|
Ingress
Protection |
IP5x
(front); IP2x (back) |
|
Packaging
Dimensions (W x H x D) [mm] |
870
x 527 x 160 |
|
Packaging
Weight [kg] |
9.8 |
|
Colour
Bezel |
Pantone
426M (black) |
|
Material |
Metal |
|
MEDIAPLAYER |
|
|
Supported
File Storage / File System |
USB
2.0 / FAT16, FAT32 |
|
Supported
Image Formats |
JPG
(baseline, progressive, RGB, CMYK); max. resolution 15360 x
8640 |
|
Supported
Video Formats |
MPG
(MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265,
max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res
3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media
Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10
Pro) |
|
Supported
Audio Formats |
MP3
(MP3); max. bit-rate 320 kBit/s |
|
AVAILABLE
OPTIONS |
|
|
Accessories |
Feet
(ST-32M); Presence Sensor (KT-RC3); Wall mount (PDW T
XS) |
|
External
Computing |
OPS/SDM
standalone adapter to integrate any OPS/SDM computing or interface
module |
|
GREEN
FEATURES |
|
|
Energy
Efficiency |
Energy
consumption: 41 kWh/1000 h; Energy efficiency class: G; LED
backlight |
|
Ecological
Standards |
EnergyStar
8.0 |
|
ADDITIONAL
FEATURES |
|
|
Special
Characteristics |
HDMI
ARC; Powered USB Port (10 W); Removable Logo |
|
Safety
and Ergonomics |
CE;
EAC; RoHS |
|
Pixel
Failure Class |
ISO
9241-307, Class 2 |
|
Audio |
Integrated
Speakers (5 W + 5 W) |
|
Shipping
Content |
2x
AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup
Manual |
|
Warranty |
3
years warranty incl. backlight; additional services available; optional 4.
+ 5. year warranty extension 2 |
|
Operating
Hours |
24-Jul |
|
External
Control |
AMX
NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC;
HTTP Browser; PJLink; Scheduled Timer; SNMP |
|
Remote
Management |
Automated
Email Alerts; NEC NaViSet Administrator 2 |
|
Security |
Disable
HW Buttons; Disable IR Functionality; Emergency
Notification |
|
Resistance
to Fire |
Metal
backcover, plastic material certified acc. to
UL94-5VB |
