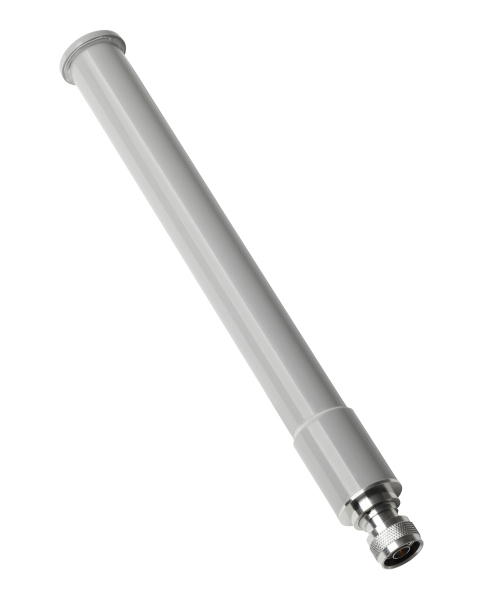

Cisco AIR-ANT2547VG-NS network antenna Omni-directional antenna N-type 7 dBi, 2.4 GHz/5GHz, 50 Ohms, 4-dBi/7-dBi, N-Male, IP66, IP67, Grey, Spare

IMG 1 of 1
Our Price:
$554.45
RRP:
$1,015.15
You Save:
$460.70
or quickly purchase this product
Backorder
Part Number:
531029
(?) Brand:
Cisco Web Site
Manuf No:
AIR-ANT2547VG-NS=
AIRANT2547VGNS=
Shipping Weight:
0.16 KG (Includes product packaging)
Estimate Shipping
Date Added:
1/5/2023
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
AIR-ANT2547VG-NS=, 5330581, AIRANT2547VGNS=, 0889728418331

Cisco AIR-ANT2547VG-NS network antenna Omni-directional antenna N-type 7 dBi

Manufacturer: Cisco
Category: Networking
Sub-Category: Network Antennas
SKU: AIR-ANT2547VG-NS=
EAN: 0889728418331

Description

The Cisco AIR-ANT2547VG-NS is a self-identifying antenna having circuitry that enables Cisco access points (APs) to self-identify the antenna. This antenna has an in-built EEPROM that the APs read and automatically configure the antenna type and the gain in the wireless controller.

Specifications

Performance
Bandwidth note2400 - 2483 , 5150 - 5875 MHz
Antenna gain level (max)7 dBi
Frequency band2.4/5 GHz
Impedance50 Ω
Horizontal beam width (5 GHz)14°
Horizontal beam width (2.4 GHz)30°
Gain4 / 7 dBi
Antenna gain (5 GHz)7 dBi
Antenna gain (2.4 GHz)4 dBi
Features
WaterproofYes
Survival wind speed265 km/h
Protection featuresDust resistant, Splash proof, Water resistant
International Protection (IP) codeIP67
Antenna gain level (max)7 dBi
Connector genderMale
Frequency band2.4/5 GHz
Antenna typeOmni-directional antenna
Voltage Standing Wave Ratio (VSWR)2:1
PurposeOutdoor
Impedance50 Ω
Horizontal beam width (5 GHz)14°
Horizontal beam width (2.4 GHz)30°
Gain4 / 7 dBi
Antenna gain (5 GHz)7 dBi
Antenna gain (2.4 GHz)4 dBi
Antenna connector typeN-type
Product colourGrey
Technical details
Harmonized System (HS) code85177100
Operational conditions
Operating temperature (T-T)-40 - 85 °C
Weight & dimensions
Weight170 g
Height282 mm
Diameter3.17 cm
Packaging content
ManualYes
Quantity per pack1 pc(s)
Logistics data
Quantity per pack1 pc(s)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
