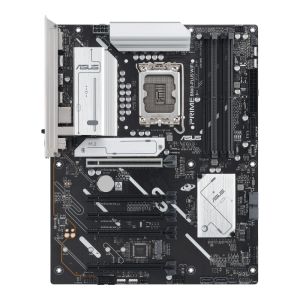

ASUS PRIME B860-PLUS WIFI-CSM MB B860, 4x DDR5, 1x PCI-E 5.0 x16, 3x M.2, 4x SATA3, WiFi

Our Price:

$418.90

Qty:

Add To Cart

or quickly purchase this product

Buy Now

Backorder

Part Number:

553441

(?) Brand:

ASUS Web Site

Manuf No:

90MB1K50-M0UAYC
90MB1K50M0UAYC

Shipping Weight:

1.2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

Enter email address to be notified when this item is available again

Join waiting list

All stock codes associated to this product

90MB1K50-M0UAYC, 90MB1K50M0UAYC, PRIMEB860PLUSWIFICSM, PRIME-B860-PLUS-WIFI-CSM

Prime B860-PLUS WIFI-CSM

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
Chipset	Intel B860 Chipset
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
I/O Connectors	1 x USB 20Gbps port (1 x USB Type-C), 2 x USB 10Gbps ports (2 x Type-A), 1 x USB 5Gbps port (1 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks
Integrated CPU Graphics	1 x DisplayPort, 1 x HDMI port
LAN	1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
PCI Slots	Intel Core Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot (PCIEX16(G5)); Intel B860 Chipset: 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode), 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)
Processor Support	Support Intel Core Ultra Processors (Series 2)
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
RAM Type/Bus/Max	4 x DIMM slots, max. 256GB, DDR5; Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; DIMM Fit; Supports Intel Extreme Memory Profile (XMP) memory module; ASUS Enhanced Memory Profile III (AEMP III)
Socket	LGA1851
Storage Interface	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports- Intel Core Ultra Processors (Series 2): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); Intel B860 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Warranty
Weight
Wireless & Bluetooth	Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth v5.3

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
