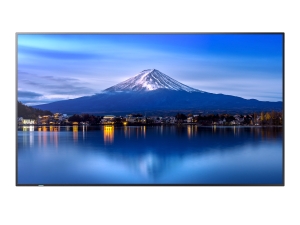

PN-P556 | Sharp /NEC MultiSync P556 Kiosk design 139.7 cm (55") LED

Display
LED backlight	Yes
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	700 cd/m Â²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178 Â°
Viewing angle, vertical	178 Â°
Pixel pitch	0.315 x 0.315 mm
Display diagonal (metric)	138.8 cm
Vertical scan range	23 - 76 Hz
Panel type	IPS
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Horizontal scan range	15 - 135 kHz
Display technology	LED
Native refresh rate	60 Hz
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
Ethernet LAN	Yes
HDMI ports quantity	3
USB port	Yes
Ethernet LAN data rates	100 Mbit/s
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
Wi-Fi	No
DisplayPorts quantity	2
DisplayPorts out	1
DisplayPorts in	1
HDMI input ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
USB Type-C DisplayPort Alternate Mode	Yes
Audio
Built-in speaker(s)	Yes
Design
Product design	Kiosk design
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
Panel mounting interface	300 x 300 mm
Bezel width (top)	1.1 cm
Bezel width (side)	1.1 cm
Bezel width (bottom)	1.39 cm
VESA mounting	Yes
Performance
Purpose	Retail
HDCP	Yes
Web browser	Yes
Wi-Fi	No
Power
Power consumption (typical)	115 W
Power consumption (standby)	0.5 W
Computer system
Computer system	Yes
Processor manufacturer	Intel
Built-in processor	Yes
Weight & dimensions
Display width	1235.6 mm
Display depth	59.5 mm
Display height	709.3 mm
Display weight	20.5 kg
Packaging data
Package width	1390 mm
Package depth	160 mm
Package height	850 mm
Package weight	27 kg
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60  Â°C
Storage relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
USB connector type	USB Type-A, USB Type-C
Panel type	IPS
LED backlighting type	Edge-LED
DisplayPorts out	1
DisplayPorts in	1
Sustainability certificates	ENERGY STAR
Safety warning	CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA
Other features
USB connector type	USB Type-A, USB Type-C
Wi-Fi	No
Panel type	IPS
DisplayPorts out	1
DisplayPorts in	1
Display technology	LED
Bezel width (top)	1.1 cm
Bezel width (side)	1.1 cm
Bezel width (bottom)	1.39 cm

---

When imaging precision cannot be compromised

When imaging precision and 24/7 operational reliability cannot be compromised, the 6th generation of MultiSync Â® P series presents best-in-class performance with an advanced feature set for mission-critical applications

Unparalleled clarity of detail and colour accuracy is achieved with 8K signal processing, wide colour gamut and the integrated SpectraView Â® engine controlling all visual parameters. Even in bright ambient light conditions, high brightness levels of 700 cd/m Â² combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring slot-in technology, choose scalable computing power with Raspberry Pi Compute Module or the more powerful Intel Â® Smart Display Modules (Intel Â®SDM) for tailor-made signage solutions.

For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the Sharp P Series is trusted for safety and long-life, fit-for-purpose performance.
