| Performance |
|---|
| Number of languages | 11 |
| Languages support | Multi |

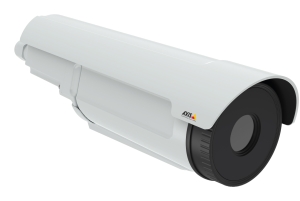

| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Design |
|---|
| Form factor | Bullet |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium |
| Camera |
|---|
| Field of view (FOV) angle | 55° |
| Image sensor |
|---|
| Sensor type | Microbolometer |
| Lens system |
|---|
| Fixed focal length | 7 mm |
| Video |
|---|
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Image stabilizer | Yes |
| Maximum resolution | 384 x 288 pixels |
| Video compression formats | H.264, M-JPEG, MPEG4 |
| Frame rate | 8.3 fps |
| Audio |
|---|
| Built-in microphone | No |
| Audio formats supported | AAC, ADPCM, G.711, PCM |
| Audio detection | Yes |
| Network |
|---|
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Supported network protocols | IPv4/v6, HTTP, HTTPS b, SSL/TLS b, QoS 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP T M, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH |
| Storage |
|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 256 MB |
| Ports & interfaces |
|---|
| Microphone in | Yes |
| Interface | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Motion sensor | Yes |
| Video motion detection | Yes |
| Temperature sensor | Yes |
| Security algorithms | 802.1x RADIUS |
| HTTPS encryption | Yes |
| Power |
|---|
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6.6 W |
| Power consumption (max) | 13 W |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions |
|---|
| Weight | 2 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Terminal block included | Yes |
| User guide | Yes |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Manual | Yes |
| Bundled software | AXIS Camera Companion, AXIS Camera Station |
| Other features |
|---|
| Video compression formats | H.264, M-JPEG, MPEG4 |
