All stock codes associated to this product
IES210GPP, NWTL-IES210GPP, NWTLIES210GPP, 1210002602112
| Management features |
|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Cloud-managed | Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Network |
|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission |
|---|
| Jumbo frames | 15000 |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 4000 MB |
| Forwarding rate | 14.88 Mpps |
| Number of VLANs | 4000 |
| Security |
|---|
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features |
|---|
| Multicast support | Yes |
| Design |
|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Form factor | DIN rail |
| LED indicators | Yes |
| Power |
|---|
| DC input voltage | 12 - 57 V |
| Power source | DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 6 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Virtual LAN features |
|---|
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Weight & dimensions |
|---|
| Width | 155 mm |
| Depth | 120 mm |
| Height | 60 mm |
| Performance |
|---|
| Packet buffer memory | 4000 MB |
| Auto-negotiation | Yes |
| Other features |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

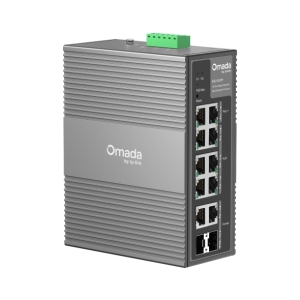

Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ SwitchIndustrial-Grade Protection Built for Harsh Environments- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40 °C to 75 °C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting
