All stock codes associated to this product
USW-Pro-HD-24, USWProHD24, NHUUSWPROHD24, NHU-USW-PRO-HD-24, 810084696637

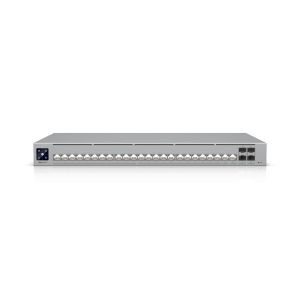

Pro HD 24
Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
24 + 4 SFP+
Up to 10 Gbps Downlink Speed
10 Gbps Uplink Speed
Pro A/V Support
UniFi Power Backup ready
High-Performance Layer 3 Switching
High-performance switching with 2.5 GbE, and Etherlighting to make cable management a dream. Ideal for 6 GHz capable WiFi access points.

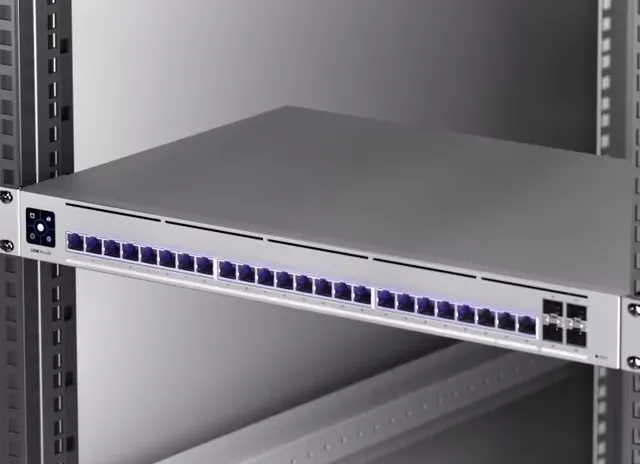

Introducing Etherlighting
Pair with UniFi Etherlighting Patch Cables for optimal brightness.
High Performance Switching Capacity

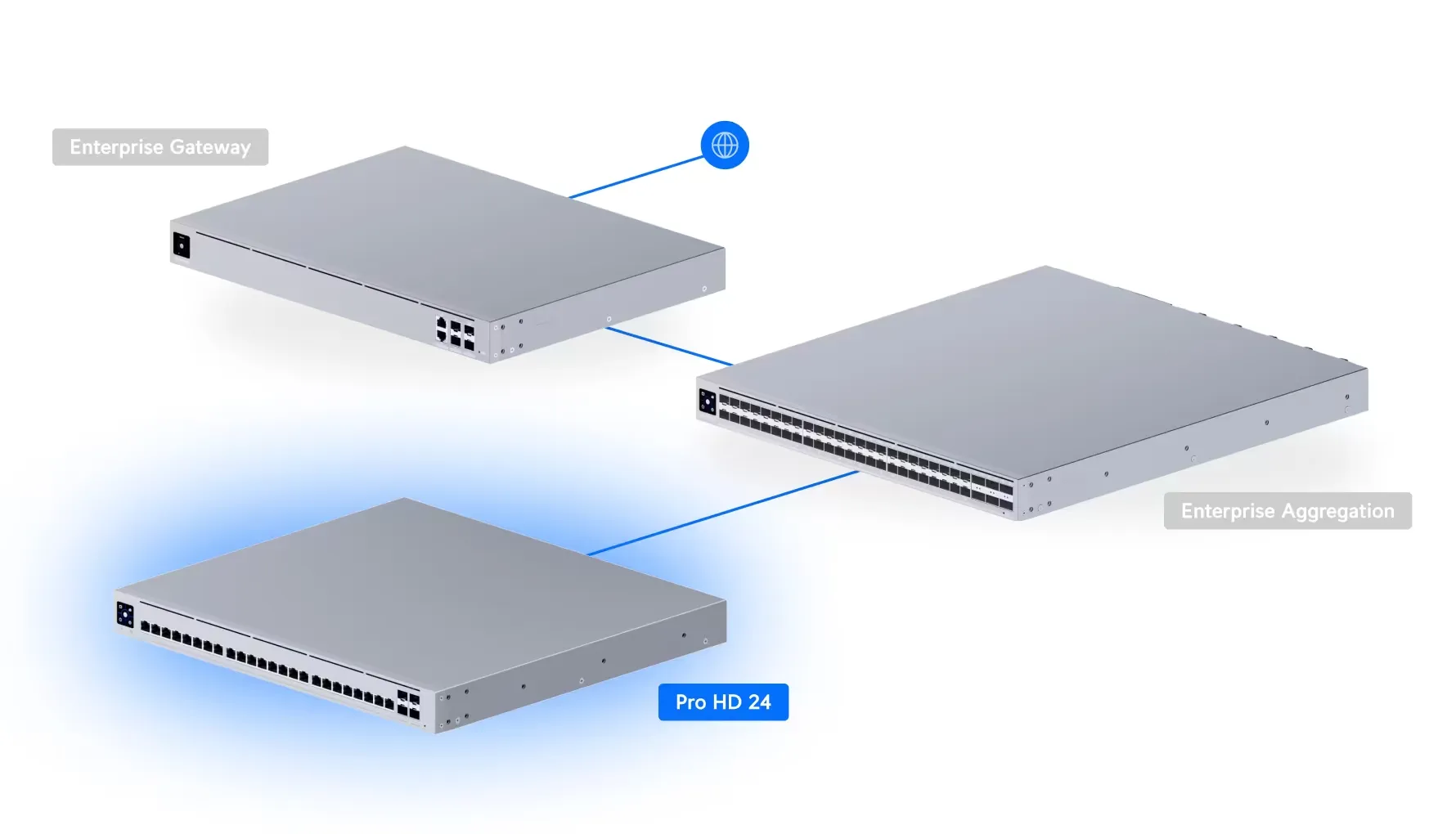

The UniFi Switch Pro HD 24 is a professional-grade, Layer 3 Etherlighting switch designed for high-throughput environments. It offers advanced routing capabilities to efficiently manage complex network traffic.
Enhanced Network Management
Managed through the UniFi Network Controller, the UniFi Switch Pro HD 24 offers centralised configuration, monitoring, and management.
Durable Construction

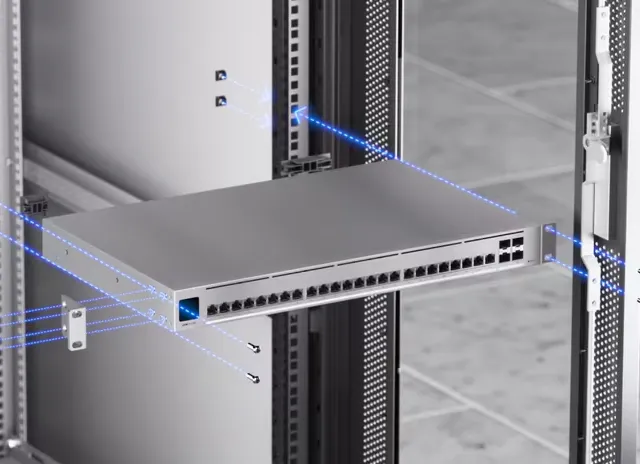

Built with an SGCC steel enclosure, the UniFi Switch Pro HD 24 supports rack depths ranging from 400 to 1200 mm, making it suitable for various rackmount installations.
Overview
Dimensions
442 x 285 x 44 mm
(17.4 x 11.2 x 1.7")
Port Layout
2.5 GbE RJ45:
22 (2.5G/1G/100M/10M)
10 GbE RJ45:
2 (10G/5G/2.5G/1G/100M)
10G SFP+:
4 (10G/1G)
Redundancy
DC Power Backup
* With UniFi RPS
Form Factor
Rack mount (1U)
Performance
Switching Capacity
230 Gbps
Total Non-Blocking Throughput
115 Gbps
Forwarding Rate
171.12 Mpps
MAC Address Table Size
32,000
L3 Table Size
ARP Entries: 12,000
IPv4 Routes: 12,000
Layer 3 Features
DHCP Server (Local Networks)
Yes
Inter-VLAN Routing (Local Networks)
Yes
Static Routing (Local Networks)
Yes
Layer 2 Features
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes
MAC-Based ACLs & Device Isolation
Yes
DHCP Snooping & Guarding
Yes
Multicast & Broadcast Rate Limiting
Yes
IP-Based ACLs & Network Isolation
Yes
MAC-Based Port Restriction
Yes
Hardware
Max. Power Consumption
60W
Power Method
(1) Universal input, 100240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100240V AC
Heat Dissipation (Excluding PoE Output)
102.36 BTU/hr
Weight
Without mounting brackets: 4.2 kg (9.2 lb)
With mounting brackets: 4.3 kg (9.4 lb)
Enclosure Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.747.2")
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 40 C (23 to 104 F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting
Ethernet: Yes
SFP+: Yes
Certifications
CE, FCC, IC
Software
Application Requirements
UniFi Network
Version 9.0.114 and later
