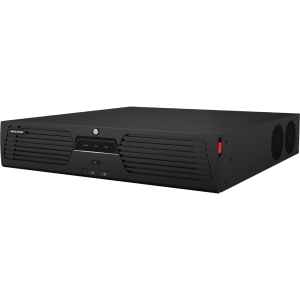

Hikvision Digital Technology Hikvision DS-9632NI-M8 network video recorder 2U Black, 32-ch, 2U, 4K, RAID 0,1,5,6,10, USB, SATA x 8, eSATA x 1, 320 Mbps/400 Mbps

IMG 1 of 1
Our Price:
$2,937.30
RRP:
$3,135.00
You Save:
$197.70
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
554512
(?) Brand:
Hikvision Digital Technology
Manuf No:
DS-9632NI-M8-NO HDD
DS9632NIM8NO HDD
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
DS9632NIM8NO HDD, DS-9632NI-M8-NO HDD, 30H9632NIM8NHD, 30H-9632NI-M8-NHD, DS9632NIM8, DS-9632NI-M8, 6942160447223

Hikvision DS-9632NI-M8 network video recorder 2U Black

Manufacturer: Hikvision
Category: Other
Sub-Category: Network Video Recorders (NVR)
SKU: DS-9632NI-M8-NO HDD
EAN: 6942160447223 6931847183493 0842571146240

Description

The Ultra Series is designed for extensive projects that require a large number of cameras, as well as a rack-mounted installation for back-end NVRs. The optimized H.265+ compression codec provides maximally efficient bandwidth and storage usage.

Specifications

Performance
Ethernet LAN data rates10,100,1000 Mbit/s
Supported resolutions8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video input channels32 channels
Alarm input channels16
Alarm output channels9
Maximum resolution7680 x 4320 pixels
Video codecsH.265+/H.265/H.264+/H.264
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPâ„¢, HTTP, HTTPS
Audio codecsG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Number of simultaneously playbacked channels16 channels
Output bandwidth400 Mbit/s
Input bandwidth320 Mbit/s
Hard drive
Maximum storage capacity14 TB
HDD interfaceSATA, eSATA
RAID supportYes
RAID levels0, 1, 5, 6, 10
Storage
Maximum storage capacity14 TB
HDD interfaceSATA, eSATA
RAID supportYes
RAID levels0, 1, 5, 6, 10
Ports & interfaces
Audio output2-way
Ethernet LAN data rates10,100,1000 Mbit/s
Audio RCA outputs2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
eSATA ports quantity1
Internal SATA ports quantity8
HDMI ports quantity2
Ethernet LAN (RJ-45) ports2
RAID levels0, 1, 5, 6, 10
VGA (D-Sub) output ports2
HDMI outputYes
BNC audio outputYes
USB 2.0 ports quantity2
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPâ„¢, HTTP, HTTPS
RS-485 ports1
RS-232 interfaceYes
eSATAYes
Features
Rack capacity2U
Product colourBlack
Brand compatibilityHikvision Digital Technology
Rack mountingYes
CertificationCE, FCC Part 15 Subpart B, ANSI C63.4-2014 EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Power
Power consumption (typical)50 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Operational conditions
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Weight & dimensions
Width445 mm
Depth465 mm
Height92 mm
Weight10 kg

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base
