All stock codes associated to this product
AR3305, UPAAR3305, UPA-AR3305

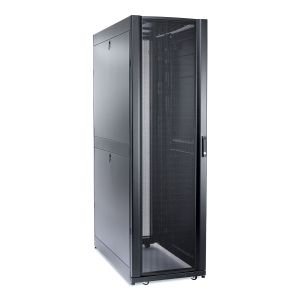

Ideal for medium to high-density environments
Easily fit through standard doorways
45U height allows for an additional 3U of rack mounting space
Plenty of room for vertically mounting Rack PDUs and cable management
Wide rack design provides space for passing cabling from front-to-back
Description
An industry standard server rack ready for medium to high density environments with traditional network closet 2&4 post rack height and 3U extra space. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management.
Specifications
Overview| Presentation | An industry-standard server rack ready for medium to high-density environments with traditional network closet 2&4 post rack height and 3U extra space. A deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management. |
|---|
| Lead time | Usually in Stock |
|---|
Main| Product or component type | Rack enclosure |
|---|
| Number of rack unit | 45U |
|---|
| Provided equipment | Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters
Side panels |
|---|
Physical| Height | 2124 mm |
|---|
| Width | 600 mm |
|---|
| Depth | 1200 mm |
|---|
| Net weight | 141 kg |
|---|
| Colour | Black |
|---|
| Mounting preference | No preference |
|---|
| Mounting mode | Not rack-mountable |
|---|
| Maximum mounting depth | 1048 mm |
|---|
| Minimum mounting depth | 190.5 mm |
|---|
| Rack width | 19" |
|---|
| Marking | 14 gauge EIA mounting rail
16 gauge front door
16 gauge post
18 gauge rear door
18 gauge roof
18 gauge side panels |
|---|
| Permanent permissible load | 1020.6 kg dynamic
1701.0 kg static |
|---|
Conformance| Standards | UL 2416
UL 60950-1
EIA-310E |
|---|
Packing Units| Unit Type of Package 1 | PCE |
|---|
| Number of Units in Package 1 | 1 |
|---|
| Package 1 Height | 224 cm |
|---|
| Package 1 Width | 133.4 cm |
|---|
| Package 1 Length | 74.6 cm |
|---|
| Package 1 Weight | 158.4 kg |
|---|
Contractual warranty| Warranty (in months) | 60 |
|---|
