Please be aware that due to the large size of many products in this cateogry (Rack Cabinets in particular) additional freight may be required after completing your order. This covers various aspects of delivery - tailgates, if you do not have a forklift attract an additional charge. Or it can simply be that our freight system for extremely large products does not cope. Where possible we do absorb these additional fees but it varies order to order.
All stock codes associated to this product
ER8202, UPAER8202, UPA-ER8202
Easy to choose, install and accessorize
APC quality, reliability and solution compatibility
Standard 5 year factory warranty for peace of mind
Ready for High Density Cable management
suitable for IT server, network, storage, and converged IT
Description

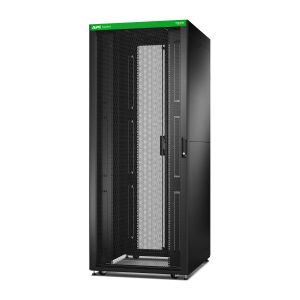

Easy Rack ER8202 is EIA-310 standard pre-assembled IT enclosure with essential features for fast, easy deployment in networking applications. ER8202 is an ideal choice for SMB's networking applications with its 42U height, ventilated doors with 81% perforation and load ratings static 1200kg & dynamic 600kg. This rack comes in 800mm Width & 1000mm Depth, with Roof, keys, levelling feet, casters, side panels, mounting hardware, PDU mounting brackets and without bottom. With UL 2146 certification, this enclosure features integrated electrical grounding, ensuring the roof, front and rear doors are grounded to the frame. This rack cabinet ships fully assembled for faster installation or choose to ship unassembled for storage or transit in tight spaces and prefer to assemble onsite. Easy Rack is designed with multi functional roof for managing cables & proper airflow and have rear accesory brackets for toolless installations. This has integrated vertical 1U mounting spaces adjacent the enclosures standard EIA-310 equipment mounting u-spaces that can be removed and replaced with 1U accessories. This is Wide, Deep and Tall Universal IT enclosure with increased enclosure width for more cable management options in denser server and networking applications. Easy Racks are easy to choose, install and accessorize with cooling, cable management & PDUs, including recently launched feature-rich, Easy Rack PDU series.
Specifications
Overview| Lead time | Usually in Stock |
|---|
Main| Product or component type | Rack enclosure |
|---|
| Number of rack unit | 42U |
|---|
| Provided equipment | Baying hardware
Key(s)
Keyed-alike doors and side panels
Leveling feet
Mounting hardware
Pre-installed casters |
|---|
Physical| Height | 1911 mm |
|---|
| Width | 800 mm |
|---|
| Depth | 1000 mm |
|---|
| Net weight | 128.4 kg |
|---|
| Colour | Black |
|---|
| Mounting mode | Not rack-mountable |
|---|
| Maximum mounting depth | 838.2 mm |
|---|
| Minimum mounting depth | 241.6 mm |
|---|
| Rack width | 19" |
|---|
| Marking | 18 gauge front door
19 gauge rear door
16 gauge post
11 gauge EIA mounting rail |
|---|
| Permanent permissible load | 1199.8 kg static
599.6 kg dynamic |
|---|
Conformance| Standards | UL 2416
UL 60950-1
EIA-310E |
|---|
Packing Units| Unit Type of Package 1 | PCE |
|---|
| Number of Units in Package 1 | 1 |
|---|
| Package 1 Height | 212 cm |
|---|
| Package 1 Width | 105 cm |
|---|
| Package 1 Length | 85 cm |
|---|
| Package 1 Weight | 137 kg |
|---|
| Pallet layers | 1 |
|---|
Contractual warranty| Warranty (in months) | 60 |
|---|
