All stock codes associated to this product
CC-9011319-WW, CC9011319WW, CACAIR5400RSRARGBWH, CAC-AIR5400RS-R-ARGB-WH
DESCRIPTION

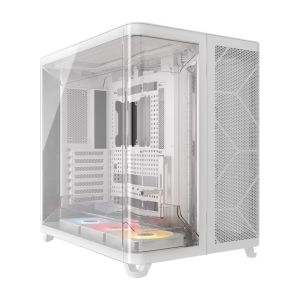

CURVED GLASS MID-TOWER PC CASE
CORSAIR AIR 5400
TRIPLE-CHAMBER CHAMPION
THREE IS BETTER THAN TWO
TRIPLE-CHAMBER DESIGN
A unique triple-chamber design was created to isolate hot components for effective cooling and maximum performance at all times. Separate chambers for the CPU, GPU/motherboard, and PSU, cables, and storage allow for exceptional thermals and an easy PC building process.
SUPERIOR ENGINEERING
UNRIVALED PERFORMANCE
Reimagined from the ground up by our world-class engineers, the AIR 5400 is a masterclass in precision, performance, and purposeful design.

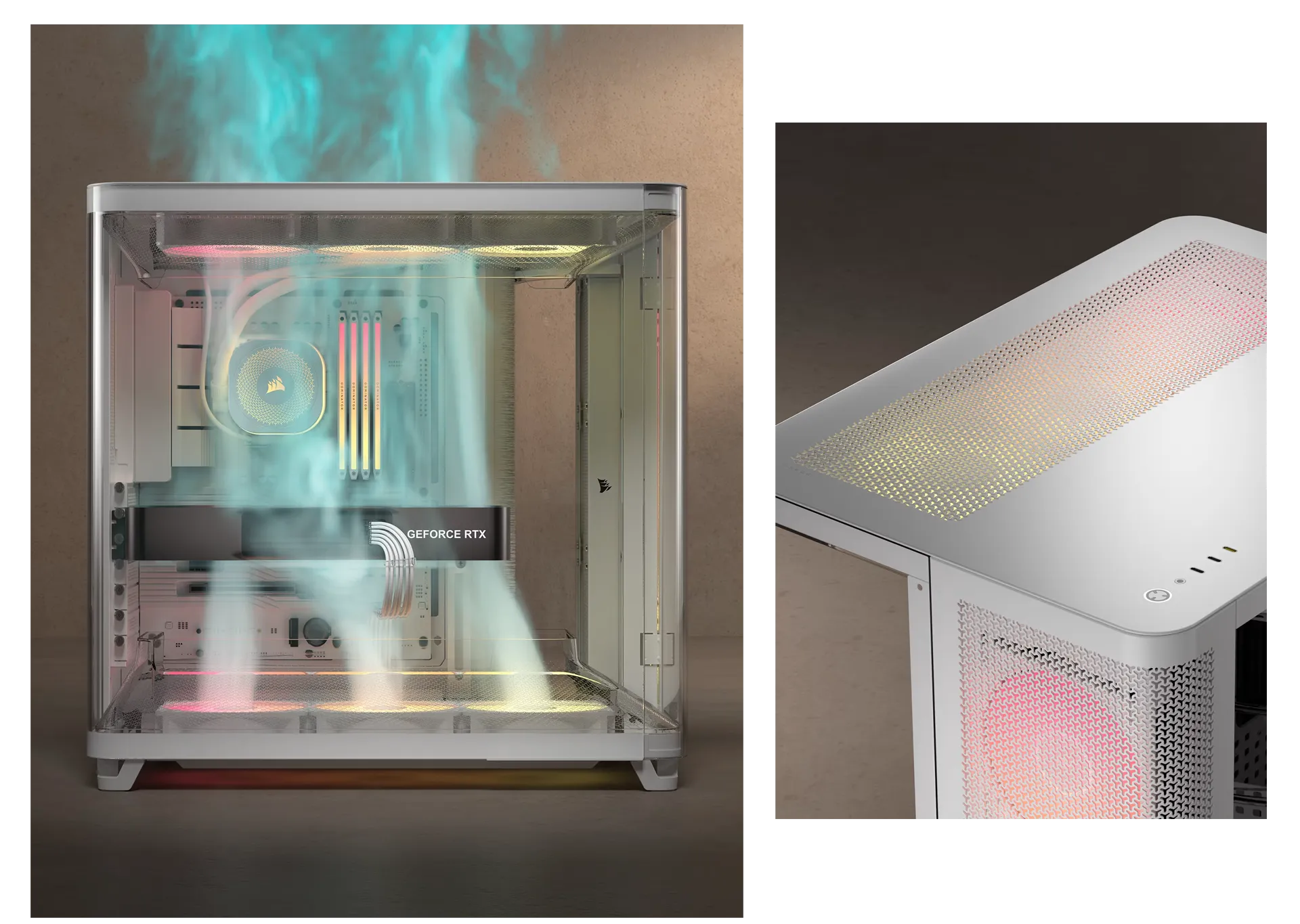

BIG GPUs ARE WELCOME HERE
POWERFUL GPU AIRFLOW
The roomy interior was designed specifically for the most powerful GPUs with plenty of room to breathe and dual airflow ducts to channel cool air through the GPU for maximum performance.
DONT BLOCK THE VIEW
REVERSE-ROTOR RS-R ARGB FANS
Preinstalled reverse-rotor RS-R ARGB 120mm fans in the bottom of the chassis allow for powerful, low-noise cooling with glorious, unobstructed RGB lighting.
The fans can be daisy chained together and plugged into a motherboards PWM and +5V RGB connectors for easy lighting and fan speed control.
WHAT A VIEW
DUAL CURVED GLASS FRENCH DOOR PANELS
Two glass panels connect in the corner of the chassis and open outwards with hinges that disappear for a seamless look and easy access to your hardware.
HASSLE FREE
LOADED WITH FEATURES

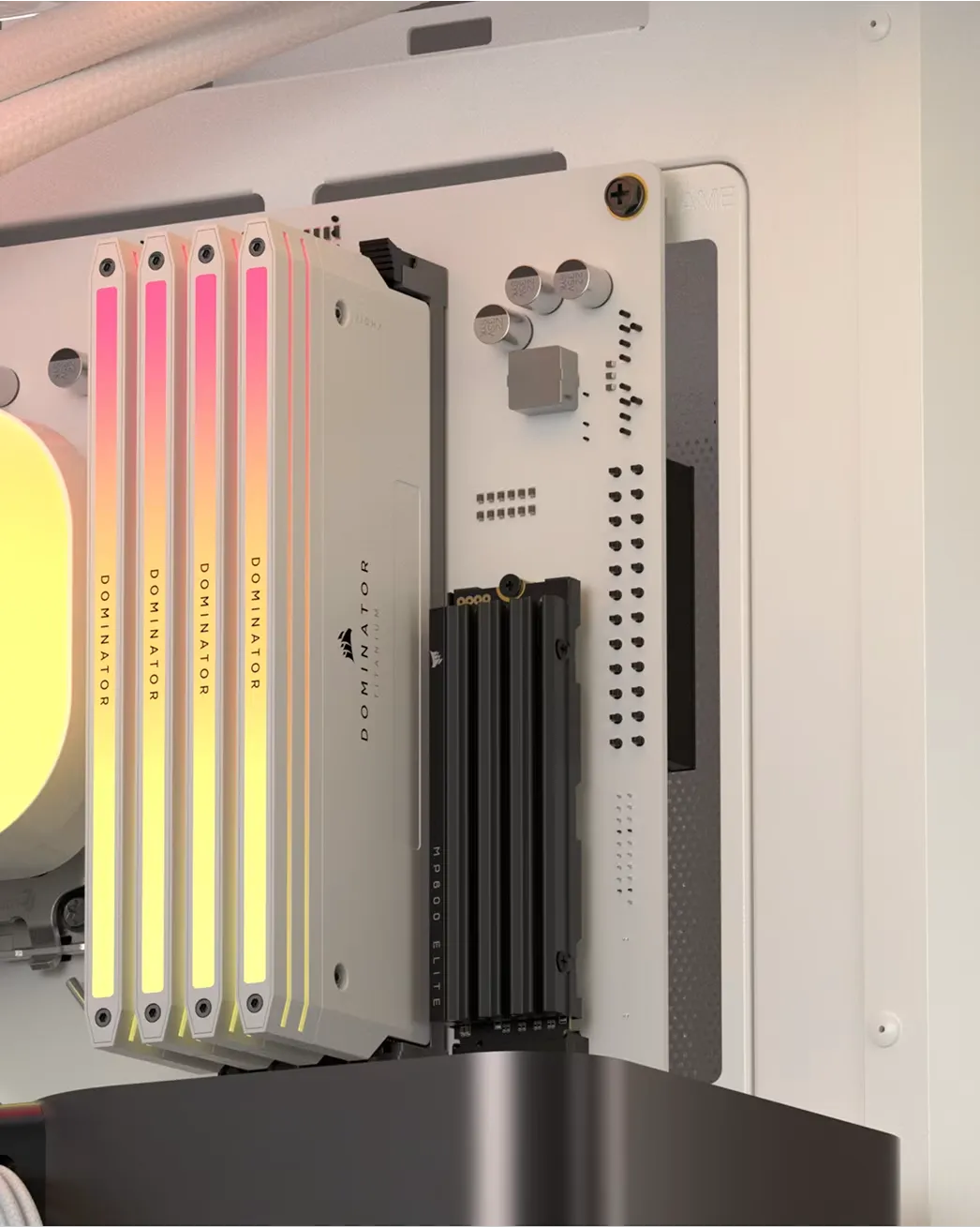

HIDE YOUR CABLES
The AIR 5400 is compatible with reverse-connector motherboards from ASUS, MSI, and GIGABYTE for super-clean builds with no visible cables.

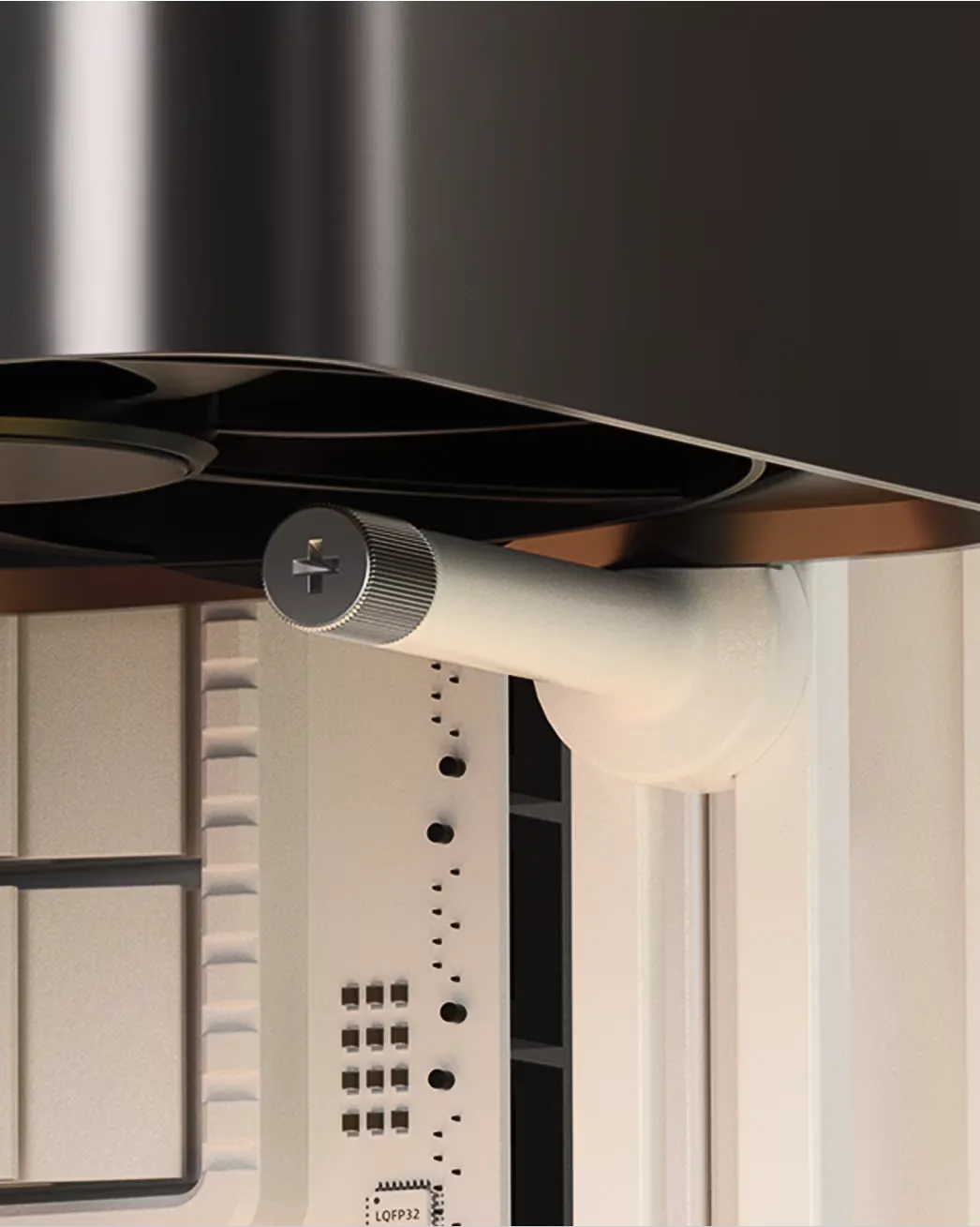

BUILT-IN GPU ANTI-SAG
The included Anti-sag Stabilisation Arm is adjustable to fit a wide range of GPUs and is hidden when a GPU is installed for an even cleaner build.

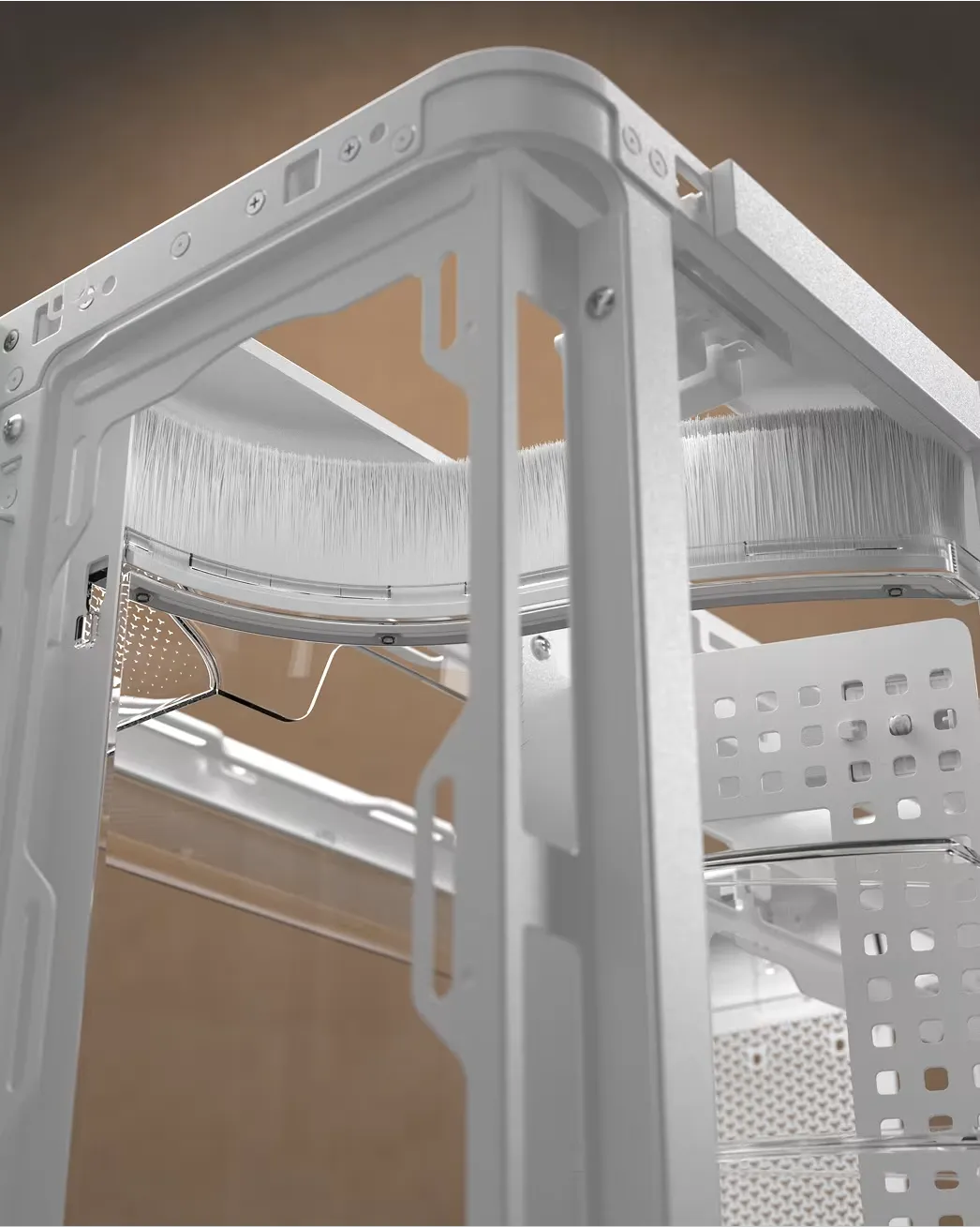

EASY CABLE MANAGEMENT
Nylon brushes between the chambers allow for easy cable routing without any gaps to spoil the aesthetic.
ADVANCED CABLE MANAGEMENT
RAPIDROUTE 2.0
Cable management has never been easier with RapidRoute 2.0. It features a new pegboard motherboard tray so you can easily move and rotate cable ties wherever you like for a tidy build.

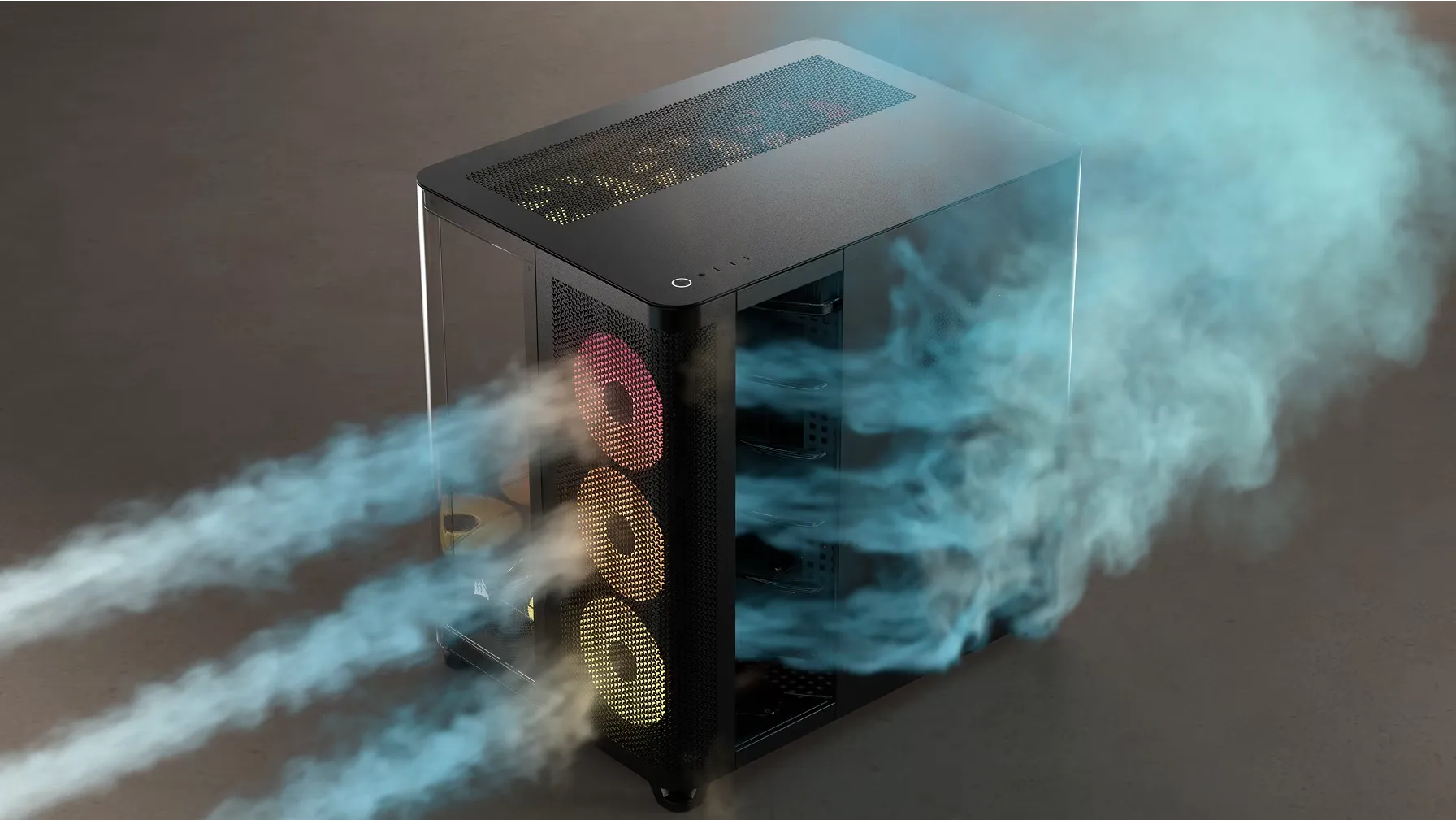

WIDE COOLING FLEXIBILITY
The AIR 5400 includes 3x 120mm reverse-rotor intake fans in the bottom, with room for 7x more in the CPU chamber, roof, and rear exhaust for highly effective airflow in both chambers.
DIMENSIONS
FAN CAPACITY
RADIATOR CAPACITY
Ample room for powerful builds and designed for a front 360mm AIO liquid CPU cooler.

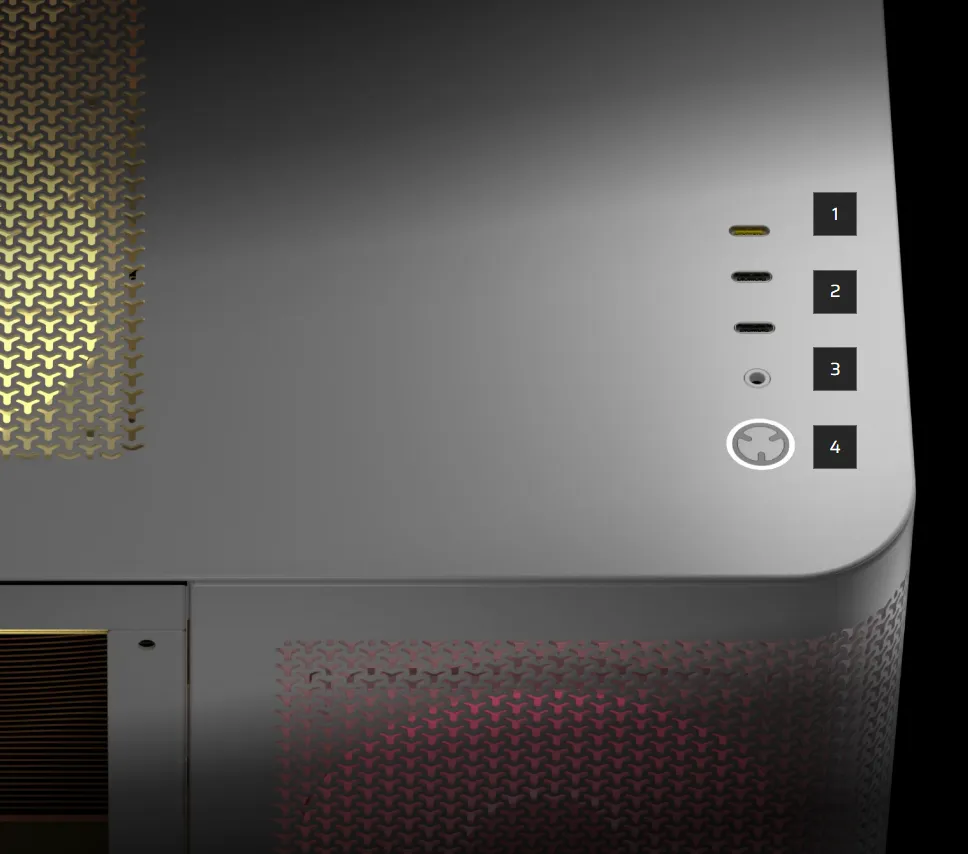

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C port, 2x USB 3.2 Gen 1 Type-C ports, and a combination audio/microphone jack.
1
USB 3.2 Gen 2 Type-C Port
2
2x USB 3.2 Gen 1 Type-C Ports
3
Headphone / Mic Combo Jack
TWO-YEAR WARRANTY
WORLD-CLASS SUPPORT
CORSAIR's award-winning service means you can enjoy your gear worry-free.
Specifications
Case Supported
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Material
Steel, Tempered Glass
Radiator Compatibility
120mm, 240mm, 360mm
Case Window
Tempered Glass
Compatible Liquid Coolers
H60, H100, H115, H150, NAUTILUS, TITAN
Internal 3.5" Drive Bays
1
Internal 2.5" Drive Bays
2
Maximum CPU Cooler Height
180mm
Case Front IO
(1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out
Case Expansion Slots
7 Horizontal
Radiator Support - Top
360mm
Radiator Support - Front
360mm, 240mm
Radiator Support - Bottom
360mm, 240mm
Radiator Support - Side
None
Radiator Support - Rear
120mm
Fan Support - Top
3x 120mm
Fan Support - Front
3x 120mm
Fan Support - Bottom
3x 120mm
Fan Support - Rear
1x 120mm
Front IO Motherboard Connections
1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2x2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support
Yes
Left Side Panel
Tempered Glass
Vertical Mount Support
Unsupported
Box Contents
AIR 5400 Case
3x RS120-R ARGB, White (Pre-Installed)
Accessory Box
Screws & Hardware for Installation
Magnetic Mylar Shroud
