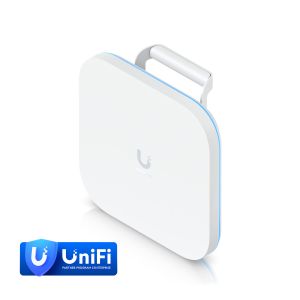

Ubiquiti E7 Campus,Enterprise-grade Indoor/outdoor Access Point,10-stream‎ ‎‎WiFi 7 Performance,PRISM Active RF Filtering Technology *Deal Reg Only*

IMG 1 of 4
Our Price:
$2,310.00
RRP:
$2,312.20
You Save:
$2.20
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
557721
(?) Brand:
Ubiquiti
Manuf No:
E7-Campus
E7Campus
Shipping Weight:
5.1 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
E7-Campus, E7Campus, NHUE7CAMPUS, NHU-E7-CAMPUS

Description: Enterprise-grade indoor/outdoor access point with 10-stream WiFi 7 performance, PRISM active RF filtering technology, and integrated directional antennas.

Features:
WiFi 7
10 spatial streams
Real-time spectral analysis for enhanced channel selection
High selectivity PRISM RF filtering technology
Dedicated spectral analyzer radio
Directional high gain antenna array
465 m (5,000 ft) coverage
1,000+ connected devices
(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy
Versatile articulating wall/pole mount for precise position (included), VESA 100x100 compatibility
Powered using PoE++





Dimensions
Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8") Articulating mount: 104 x 149.4 (4.1 x 5.9")
WiFi Standard
WiFi 7
Spatial Streams
10
Coverage Area
465 m (5,000 ft)
Max. Client Count
1000+
Uplink
10 GbE 1 GbE
Mounting
Wall, Pole (Mounts Included) VESA (Optional)
Weatherproofing
IPX6 IP67 with Waterproof Door Kit (Included)
Power Method
PoE++
MIMO
6 GHz
4 x 4 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
11.5 Gbps (BW320)
5 GHz
8.6 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
6 GHz
Directional internal: 12 dBi, 90 x 50
5 GHz
Directional internal: 12 dBi, 100 x 55
2.4 GHz
Directional internal: 9 dBi, 90 x 80
Max. TX Power
6 GHz
30 dBm (36 dBm EIRP)
5 GHz
30 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Zero-Wait DFS
Advanced Radio Management
Real-Time Spectral Analysis
Passpoint (Hotspot 2.0)
Captive Hotspot Portal
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Max. Power Consumption
44W
Supported Voltage Range
42.557V DC
Networking Interface
(1) 10 GbE RJ45 port (1) GbE RJ45 port
PRISM RF Filtering
Weight
Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb)
Wind Loading
164.75 N at 200 km/h (37 lbf at 125 mph)
Pole Mount Diameter
12.5" (2563.5 mm)
Antennas
(1) Internal with directional patterns
Antenna beamwidth
6 GHz
90 x 50
5 GHz
100 x 55
2.4 GHz
90 x 80
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel, aluminum alloy
LEDs
System
R/G/B
NDAA Compliant
Certifications
FCC, IC
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz
Ambient Operating Temperature
-30 to 60 C (-22 to 140 F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 9.0.114 and later
Mobile App
iOS version 10.20.0 and later Android version 10.21.3 and later
