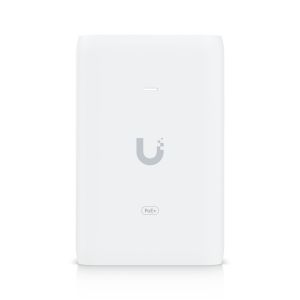

Ubiquiti PoE+ Adapter (30W), Power UniFi PoE+ Devices,Reduce Dependency On PoE Switch Power,Provide A Gigabit LAN Connection

IMG 1 of 4
Our Price:
$45.60
RRP:
$49.50
You Save:
$3.90
or quickly purchase this product
Backorder
Part Number:
557747
(?) Brand:
Ubiquiti
Manuf No:
U-PoE+
UPoE+
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
U-PoE+, UPoE+, NHUUPOE+, NHU-U-POE+
Description:
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Features:
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
Note. Replacement of U-POE-at
Compatibility: UVC-AI-DSLR, UVC-AI-DSLR-LD, UVC-AI-Pro, UVC-AI-Pro-White, UTP-TouchMax, UTP-TouchMax-White, UTP-G3-Touch-Wall, UA-Ultra, U6-IW, UDB-Pro, U6-LR, UVC-G5-PTZ, UVC-G5-PTZ-B
Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight
156 g (5.5 oz)
Output Voltage
48V DC @ 0.65A
Rated Voltage
100240V AC @ 50/60Hz
Gigabit LAN Port
2-pair Powering
Pins 4, 5 (+) and 7, 8 (-)
AC Connector
IEC-320 C6
Clamping Protection
11V Data, 60V power
Data In / PoE
RJ45 Shielded Socket
Input Current
0.75A Max.
Inrush Current
<100A peak at 26C
Efficiency
87%
Switching Frequency
70 kHz Max.
Output Ripple
1% Max.
Line Regulation
3%
Load Regulation
5%
Max. Surge Discharge
1500A (8/20 s) power
Peak Pulse Current
36A (10/1000 s) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70C (-22 to 158 F)
Ambient Operating Temperature
0 to 40 C (32 to 104 F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
Certifications
CE, FCC, IC, UL, CCC

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
