TP-Link Mercusys MS128GP 28-Port Gigabit Rackmount Switch with 24-Port PoE+

IMG 1 of 11
Our Price:
$314.15
or quickly purchase this product
Backorder
Part Number:
557761
(?) Brand:
TP-Link
Manuf No:
MS128GP
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
MS128GP, NWMSMS128GP, NWMS-MS128GP

  • Full Gigabit Ports:24Gigabit PoE+ ports, 2Gigabit uplink ports, and 2Gigabit SFP slots

  • High Power PoE+:Support PoE Power up to 30 W for each PoE port and 295W for all PoE ports.*Working with IEEE 802.3af/at compliant PDs

  • Long-Range up to 250 m:Increases PoE transmission distance to 250 m by Extend Mode**

  • Isolation Mode:One click to divide traffic for specific ports for stability and security

  • Priority Mode:Guarantees the quality of sensitive applications like video monitor

  • PoE Auto Recovery:Automatically reboots your dropped or unresponsive PoE-powered devices

  • Plug and Play:No configuration or central management required

28-Port GigabitRackmount Switch with 24-Port PoE+

MS128GP
295W
PoE Budget
24
PoE+ Ports
2
Gigabit Uplink Ports
2
SFP Slots
PoE AutoRecovery
Long-Rangeup to 250 m
IsolationMode
PriorityPorts
Durable MetalCasing
Plug andPlay

24 PoE+ Ports (295 W Budget) for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 24 PoE+ ports supports a maximum power supply of 30 W. The total 295 W PoE power budget*can be applied in various scenarios, including surveillance, offices, and small businesses, since MS128GP is fully compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

30W
Max onEach Port
295W
Total PowerBudget
Power and Data
Data Only
IP Camera
IP Phone
Access Point
Network Video Recorder
Router
Internet

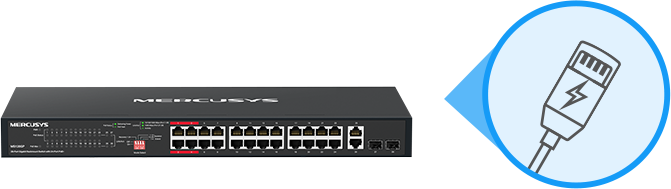

Power over Ethernet: Two Cables in One

  • Traditional Switches

    Power Data

  • MS128GP

    Power + Data

  • No Fuss

    No need for electricians; simplify installation and deployment.

  • Cost-Efficiency

    Getting rid of extra cables and power adapters will save money on infrastructure.

  • Flexibility

    Deployment in complex situations is made possible by more placement possibilities.

  • Power Management

    Improves power usage while intelligently protecting your gadgets from power surges.

  • IEEE 802.3af/at

    PoE ports compliant with the 802.3af/at Powered Devices.

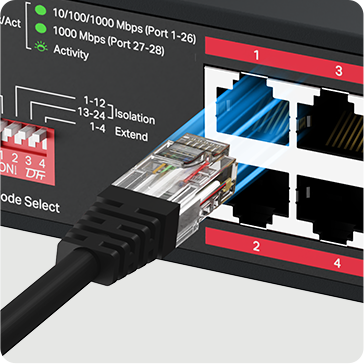

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS128GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

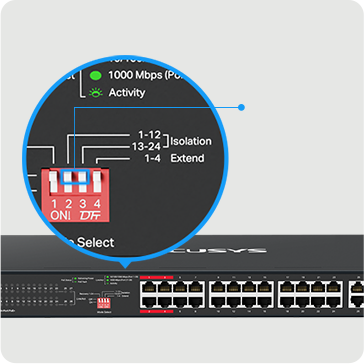

  • Isolation Mode Button

    Traffic Separation

    Isolation Mode easily divides traffic for ports 1-12 & 13-24 to avoid snooping/tampering and isolates broadcast storm for higher security.

  • Port Prioritization

    Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video.

  • IP Camera

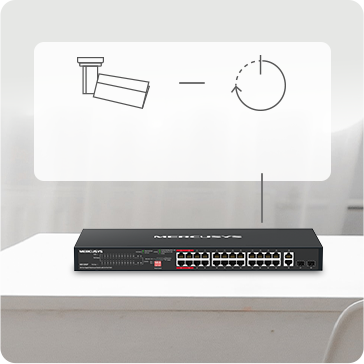

    PoE Auto Recovery

    PoE Auto Recovery

    When a PoE-powered device stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.

  • Plug and Play

    MS128GP offers auto-negotiation and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

Durable and Flexible

MS128GPs durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.

Software
Transfer Method

Store and Forward

Advanced Features

Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode (Ports 1-4) Isolation Mode (Ports 1-12, 13-24) PoE Auto Recovery (Ports 1-24) MAC Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control

Hardware
Dimensions (W X D X H)

17.3 7.1 1.7 in (440 180 44 mm)

PoE Ports

Standard: compatible with 802.3af/at PDs PoE Ports: Ports 124, up to 30 W per port PoE Power Budget: 295W

Interfaces

24 10/100/1000 Mbps PoE+ RJ45 Ports 2 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Slots

Transmission Medium

10BASE-T: 2-pair UTP/STP of Cat. 3 or above (100 m) 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (100 m) 1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (100 m) 1000BASE-X: MMF, SMF

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at

Fan Quantity

2 Fans

Physical Security Lock

Yes

Switching Capacity

56 Gbps

LED

Power Link/Act PoE Status PoE Max

Mac Address Table

8 K

Max Power Consumption

350.14 W (110V/60 Hz @ 25 C, with 295 W PD connected) 336.58 W (220V/50 Hz @ 25 C, with 295 W PD connected)

Max Heat Dissipation

1193.98 BTU/hr (110V/60 Hz @ 25 C, with 295 W PD connected) 1147.74 BTU/hr (220V/50 Hz @ 25 C, with 295 W PD connected)

Others
Certifications

CE, RoHS

Package Contents

MS128GP Power Cord Installation Guide Mounting Brackets and Fittings

Environment

Operating Temperature: -10C to 45C (14F to 113F) Storage Temperature: -40C to 70C (-40F to 158F) Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
